Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel: STX-1700CXP • 23

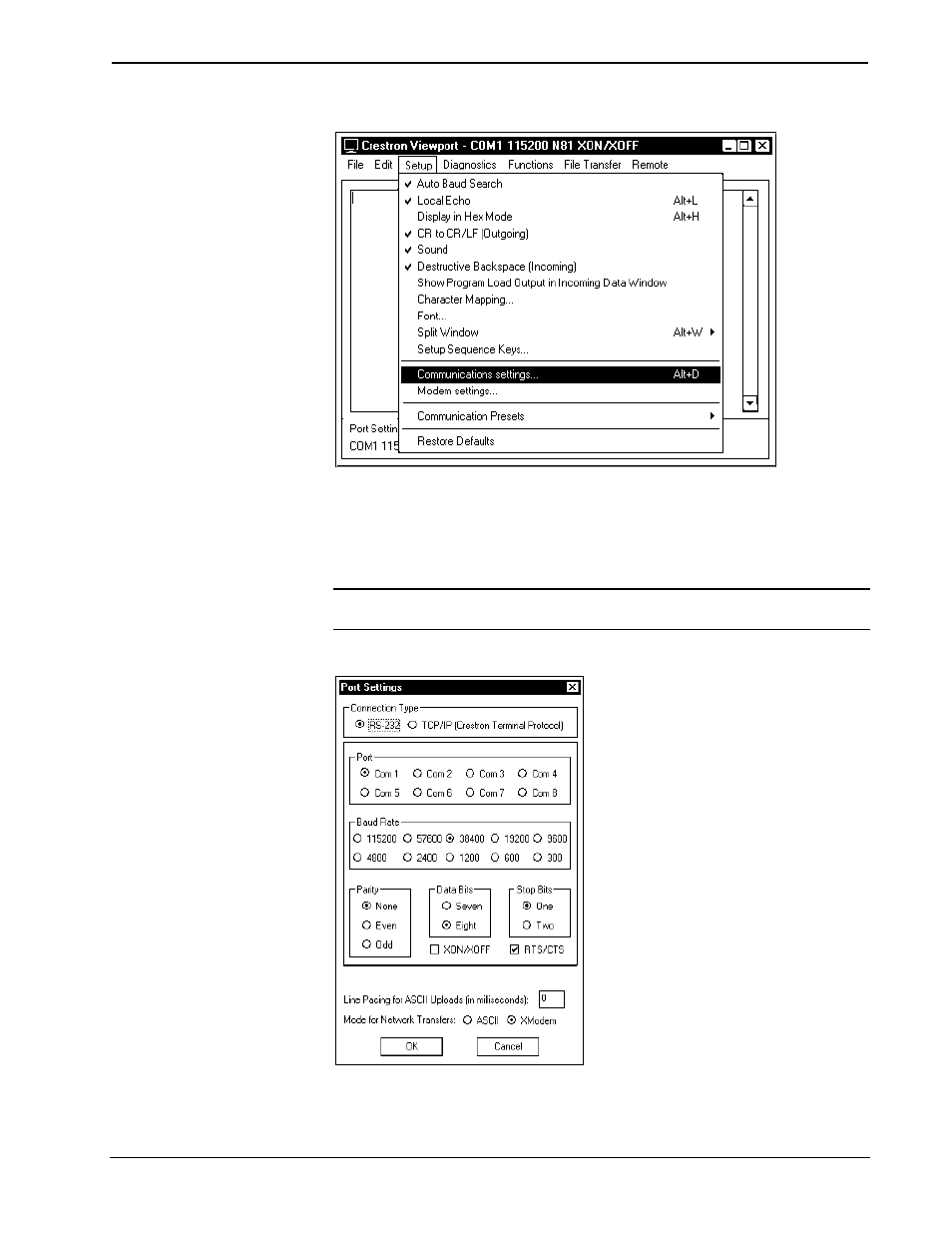

Accessing the “Port Settings” Window
7. Select the RS-232 connection type. Verify the available COM is selected.
Verify that the baud rate is set to 115200 (PRO 2 default), the parity is
None, the data bits is Eight, the stop bits is One, XON/XOFF is not
selected, and RTS/CTS is selected. Click the OK button to save the settings
and close the window.
NOTE: You may need to select a lower baud rate for larger files (38,400 is
recommended). Make sure XModem is selected from Mode for Network Transfers.
“Port Settings” Window
8. Proceed to “Uploading a VT Pro-e Project” on the next page or “Firmware
Upgrade” that begins on page 25 as appropriate.
