Model
Smart 20 Smart 30 Smart 40 Smart 50 Smart 60 Smart 80 Smart 100
Capacity
Gal.
Domestic
22
28
36
46
56
70
95
Boiler
5
5
6
8
8
14
25
Heating surface
Sq. Ft.
11
13
16
20
24
29
36
Head loss boiler side
Ft.
3/4
3/4
1
1 1/4
1 1/2
2
2
Piping connections
Inches
Domestic
ø
3/4
3/4
3/4
3/4
3/4
1 1/2
1 1/2
Boiler
ø
1
1
1
1 1/4
1 1/4
1 1/2
1 1/2
Auxiliary
ø
3/4
3/4
3/4
3/4
3/4
1 1/2
1 1/2
Dimensions
Inches
Diameter
22
22
22
22
22
26
26
A
32
38
46
57
66
61
78
B
9
9
9
9
9
10
10
C
24
30
38
49
58
50 1/2
50 1/2
Drywell length
Inches
25 1/2
29 1/2
37 1/2
37 1/2
47 1/2
47 1/2
51
Empty weight
Lbs.
100
115
135
165
190
315
390

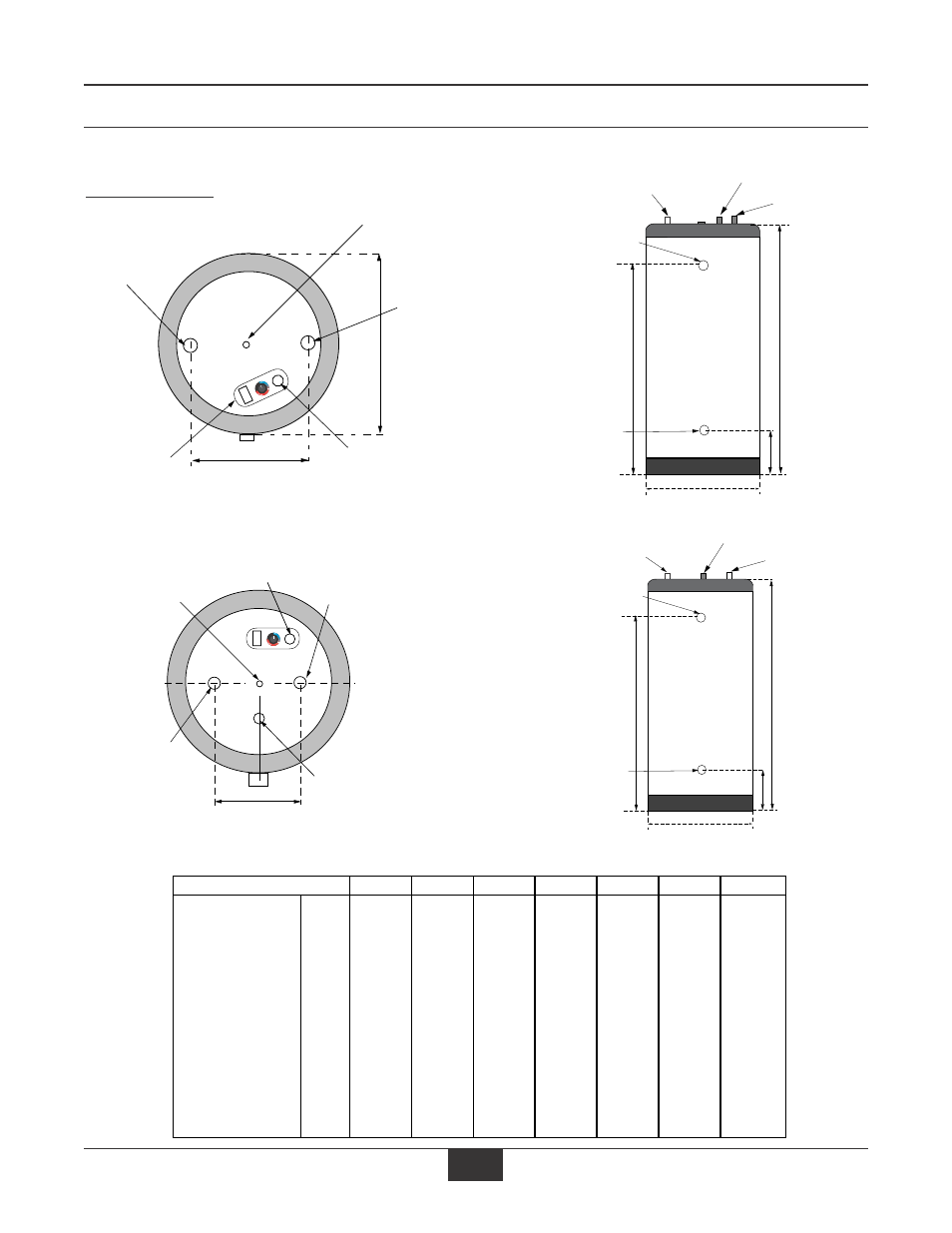

SMART SERIES
Specifications
Water Heater Specifications
22"
Cold
Water Inlet
Auxiliary
Connection
Thermostat
Cover Plate
Hot
Water Outlet
Air Vent
14 1/4"
Top view SMART-20/30/40/50/60
B
A
C
22"
Boiler
Return
Hot Water
Outlet
Cold Water
Inlet
Auxiliary
Connection
Boiler
Supply
10 5/8"
Hot Water
Outlet
Cold Water
Inlet
Auxiliary
Connection
Thermostat
& Drywell
Air Vent
Top view SMART 80/100
Rear view SMART 80/100
Rear view SMART-20/30/40/50/60
B
A
C
26"
Cold Water
Inlet
Hot Water
Outlet
Auxiliary
Boiler
Return
Boiler
Supply
