VELINEON POWER SYSTEM • 25
Spur Gear
Pinion
Gear
76
83
86
90
12
-
-
19.50
20.40
13
-
-
18.01
18.82
14
-
-
16.70
17.49
15
-
15.04
15.58
16.32
16
-
14.12
14.63
15.31
17
-
13.27
13.76
14.39
18
-
12.54
13.00
13.60
19
-
11.89
12.32
12.89
20
-
11.28
11.69
12.24
21
-
15.60
11.14
11.66
22
9.38
10.25
10.63
11.12
23
8.97
9.82
10.17
10.63
Spur Gear
Pinion
Gear
76
83
86
90
24
8.62
9.41
9.74
10.20
25
8.27
9.03
9.36
9.79
26
7.94
8.67
9.00
-
27
7.64
8.35
8.67
-
28
7.37
8.05
8.35
-
29
7.12
7.78
8.08
-
30
6.88
7.53
-
-
31
6.66
7.29
-
-
32
6.47
7.04
-
-
33
6.26
-
-
-
34
6.09
-
-
-
35
5.90
-
-
-
Use NiMH batteries with:
Bandit, Rustler or Stampede with
Velineon System
Only Bandit and Rustler with
Velineon System
Only Bandit with Velineon System
Do Not Use NiMH (battery
must have a continuous rating
of at least 70A. Consult with
your hobby dealer or battery
manufacturer.)

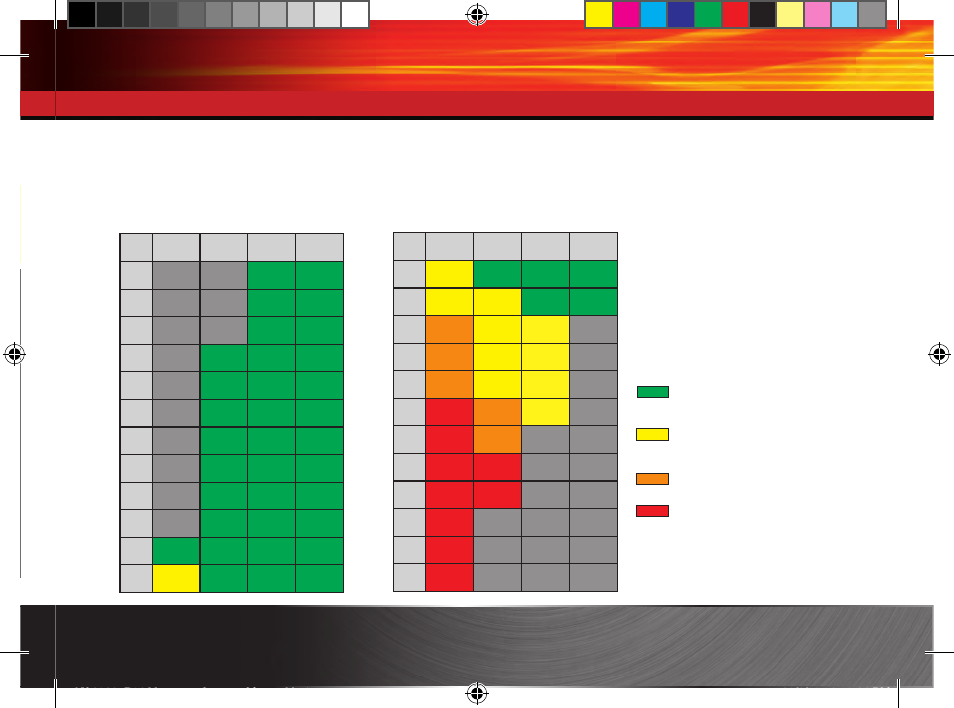

Gearing Compatibility Chart
The chart below shows recommended gear combination ranges when using a NiMH battery pack to power a Rustler,
Bandit, or Stampede equipped with the Velineon System and upgraded drivetrain components. In the red range, use
a battery that has a continuous rating of at least 70A.
Gearing Options
# Spur Gear Teeth
x 2.72 = Final Gear Ratio
# Pinion Gear Teeth
Use the following formula to calculate the overall ratio:
Speed
Bandit
35+mph
45+mph
65+mph
70+mph
Rustler
35+mph
45+mph
65+mph
70+mph
Stampede
30+mph
40+mph
60+mph
65+mph
Gearing
Bandit
26-tooth pinion
76-tooth spur
28-tooth pinion
76-tooth spur
33-tooth pinion
76-tooth spur
33-tooth pinion
76-tooth spur
Rustler
25-tooth pinion
83-tooth spur
28-tooth pinion
83-tooth spur
31-tooth pinion
76-tooth spur
31-tooth pinion
76-tooth spur
Stampede
19-tooth pinion
86-tooth spur
25-tooth pinion
86-tooth spur
26-tooth pinion
86-tooth spur
30-tooth pinion
83-tooth spur
Battery
6-cell NiMH
7-cell NiMH
3S 20C LiPo
3S 20C LiPo
Nominal Voltage
7.2V
8.4V
11.1V
11.1V
mAh
3000+ mAh
4000+ mAh
4000+ mAh
8000+ mAh
Skill Level
1
2
5
5
