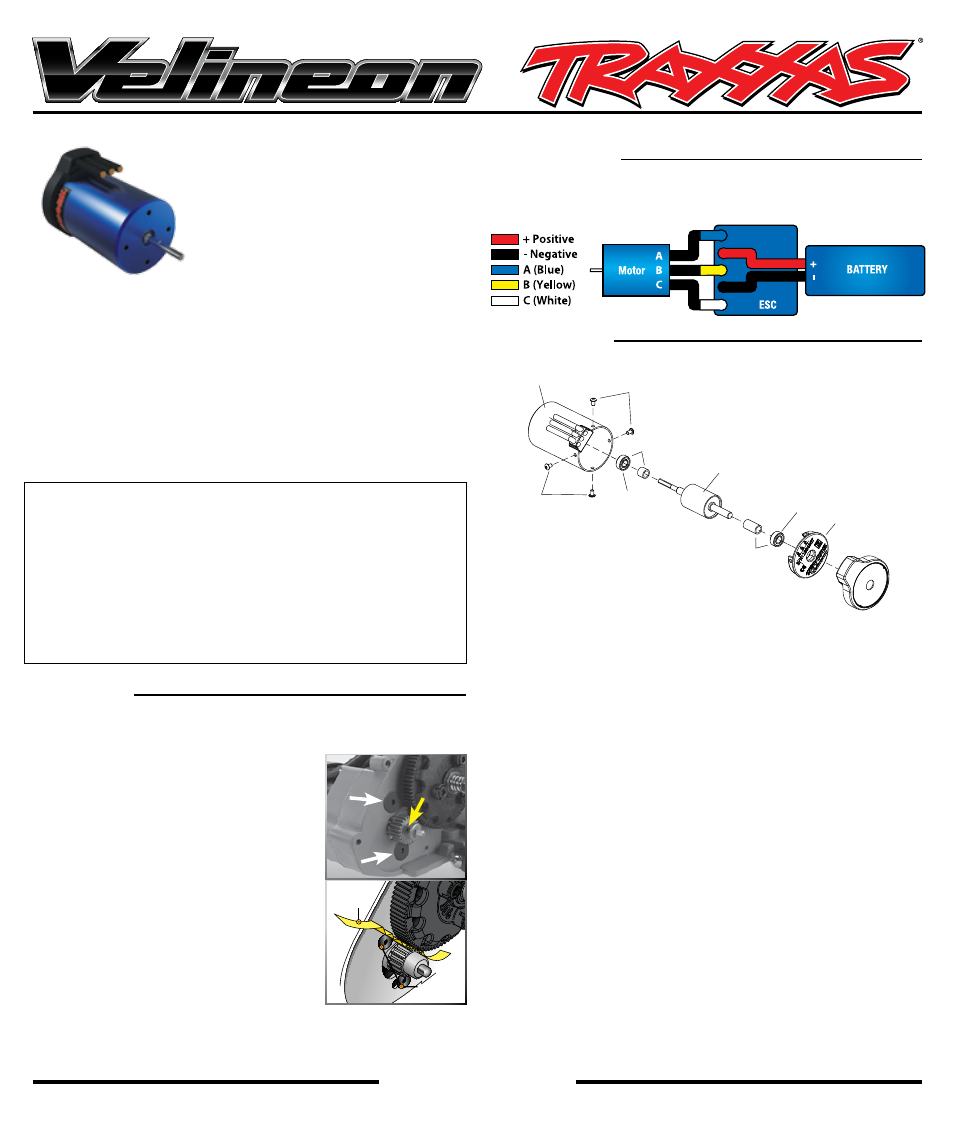

Thank you for purchasing the Velineon ™
3500 sensorless brushless motor.
The Velineon 3500 brushless motor is
precision-matched for use in 1/10th scale
Traxxas models, delivering the perfect
balance of brutal horsepower and long
run times. Smooth-running performance
is built in with ultra high-temperature sintered Neodymium magnets,
high-speed ball bearings, and a precision balanced rotor.
The Velineon 3500 can be used with many after-market brushless
electronic speed controls, but is designed to work with the Traxxas
VXL-3s Electronic Speed Control for optimal speed and efficiency.
The key to the Velineon’s extreme power output is total system
optimization. Each component is carefully engineered to work with
the other system components to eliminate restriction and allow
maximum power flow.
Velineon 3500 Specifications:
Type ......................................................................................... Sensorless brushless
RPM/volt .................................................................................................................3500
Magnet type ....................Ultra High-Temperature Sintered Neodymium
Connection type ............................................. TRX 3.5mm bullet connectors
Wire size ........................................................................................................12-gauge
Diameter .......................................................................... 36mm (1.42”) (540 size)
Length................................................................................................ 56.1mm (2.21”)
Weight ...................................................................................................248g (8.75oz)
Installation
(Traxxas Rustler shown, Bandit and Stampede are similar.)
1. Mount the Velineon Motor to the gearbox using 3x8mm screws and
tighten finger tight (white arrows).
2. Mount the motor pinion to the motor shaft,
make sure to tighten set screw against the
flat portion of the shaft.
3. Set the gear mesh by running a narrow strip
of notebook paper between the pinion and
spur gears. Loosen the motor screws and
slide the motor and pinion gear into the spur
gear. Retighten the motor screws and then
remove the strip of paper.
Wiring Diagram
Follow the wiring diagram below for installing the Velineon 3500 with
a VXL-3s Electronic Speed Control. For other speed controls, consult
the manufacturer’s instructions.
3342 Bullet connectors, male, 3.5mm (3) / heat shrink
3354R Motor cover, endbell (Velineon 3500)
3352 Rebuild kit, Velineon 3500 (includes 5x11x5mm ball bearings
(2), 2.5x5mm BCS (2), front and rear bushings)
3347 Screws, 2.5x5mm button-head machine (hex drive) (6)
3931 Screws, 3x8mm flat-head machine (hex drive) (6)
If you are planning to operate the motor at the higher limits of its
capabilities, cut ventilation holes into your model’s Lexan ® body.
Monitoring temperatures will extend the lives of the batteries and
motors. To accurately monitor motor temperature and prevent
overheating, a telemetry temperature sensor (part #6523) can be
installed on the motor to continually monitor temperature as you
drive. Generally, try to keep your motor below 200° F.
If you have questions or need technical assistance, call Traxxas at
1-888-TRAXXAS
(1-888-872-9927) (U.S. residents only) Motor
Screws
Strip of
Paper
Exploded View
3354R
3351R
2.5x5BCS
5x11x4 BB
3352
3352
3351R
5x11x4 BB 3347
2.5x5BCS
3352
3352
3351R
3347
