Traxxas 6995 User Manual
Funny car display chassis, 888-traxxas, Body cutout instructions

Sour
ce F
ilename: C:
\P
TC
\.
wwg
m
\.
ws
\tr
x-w
capp
.tr
axxasc
or
p.c
om
\S
olidW
or
ks F
iles
\S
olidW
or
ks F
iles
.SOLIDWORKS
\OR
C003 Displa
y Chassis R
ear F
or Exploded
View
KC1729 120823
Covers Part #6995
Completed Installation
Body Cutout
Instructions
www.TRAXXAS.com
Traxxas, 1100 Klein Road, Plano, TX 75074, Phone: 972-265-8000, Fax: 972-265-8011, e-mail: [email protected]
If you have questions or need
technical assistance, call Traxxas at
1-888-TRAXXAS
(1-888-872-9927) (U.S. residents only)

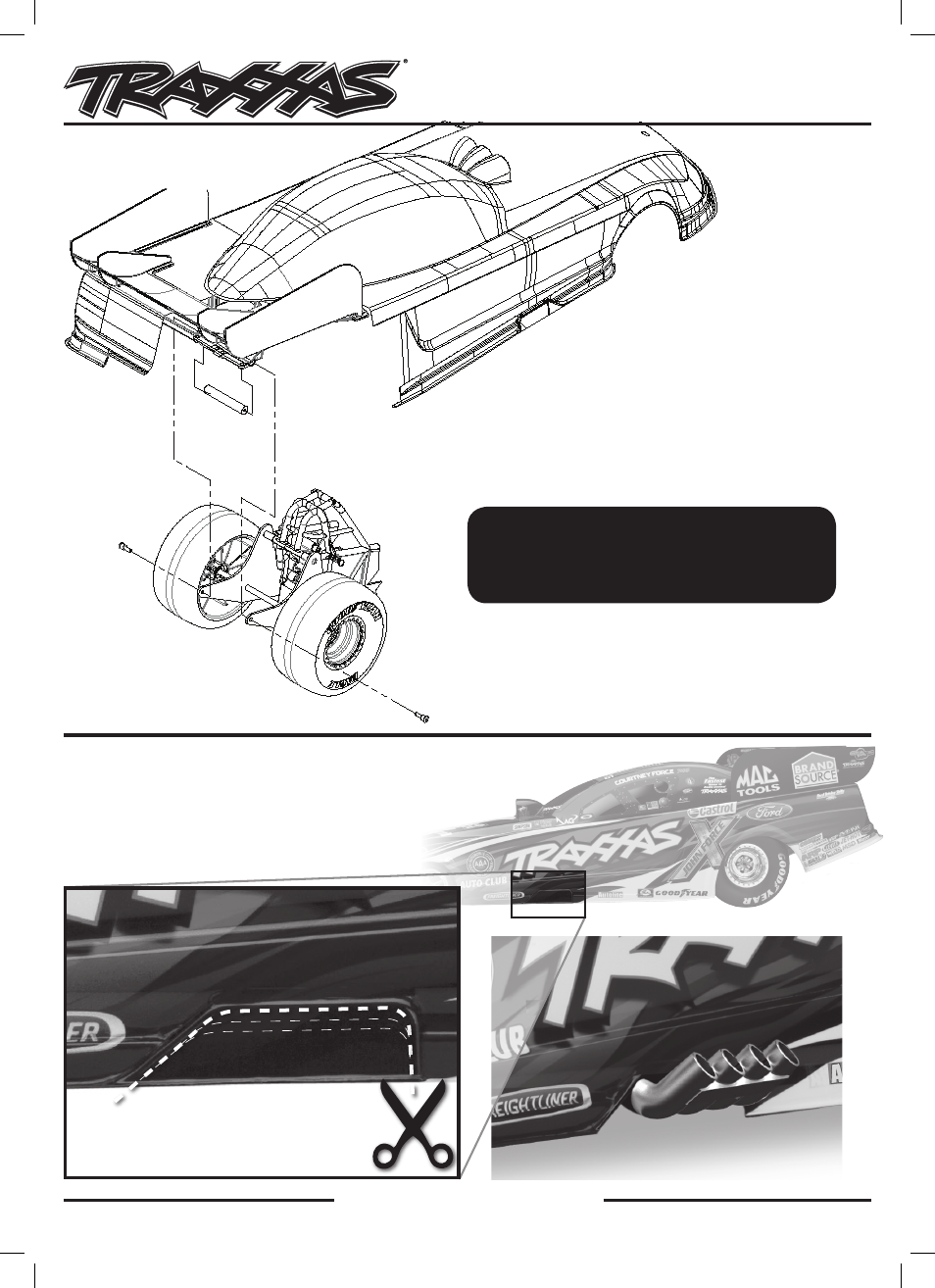

Funny Car
Display Chassis
Body Mounting
Instructions
The body will rest on the display chassis’ exhaust pipes when lowered.
To adjust the height of the body, carefully trim away the exhaust-
clearance area as shown. Remove a small amount of material at a
time until the body is sitting properly over the chassis.
For best results, used curved scissors designed for trimming
lexan bodies. Or, trace the area using a hobby knife to score it,
then flex the lexan and peel out the waste material.
Use caution when handling a hobby knife.
1. (Skip to step 2 if you are installing a body you
have purchased separately). Dismount the body
from your vehicle by removing the screws that
secure the body pivot to the rear subframe.
2. Install the rear of the body on the display chassis
by inserting the supplied hardware through the
body pivots and chassis plates, then tighten
them in the plastic spacer bar.
All parts contained in this model, including the
wheels and tires, are for static display only.
DO NOT install on running vehicles.
