20 • VELINEON POWER SYSTEM
VxL-3s Setup and Operation
To activate Low-Voltage Detection (LiPo setting):
1. Make sure the LED on the VXL-3s is
on and red.
2. Press and hold the EZ-Set button for
ten seconds. The LED will turn off
and then light green. Also, a “rising”
musical tone will be emitted from
the motor.
3. Low-Voltage Detection is now ACTIVATED.
VxL-3s Setup Programming
(Calibrating your ESC and transmitter)
Read through all of the programming steps before you
begin. If you get lost during programming or receive
unexpected results, simply unplug the battery, wait a few
seconds, plug the battery back in, and start over.
1. Connect a fully charged battery
pack to the VXL-3s.
2. Turn on the transmitter (with the
throttle at neutral).

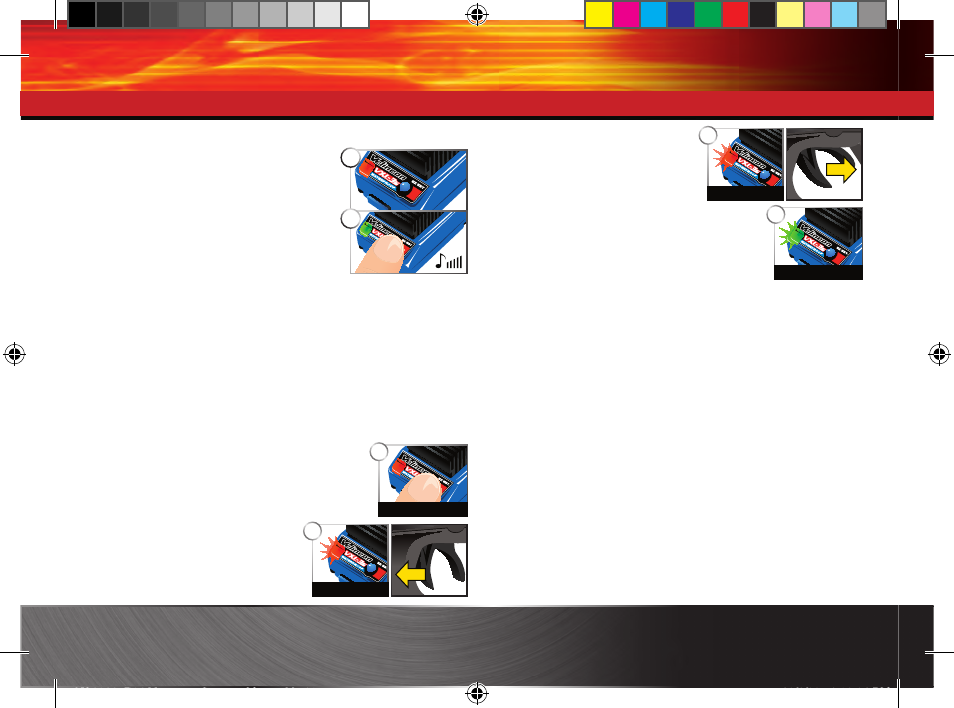

3. Press and hold the EZ-Set
button (A). The LED will first
turn green and then red.
Release the EZ-Set button.
4. When the LED blinks RED
ONCE. Pull the throttle trigger
to the full throttle position and
hold it there (B).
5. When the LED blinks RED
TWICE. Push the throttle trigger to
the full reverse and hold it there (C).
6. When the LED blinks GREEN ONCE,
programming is complete. The LED will then shine green
or red (depending on low-voltage detection setting)
indicating the VXL-3s is on and at neutral (D).
VxL-3s Operation
To operate the speed control and test programming,
place the vehicle on a stable block or stand so that all
of the driven wheels are off the ground. Disconnect
motor wires “A” and “C”, this will assure the motor
does not drive the wheels during testing. Do not test
programming without disconnecting the motor wires.
Note that in steps 1-7 below, Low-Voltage Detection is
ACTIVATED (factory default) and the LED shines green. If
Low-Voltage Detection is DISABLED, the LED will shine red
instead of green in steps 1-7 below.
Green then Red
A
Once Red
B
Twice Red
C
Once Green
D
