VELINEON POWER SYSTEM • 13

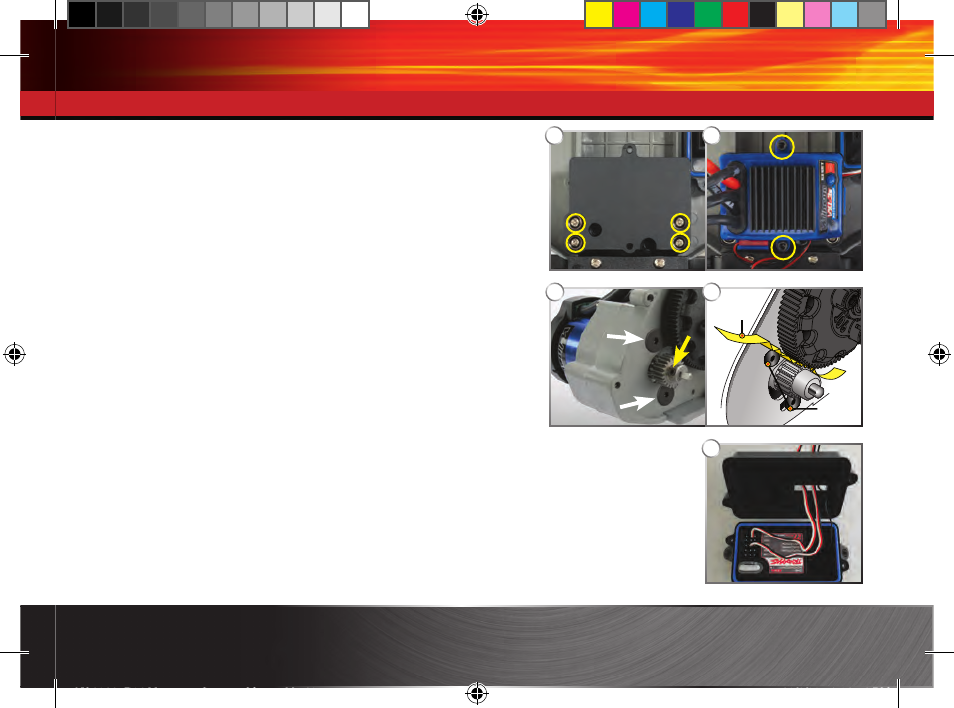

Installation of the Velineon System:
1. Rustler and Bandit: Install the included ESC mounting plate using

the 3x8mm screws (E).

2. Rustler, Bandit, Stampede: Mount the VXL-3s to the mounting

plate using the supplied 3x15mm cap screws (F).
Slash: Mount the VXL-3s directly to the chassis using the
supplied 3x15mm cap screws.

3. Mount the Velineon Motor to the gearbox using the 3x8mm

washerhead screws (or the included flathead hex screws) and
tighten finger tight (G, white arrows).

4. Mount the motor pinion to the motor shaft, make sure to tighten

set screw against the flat portion of the shaft (G, yellow arrow).

5. Set the gear mesh by running a narrow strip of notebook paper

into the gear mesh. Loosen the motor screws and slide the
motor and pinion gear into the spur gear. Tighten the motor
screws and then remove the strip of paper (H).

6. Replace the gear dust cover and the wheel.
7. Connect the Velineon motor wires according to the wiring diagram (see page 14).
8. Plug ESC wires into the receiver (I). Bundle wiring as necessary.
9. Make sure the O-ring is properly seated into the groove in the waterproof receiver box

bottom so that the cover will not pinch it or damage it in any way.

Motor

Screws

Strip of

Paper
