7
❏

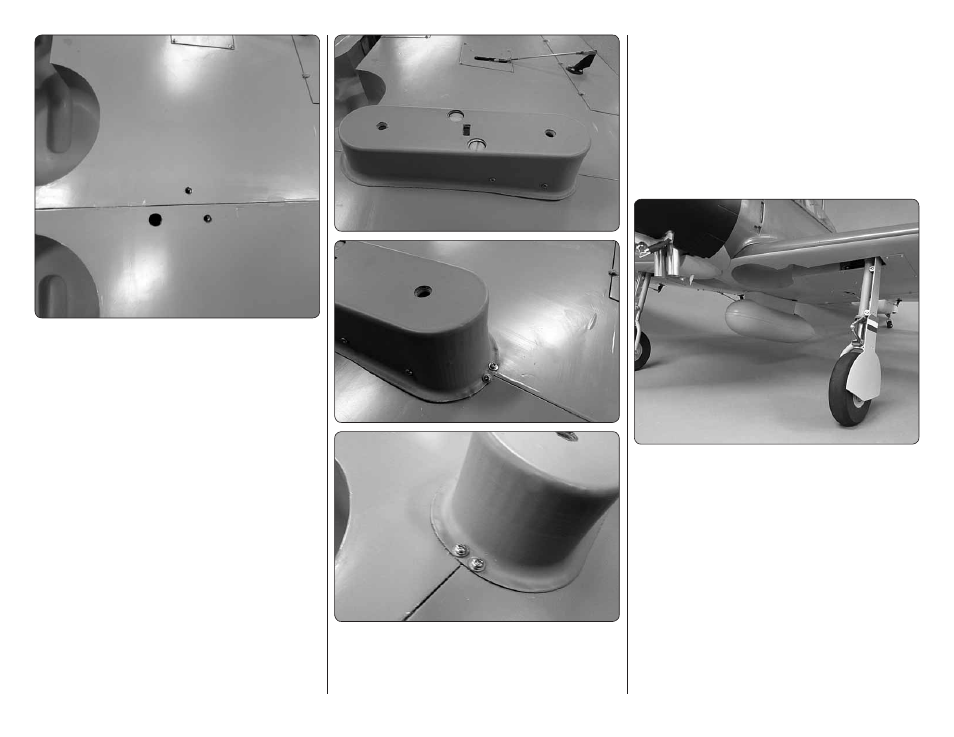

11. On the bottom of the wing, under the covering,
you will fi nd two pre-installed blind nuts and an access
hole to feed the servo lead through the wing and into
the fuselage. Cut the covering from these holes.
❏
12. Install the pod to the wing with two 1/4 - 20

2"
nylon bolts. Don’t worry about feeding the servo lead
into the wing. Make sure you have the pod centered
on the wing. Drill two 1/16" [1.6 mm] holes into the front
and rear of the pod. Position the holes you drill so that
you drill into the root rib of the wing. Install and then
remove a #2

3/8" screw and #2 fl at washer into each
of the holes you drilled. Remove the pod from the wing.
Apply a couple of drops of thin CA glue into the four
holes to harden the threads.
❏
13. Install a 12" [ 305 mm] servo extension onto the
servo. Secure it with tape, heat shrink tubing or some
other method to secure the leads. Feed the servo
through the wing and reinstall the pod to the wing.
❏
14. Install the drop tank to the pod.
