12

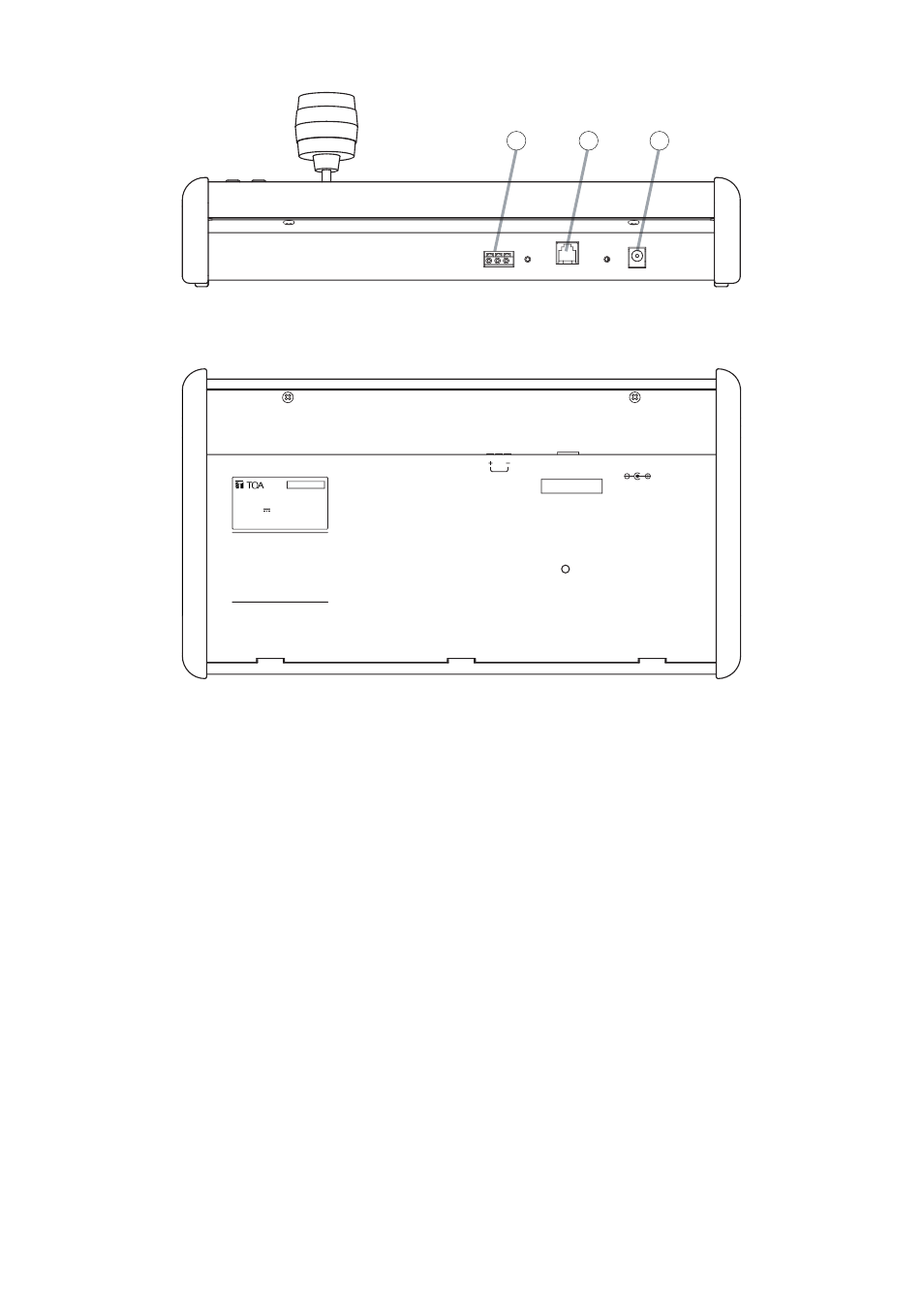

[ Rear Panel ]
[ Bottom Surface Indications ]
23 24 25
TOA Corporation
MADE IN JAPAN
model C-RM1000 HV
REMOTE CONTROLLER
12/14V 250mA
SER.
to telephone line.
Do not connect this jack
DC IN
OUTPUT-A
OUTPUT-B
DVR CONTROL
DVR CONTROL
GND
(23) DVR Control Output Terminal B
(screwless type)
Use this terminal when the supplied modular
cable cannot be used or when connecting the
Remote Controller to the interface unit. The
supplied AC adapter is required when using this
terminal.
(24) DVR Control Output Terminal A (RJ-11)
Use this terminal when connecting a single
Remote Controller to the Digital Video Recorder
within the distance of 3 meters (9.8 ft). Use the
supplied modular cable for connection.
(25) AC Adapter Power Input Terminal
[ DC IN ]
Connect the DC plug of the dedicated AC
adapter to this terminal. Connect the AC adapter
when using the DVR Control Output Terminal B
(23).
