9. RECORDING

The contents of the conference can be recorded by connecting an Alternate Cassette Recorder or other
recording equipment to the TS-770 Central Unit, TS-771 Chairman Unit, or TS-772 Delegate Unit.

9.1. Recording with the Central Unit

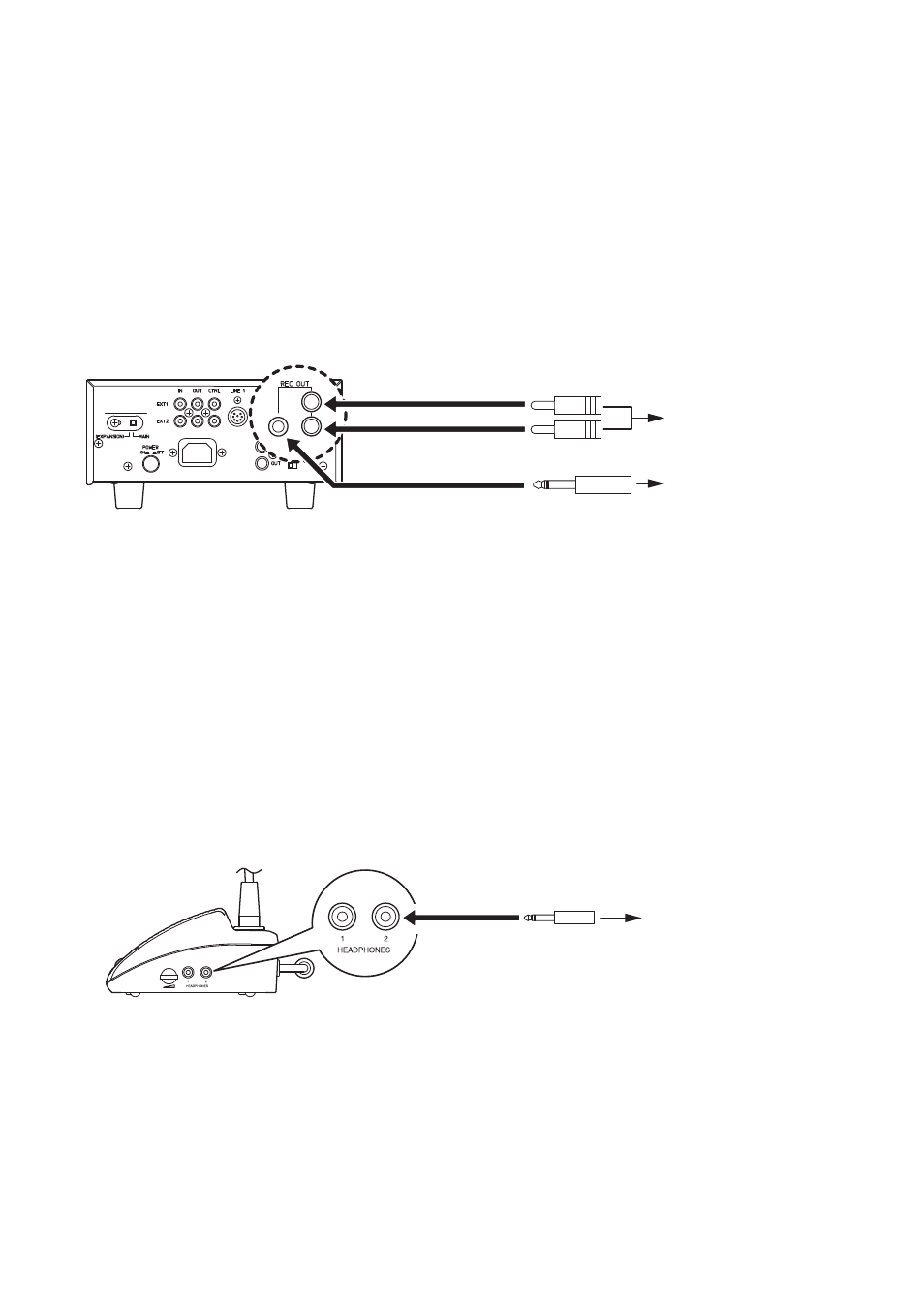

Step 1. Connect the recording output on the rear panel of the TS-770 Central Unit to the recorder's recording

input.
There are 2 types of recording output terminals: one is of a phone jack and the other is of RCA jacks.
Select either type of jack according to equipment to be connected.

Note
Prepare the connection cables separately.

Phone plug

Pin plug

To the recorder's recording
input terminal

Recording output terminals
(RCA jacks)

Recording output terminal
(Phone jack)

TS-770 Central Unit

Step 2. Connect a set of headphones into the recorder's monitor output to confirm that the contents of the

conference are being recorded correctly.
If the recording device is equipped with a recording level control, adjust it to an appropriate recording
level.
For use of recording device, refer to the instruction manual supplied with the device.

9.2. Recording with the Chairman Unit or Delegate Unit

Using the Recording/Headphone Output terminals on the side panel, recordings can be made in the same
manner used for the Central unit.

Recording/Headphone output terminals

TS-771 Chairman unit or
TS-772 Delegate unit

Mini plug

To the recorder's recording
input terminal

To 1 or 2

Notes
• If either of Recording/Headphone jacks 1 and 2 is used, no sound is output from the unit's speaker.
• Sound volume from the recording output of the Chairman and Delegate units can be adjusted using the

Central unit's Line Volume control. Setting the line volume control to the minimum position makes it
impossible to record from the recording output of the Chairman and Delegate units. When wishing to record
conference contents without amplifying the sound output from the Chairman and Delegate unit speakers,
use the Central unit's Recording Output terminals.
