10. SETTING GROUP, CHANNEl, AND ID NUmBERS

Step 1. Open the battery case, and turn off the power switch.

Note

The transmitting frequency and ID remain unchanged

even if the number settings of group, channel, and ID are

performed with the power switched on.

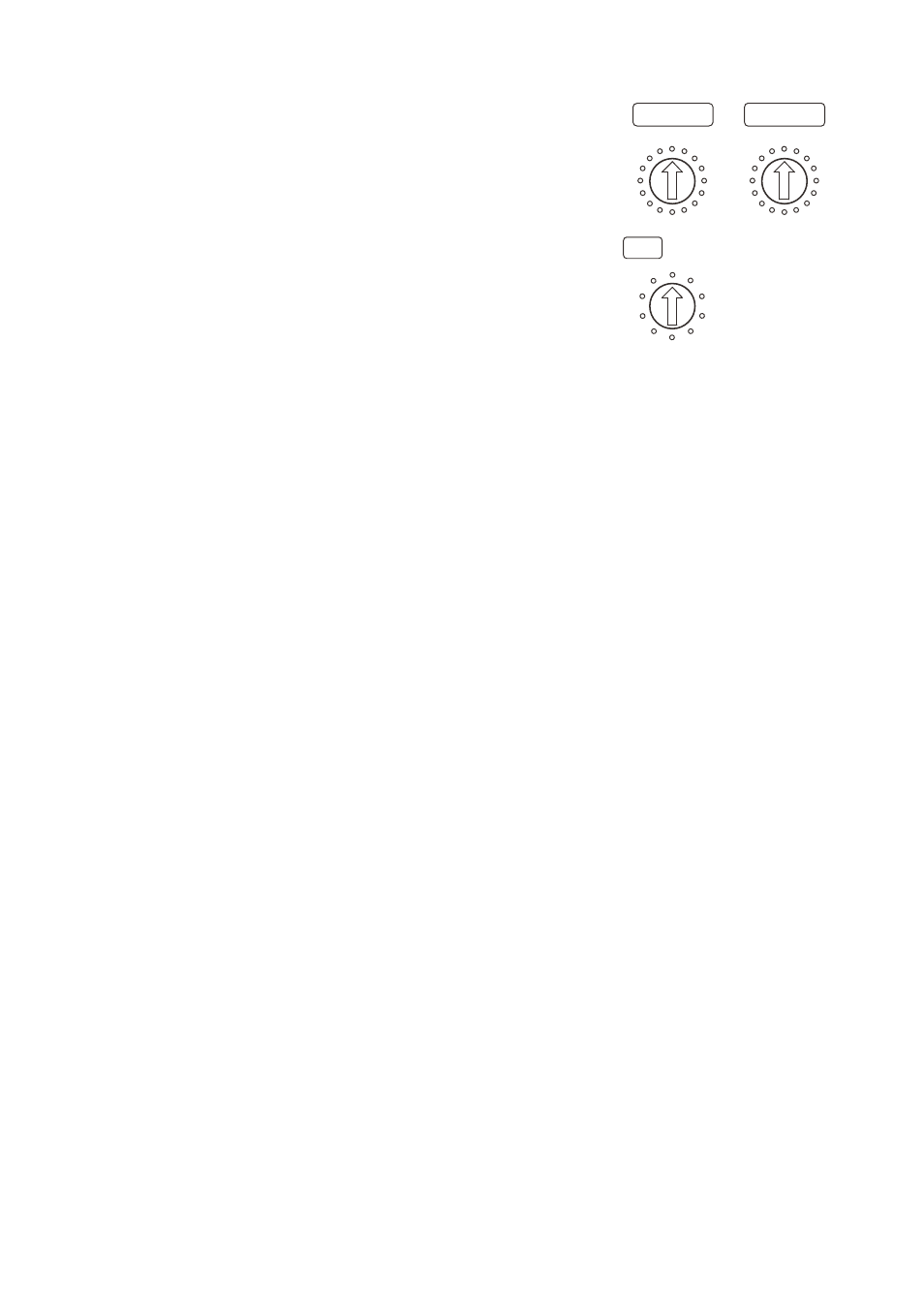

Step 2. Set the Group selector switch pointer to the desired group

number with the supplied screwdriver.

Step 3. Likewise, set the channel and ID selector switches to the

desired numbers.

Step 4. Turn on the power switch, and replace the battery case.

Notes

• You can use wireless microphones belonging to one of the following 8 group pairs simultaneously: Group 0

and 1,……, 8 and 9, A and B, ….., E and F.

• Make sure that the wireless transmitter is identical to the wireless receiver in group, channel, and ID numbers.

If different, the receiver does not receive the transmitter signal.

10.1. what Is ID ?

The S-D7000 Digital wireless system requires ID (Identification Data) to be determined in advance between the

wireless transmitter and receiver which communicate with each other. The receiver performs digital receiving

processing to output audio signals when the ID contained in the digital signals received from the wireless

transmitter is the same as the receiver’s ID. Even if the receiver receives disturbing signals existing in the

neighborhood, it does not perform digital receiving processing unless both transmitter’s and receiver’s IDs are

identical, preventing audio signals from being output.

The S-D7000 series wireless transmitter and wireless receiver are equipped with 10 ID numbers from “0”

through “9,” which are switchable depending on the situation. Properly setting IDs validates confidentiality of

information.
