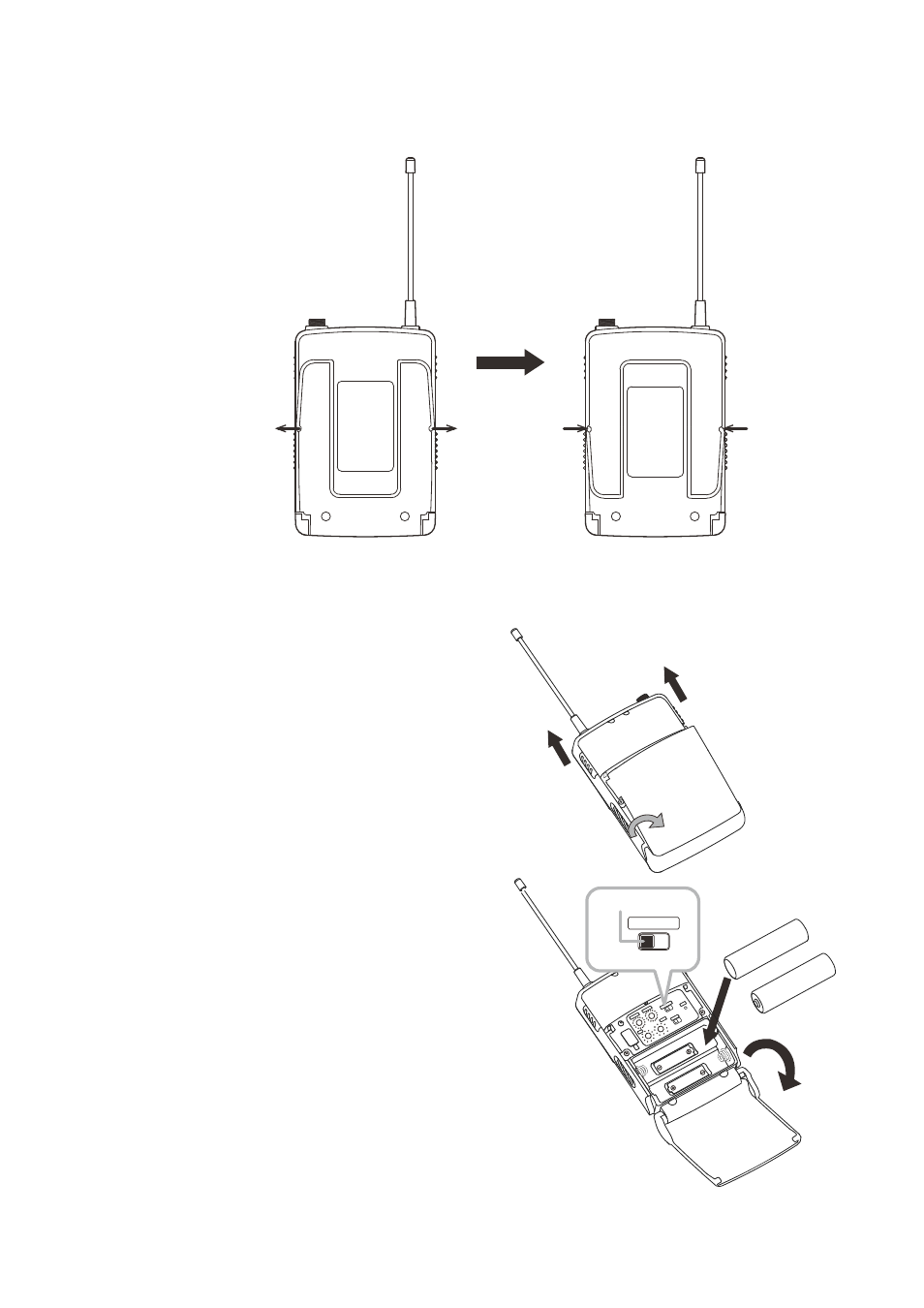

[Changing the Belt clip mounting direction]
The Belt clip can be detached, then reattached upside down as shown below.
6. HOw TO INSERT BATTERIES
Step 1. Push the battery cover lock release tabs on either
side towards the top of the unit.
The battery cover is slightly opened.
Step 2. Fully open the battery cover.
Step 3. Turn off the power switch.
Step 4. Insert 2 AA batteries noting correct polarity.
Step 5. Replace the battery case.
Pull out
Pull out
Fit in
Fit in
The operation section is backlit while the battery
cover is open, and its light goes out when closed.
