5

[Recommended time of battery replacement]
The battery indicator lights green when the battery is fully charged,

and turns into orange followed by red as the battery becomes weaker.

Subsequently, the battery indicator starts flashing red, then signal

transmission will be stopped soon. When the indicator lights red, replace

the batteries with new ones.

Rough estimate of operating time on alkaline battery use

Battery indicator status

Remaining battery life

Lit green

2.5 – 5.5 h

Lit orange

1 – 2.5 h

Lit red

15 min – 1 h (Batteries must be replaced.)

Flashing red

0 − 15 min (Battery life is about to end.)

Notes

• Operating time varies depending on the condition of use such as ambient temperature.

• The indicator flashes green if the transmitter is set to an invalid group/channel for which no usable frequency

is assigned. (See p. 7.)

• The indicator flashes orange when in test mode. (See p. 9)

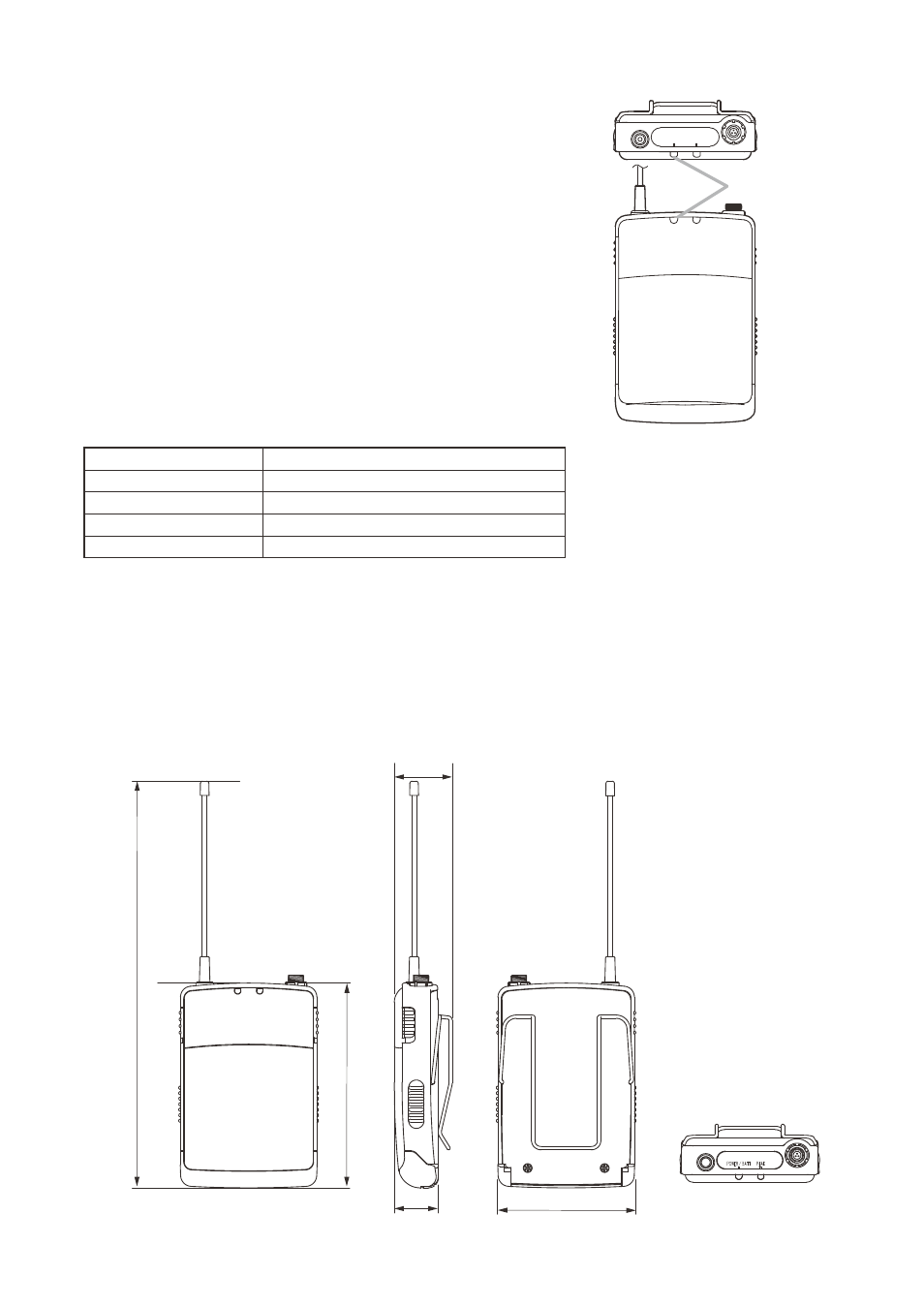

7. DImENSIONAl DIAGRAm

Unit: mm

185

93

[Front]

27

20

[Side]

62

[Rear]

[Top]

POWER / BATT PEAK

Battery indicator
