3

4. HANDlING PRECAUTIONS

• Never open nor remove the unit case to modify the unit. Refer all servicing to your nearest TOA dealer.

• Take care not to drop the unit onto the floor nor bump it against a hard object as the unit could fail.

• Do not place the unit in locations of high temperature (ex. in an ill-ventilated car in summer) or high humidity

as the unit could fail.

• Avoid using the unit in locations that can be splashed with perspiration or seawater, as this could lead to unit

failures.

• To clean, use a dry cloth. When the unit gets very dirty, wipe lightly with a cloth damped in a dilute neutral

cleanser, then wipe with a dry cloth. Never use benzine, thinner, or chemically-treated cleaning towel.

• Avoid using a mobile telephone near the unit in use. Noise could be picked up.

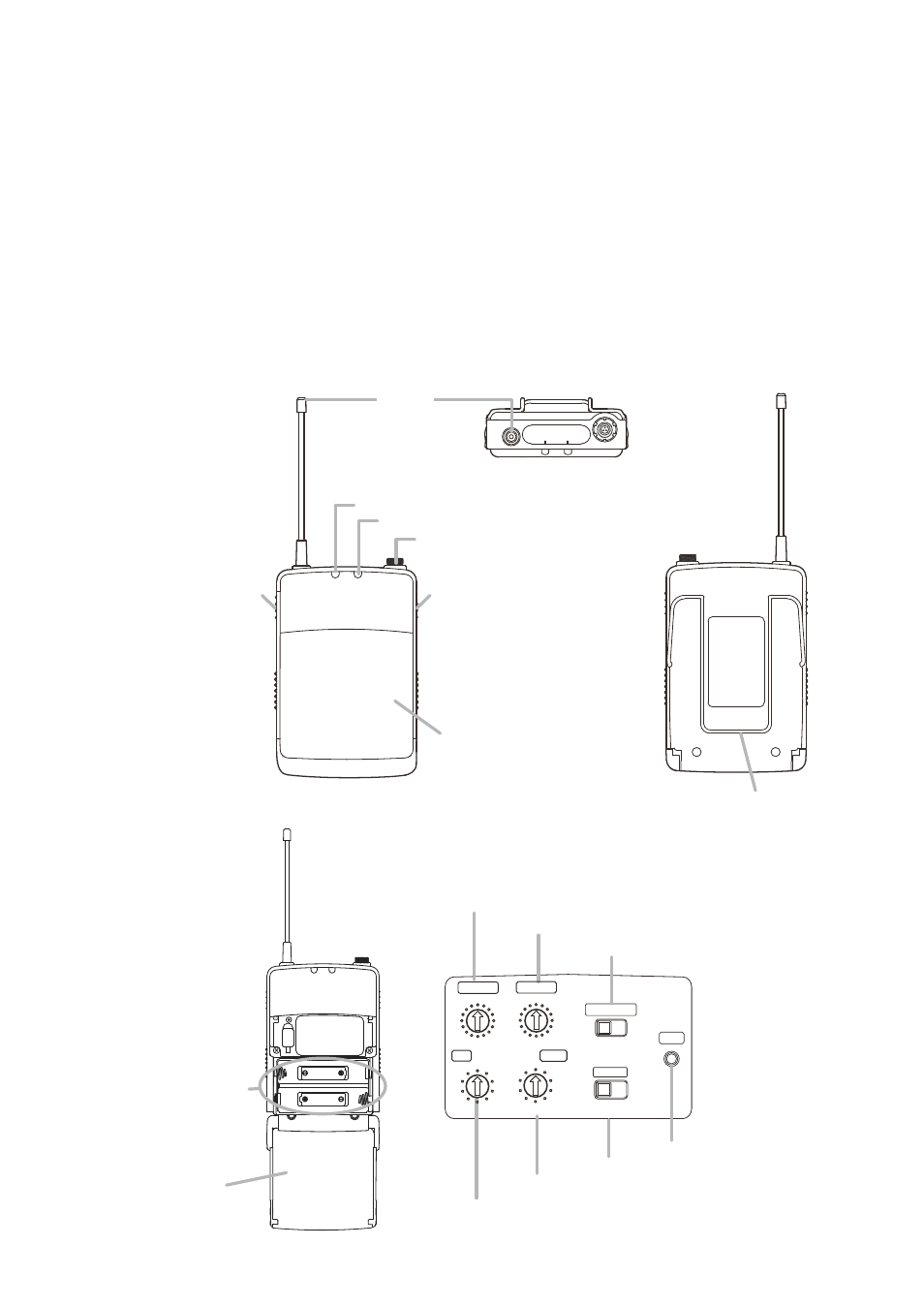

5. NOmENClATURE

* The peak indicator lights when

the audio signal input level from

the Microphone/instrument input

reaches its peak.

LR6(AA size)

LR6(AA size)

MIC INST

INPUT

OFF

ON

POWER

TEST

Group selector switch

Channel selector switch

Power switch

Test mode ON/OFF button

Microphone/instrument selector switch

Gain selector switch

ID selector switch

POWER / BATT PEAK

Antenna

[Operation section]

Belt clip

Battery case

Battery compartment

Battery case

(opened)

Battery case

lock release knob

Battery case

lock release knob

Battery indicator

Peak indicator*

Microphone/instrument input

[Front]

[Top]

[Rear]

GAIN

0 -3

-6

-9

-12

-15

-18

-21

-24

-27

0 1

2

3

4

5

6

7

8

9

ID

0 1

F

E

C

BA

D

2

3

4

5

6

7

8

9

GROUP

CHANNEL

0 1

F

E

C

BA

D

2

3

4

5

6

7

8

9

(p. 7)

(p. 9)

(p. 9)

(p. 9)

(p. 7)

(p. 7)
