Tie Down 86465 User Manual
Pontoon trailer guide on’s

TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336
www.tiedown.com (404) 344-0000 Fax (404) 349-0401
052714,A1072
Pontoon Trailer
Guide On’s
• Hot dip galvanized steel tubing
• Fits over 2” wide cross members
• 20” overall height
• Bright orange end caps for easy loading
• All mounting hardware included
Model #86465
Item Number:
# Qty. Part #
Description
1 2 43777-2A 20” PVC Post with End Cap
2 2 43777-1 Guide Tube 20”x 17” 90˚
3 8
10627
Nylock Nut 3/8”
4 8
10841
Washer 3/8”
5 2
43757
Bracket Channel
6 2
83106
U-bolt 3/8”x 5”
7 2
83107
U-bolt 3/8”x 5” with cross relief
1.
2.
3.
4.
5.
6.
7.

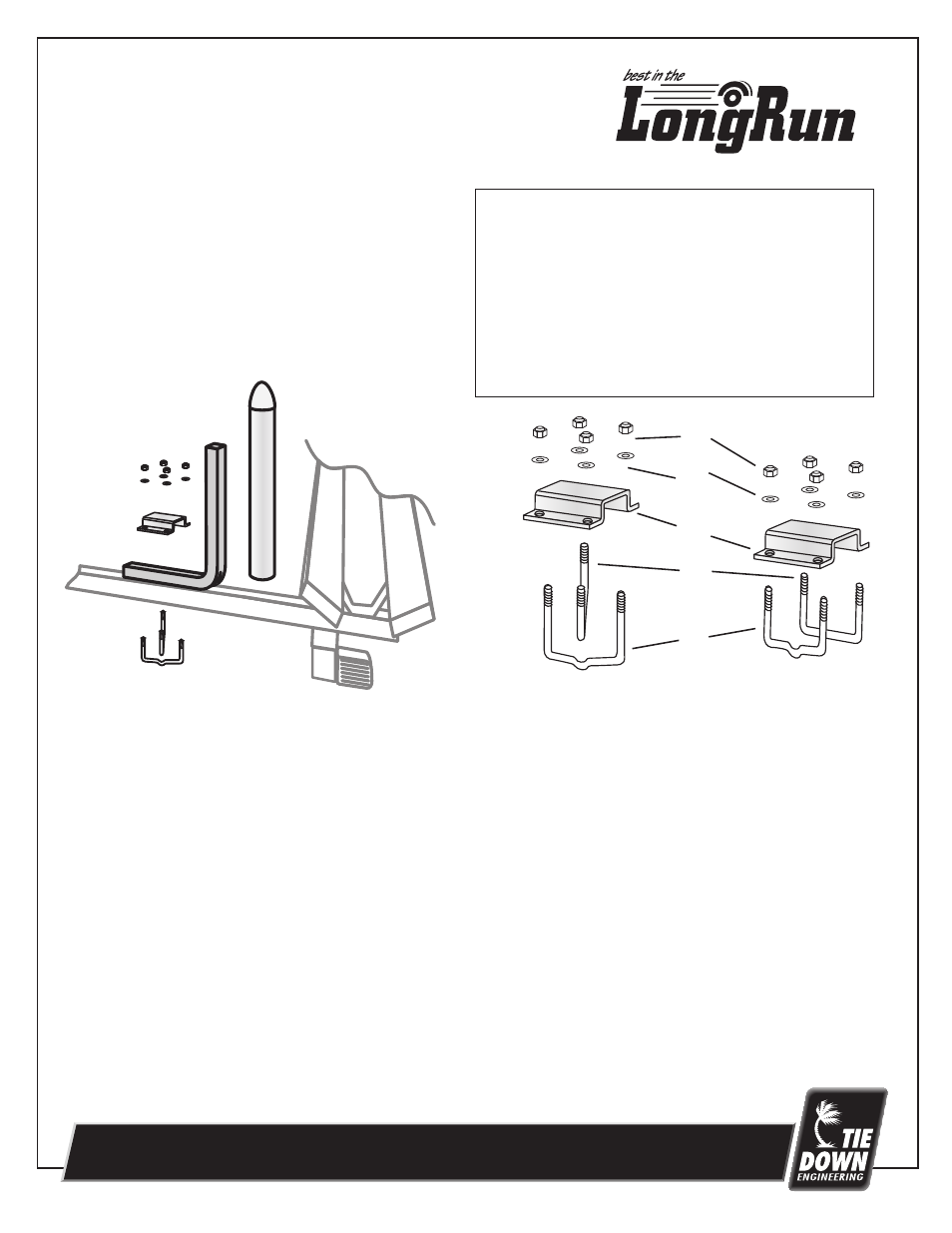

Installation Instructions
1. Using the bracket channel (5) and guide tube (2) as a guide, check position on cross beam
or frame for guide placement, the bracket channel (5) can be placed in the up or down position.
2. Place one straight u-bolt (6) and one cross over u-bolt (7) over or under the frame. Position
bracket channel (5) over/under the u-bolts. Loosely attach washers (4) and nylock nuts (3).
3. Inset a guide post (2) into the bracket channel (5) place both for final position.
4. Make sure the guide tube is properly seated within the bracket channel, the cross relief
u-bolt is placed over the straight u-bolt and the guide tube mounts at a 90 degree angle
to the frame.
5. Finish tightening the u-bolts.
6. Place PVC post (1) over the guide tube (2).
Note: The end cap on the PVC tube has a hole to allow air to come out. Do not block or
cover this hole.
Mounting for
2”W x 2”H Cross member
Mounting for
2”W x 3”H Frame
Instruction Sheet #08117
