Tie Down Brake Line Kit for Single Axles - Manual (Page 2)

TIE DOWN ENGINEERING • 5901 Wheaton Drive • Atlanta GA, 30336
www.tiedown.com • (404) 344-0000 • Fax (404) 349-0401

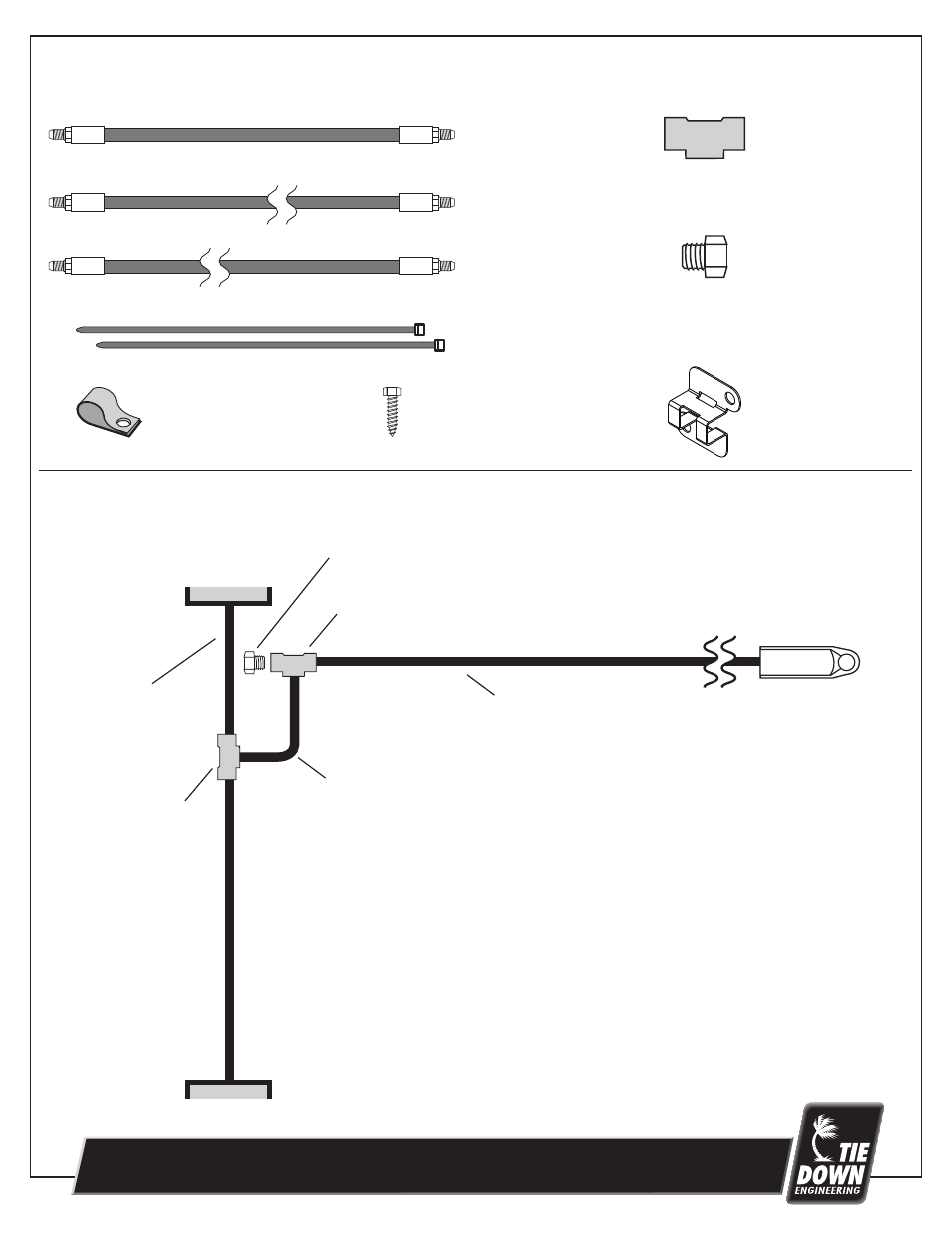

Single Axle Brake Line Kit- Parts List #80326
S
Assembly Diagram
24" Flex Hose (2)
76" Flex Hose
240" Flex Hose
Union "T" (2)
Union "T" Plug (1)
Cable Ties (5)
Cable Clamps (4) "T" Clamp (2) Self Taping Screws (8)
Brake
Actuator
240" Flex Hose
24" Flex Hose
76" Flex Hose
Union "T"
Plug
Brake
24" Flex
Hose
Union "T"
11
10
0
5
,A
6
13
Note: All Tie Down Brakes and Actuators use
DOT3 brake fluid. Use of any other brake fluid may
damage seals and voids the warranty.
N
