TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336
www.tiedown.com (404) 344-0000 Fax (404) 349-0401

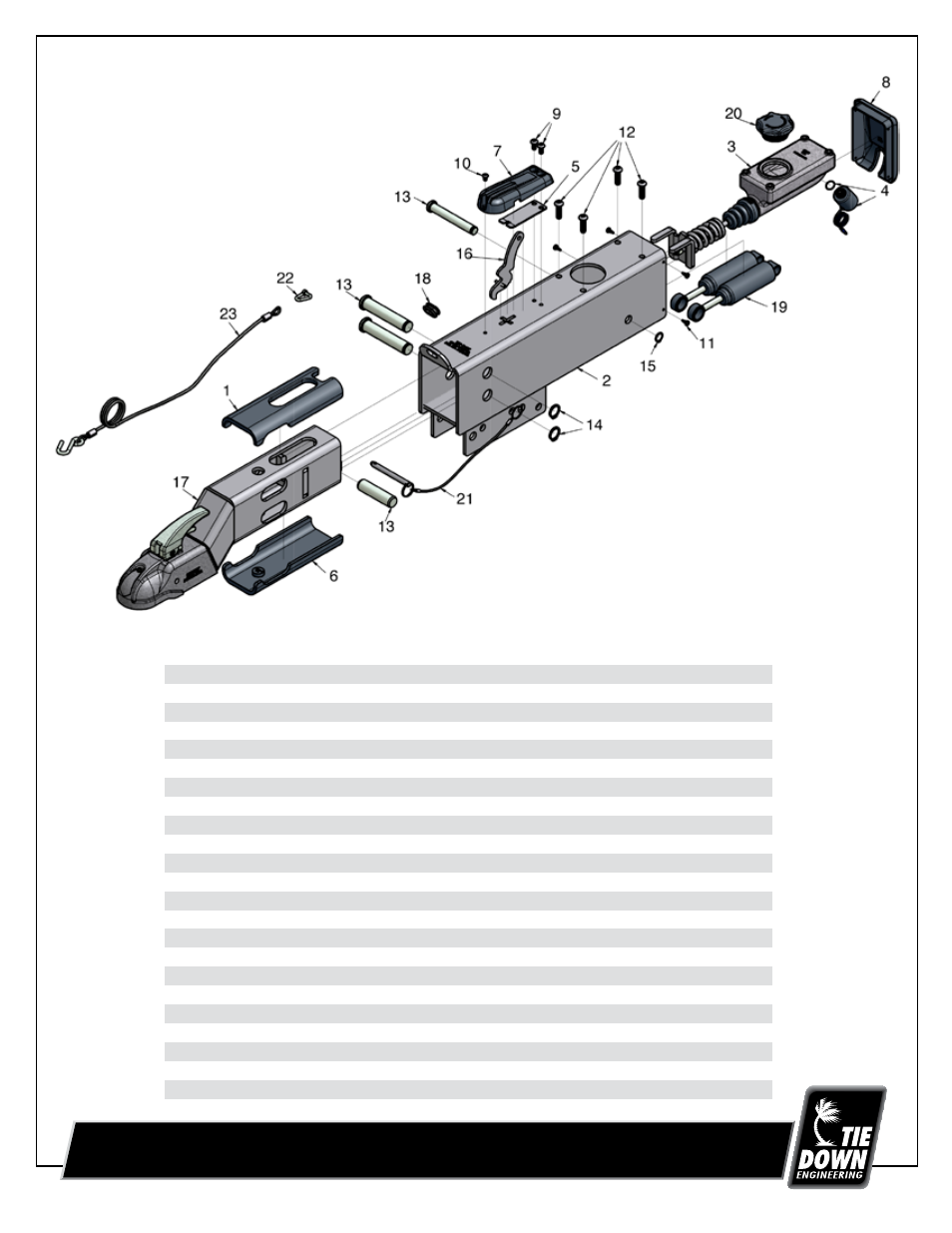

DESCRIPTION PART # QTY ITEM
UPPER WEAR PAD 70404-1 1 1
16.5K ACTUATOR HOUSING WELDMENT 70410 1 2
MASTER CYLINDER ASSEMBLY; 16,500 LB ACTUATOR - DISC BRAKE 70403 1 3
Valve Solenoid 2WNC Optional Back Flow 11286 1 4
E-STOP LEVER SPRING PLATE 70405-2 1 5
LOWER WEAR PAD 70404-2 1 6
E-STOP LEVER & SPRING COVER 70405 1 7
ACTUATOR HOUSING BACK COVER, 16,500 LB ACTUATOR 70406 1 8
SCREW SHBS 5/16-18X1/2 ZINC 10893 2 9
SCREW SHCS 1/4-20X3/8 ZINC 10892 1 10
SCREW PHPS 10-16X1/2 ZINC 10889 4 11
SCREW SHBS 3/8-16X1-1/4 ZINC 10888 4 12
ACTUATOR PIN KIT, 16,500 LB ACTUATOR 70408 1 13
RING RETAINING EXT SNAP 7/8 DIA SHAFT 10886 2 14
RING RETAINING EXT SNAP 5/8 DIA SHAFT 10887 1 15
E-STOP LEVER ASSEMBLY 70407 1 16
16.5 ACTUATOR/COUPLER ASSEMBLY 70409 1 17
GROMMET RUBBER 1.125 ODX5/8 IDX1/2 THICK 17422 1 18
DAMPER CYLINDER 17028SA 2 19
MASTER CYLINDER CAP ASSEMBLY 48986A 1 20
SAFETY PIN CABLE ASSEMBLY, 16,500 LB ACTUATOR 50306 1 21
LINK BEND CLOSE CONNECTOR 3/16 18457 1 22
EMERGENCY STOP CABLE ASSEMBLY, 16,500 LB ACTUATOR 50307 1 23
“Raptor” Model 145
Part Detail
14,500 lbs Capacity
Part #70400D
Drum Brake Ready
Part #70400
Disc Brake Ready
W/Solenoid Installed
