Item
Part #
Description
Quantity
1
48836
Roller & Pin Kit
1
2
48839
E-Latch Kit (clip
, spring and 2 screws)
1
3
48837
Coupler Latch Kit
1
4
48804
Master Cylinder Filler Cap with internal bladder
1
5
48835
Gasket & Screw Kit
(master c
ylinder gasket and 5 mounting screws)
1
6
48854
Master Cylinder
Assembly
“Drum Brake Ready”
1
48855
Master Cylinder
Assembly
“Disc Brake Ready”
(check v
alve removed)
7
44838
W
ear Plates Kit (2 wear plates and 8 mounting screws)
1
8
50308
E-Stop Cable
1
9
11253A
Solenoid
1
10
11262
Solenoid Return
Tube
1
11
46238-6
Hi Pressure Brake Line Hose
1
1
3
2
5
2
6
8
4
1
1
1
7
9
9/10
11
10
11
6
7
2.5”
3” x 5” T
ube
2.5”

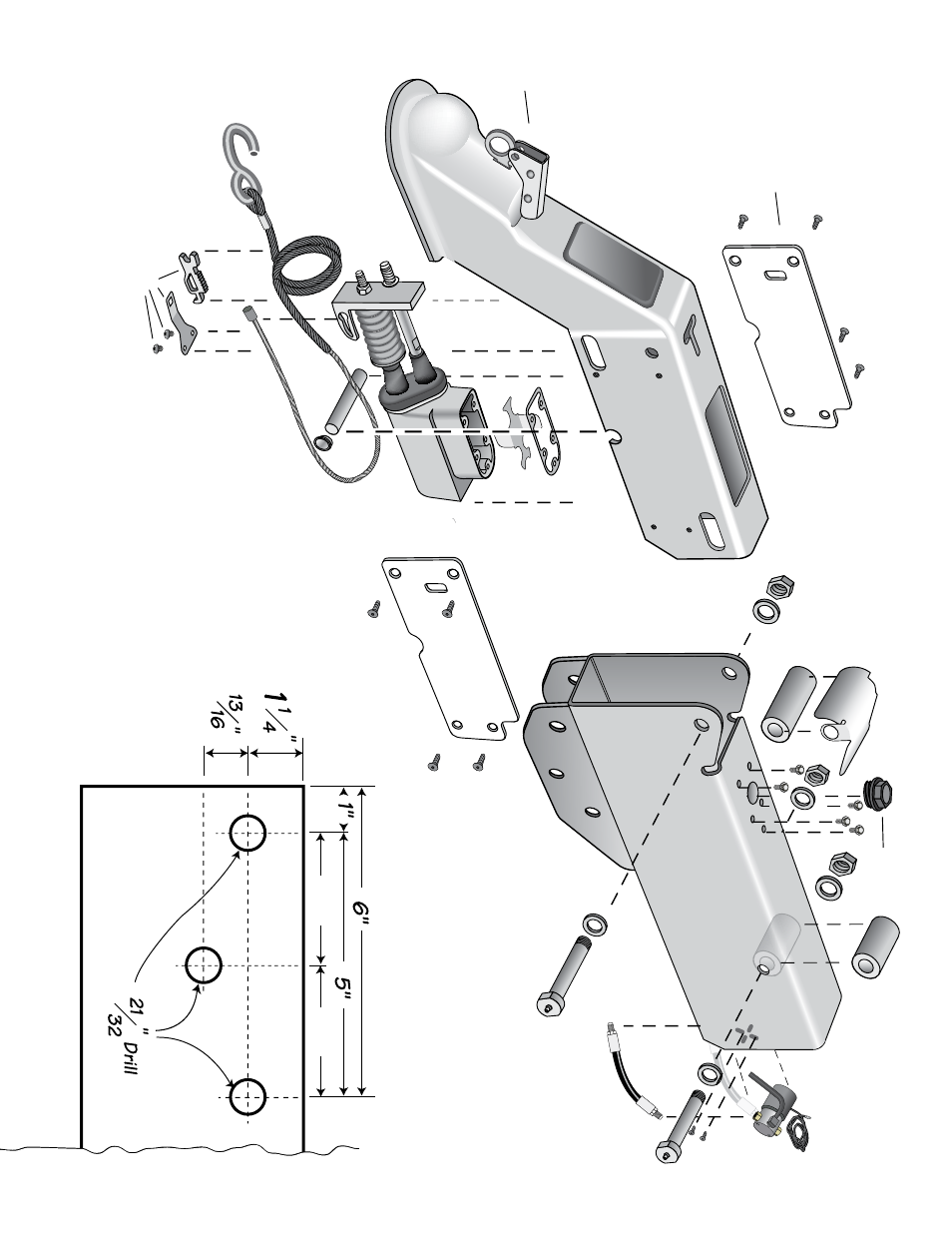

Model 125 Actuator Parts Detail
Tongue Dril Hole Pattern
