Tie Down 80LP - Manual (Page 5)

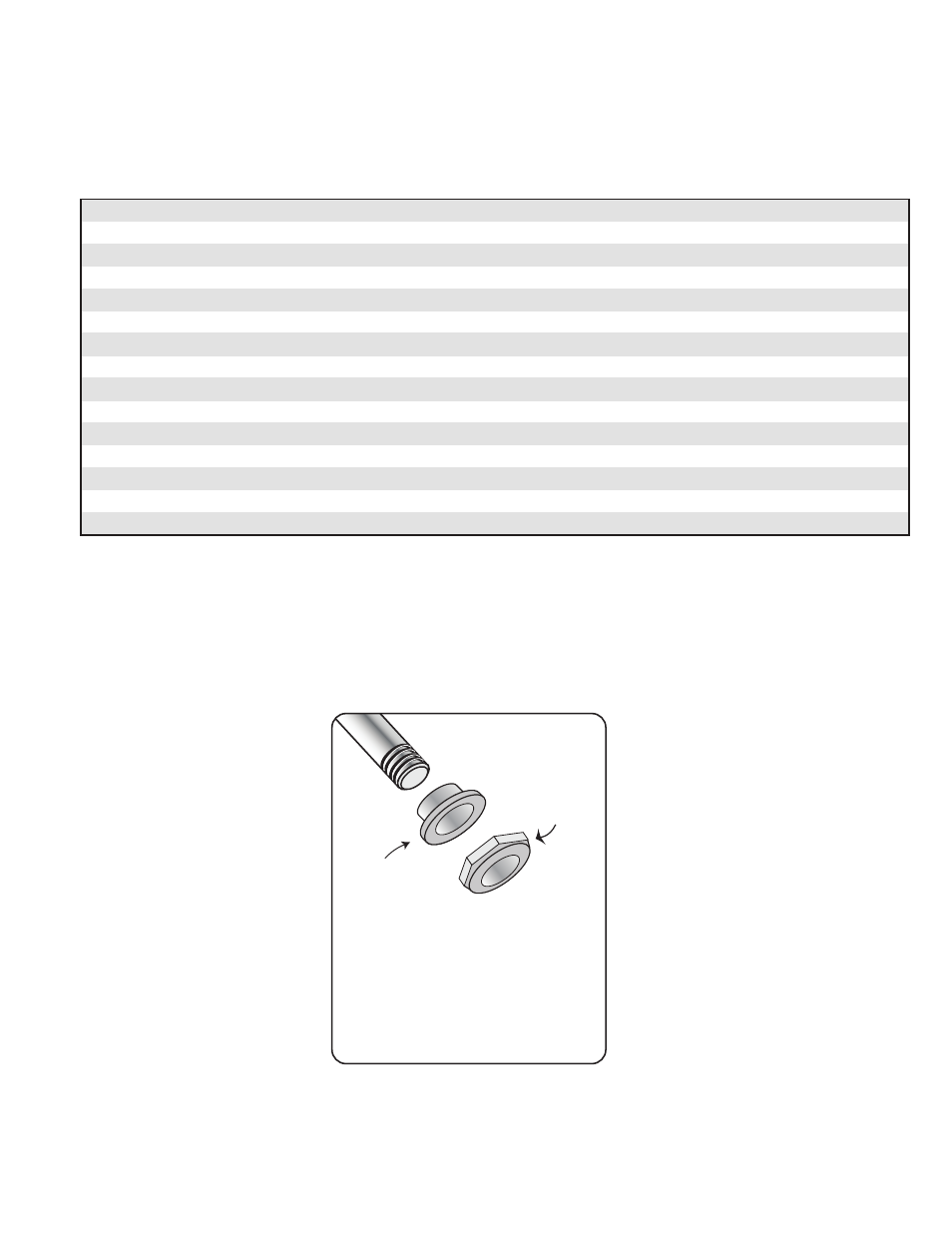

Jam Nut
Bushing
Caution!
NOTE: The jam nut has a lower profile,
and is thinner than a standard nut.
Caution! Do not use pneumatics with
medium or high torque ratings! Use
only low torque pneumatics, (1/4" drive
butterfly or ratchet wrench recommend-
ed) Torque jam nylock nut to 15-20
ft/lbs MAXIMUM.
1A & 4
7
1A
5
12
9
9
11
1A
1A
1A
1A & 3
1A & 2
1C
1B
10
10
8
8
8
9
9
6
6
031314,C125
1
Item # Part # Description
1A 17044K Disc Brake - Master Cylinder Repair Kit, Includes: all nuts, cuffs, pins and clips
1B 11286 Disc Brake Solenoid - used with disc brake actuators
1C 10880K Set Screw with lock nut
2 48986A Master Cylinder Cap with internal bladder
3 48984 Cover - E-Stop
4 48988 Slide Cuff
5 50313 E-Stop Cable
6 11135 Pin Bullet .56 x 4.3” with zerc fitting
7 48989-3 Pin Bullet .62” x 4.3” without zerc fitting
8 10544 Jam Nut for 11135 & 48989-3
9 48753B Bushing Short
10 48989-4 Bushing Long
11 50301 Safety Cable with stainless steel pin
12 48971 Latch Kit
