Tie Down 66 Actuator - Manual (Page 5)

Number Part No. Description
Quantity
Needed
1 47250 Master Cylinder Assembly - Includes all nuts, baffle
all seals, O-rings, gaskets and filler cap & seal 1
2 47251 Safety Stop & Spring 1
3 47252 Latch Kit Assembly 1
4 48801 Coupler Housing 1
5 47253 Roller Kit includes: 1
1/2" X 4 Grade 5 Super Lubed Bolts (2)
1/2" Hex Center Lock Nut (2)
Rollers (2)
6 50302 Cable Assembly (Breakaway)
7 50301 Safety Pin Cable
8 48802 Actuator Assembly Housing 1
9 47256 Actuator Covers Kit (front & back covers) 1
10 47257 Screw Kit, includes: 1
1/4" - 20NC X3/4" Hex Bolt (4)
10 - 24NC Self Tapping Screw (4)
11 47258 Master Cylinder Cap & Seal 1
Master Cylinder Cross Section
Dampener Cross Section
O-Ring
Wiper Seal
Piston Seal
Damper Piston
Piston Cup
Seal
Check Valve
O-Ring
090402,261

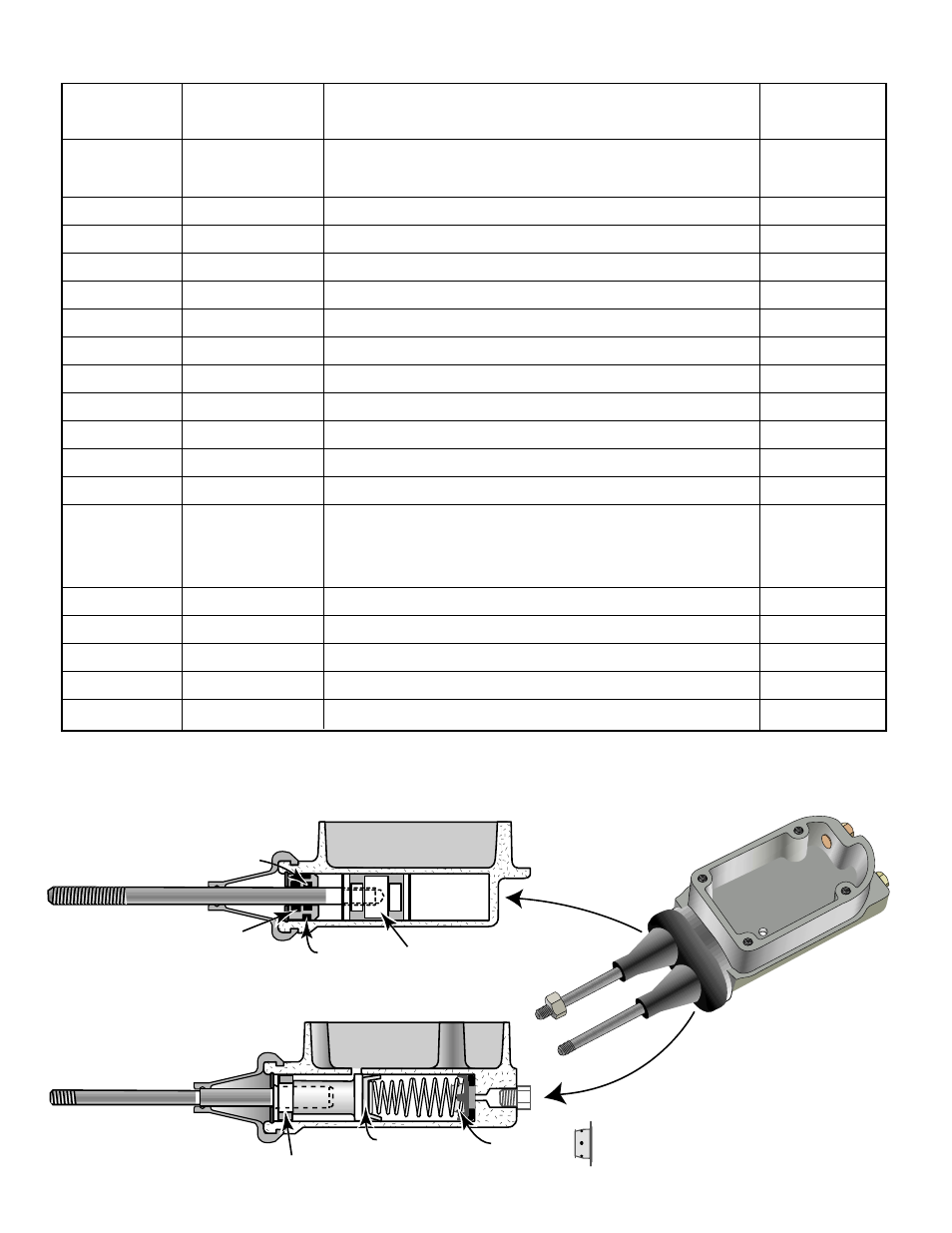

Model 66 Actuator Part List
