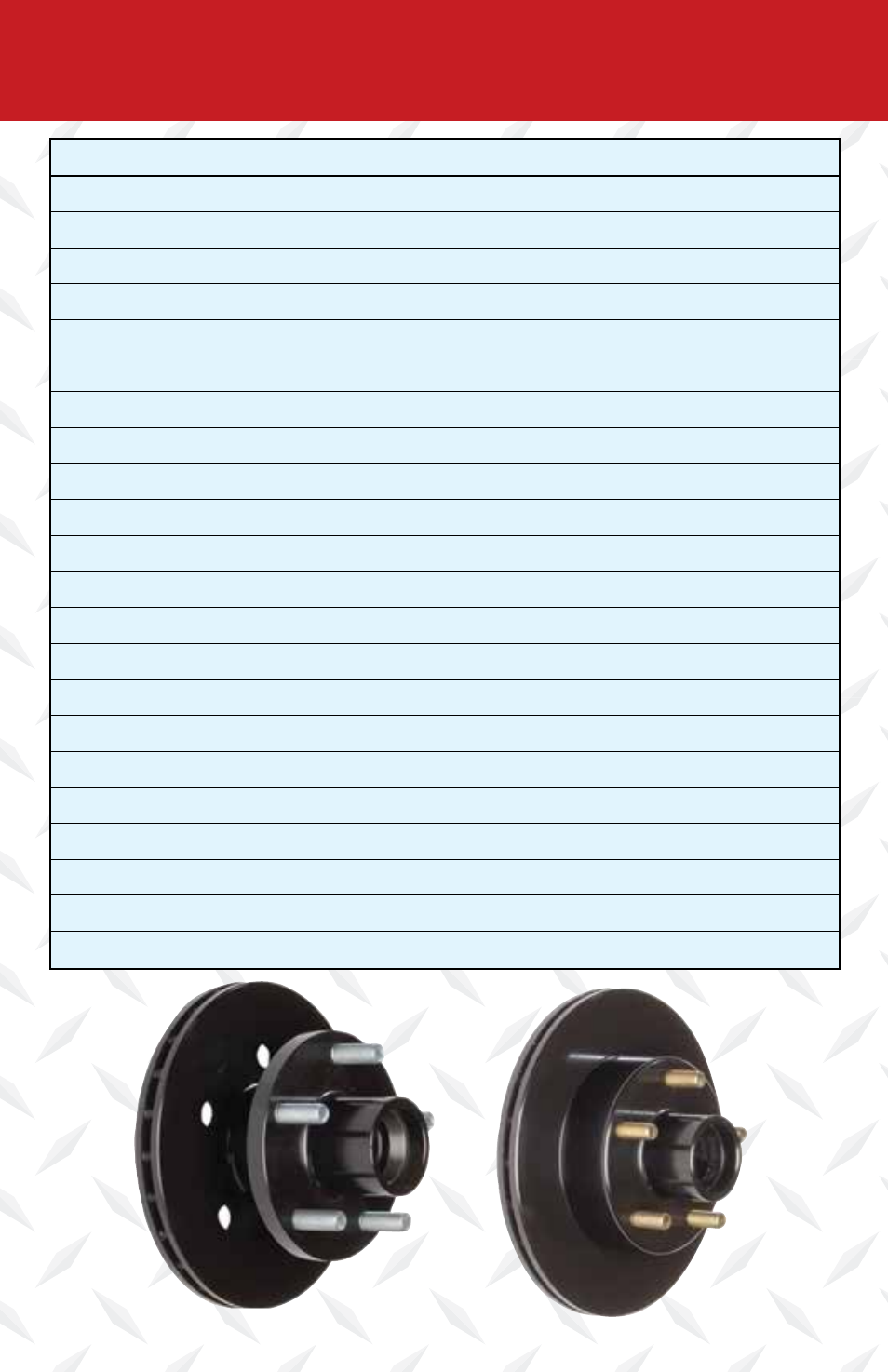

Eliminator Rotors
Part #
1
8.0” Vented Integral Rotor - E-coat
46902P
2
9.6” Vented Integral Rotor - E-coat
46845P
2
9.6” Vented Integral Rotor - GalvXL
46845X
2
9.6” Vented Integral Rotor (2150#) - E-coat
46845HEC
2
9.6” Vented Integral Rotor (2150#) - GalvXL
46845HX
3
9.6” Vented Turbo Lube/Vortex Integral Rotor - E-coat
46845TLP
3
9.6” Vented Turbo Lube/Vortex Integral Rotor - GalvXL
46845TLX
4
10” Vented Cap Rotor - E-coat
46246P
4
10” Vented Cap Rotor - GalvXL
46246X
4
10” Vented Cap Rotor - Stainless Steel
46885
5
12” Vented Integral Rotor - E-coat
46895P
5
12” Vented Integral Rotor - GalvXL
46895X
6
12” Vented Cap Rotor - E-coat
46247P
6
12” Vented Cap Rotor - GalvXL
46247X
6
12” Vented Cap Rotor - Stainless Steel
46887
7
12” Vented Integral Turbo Lube/Vortex Rotor - E-coat
46895TLP
7
12” Vented Integral Turbo Lube/Vortex Rotor - GalvXL
46895TLX
8
13” Vented Cap Rotor - E-coat
46890P
8
13” Vented Cap Rotor - GalvXL
46890X
8
13” Vented Cap Rotor - Stainless Steel
46889
9
13” Vented Integral Rotor - E-coat
46898EC
9
13” Vented Integral Rotor - GalvXL
46898X
#
Brake Part Descriptions
Part #
1
Caliper Assembly (8” rotor)
46901A
2
Caliper Assembly (9.6”, 10” & 12” rotors)
46304S
3
Caliper Assembly - Stainless Steel (9.6”, 10” & 12” rotors)
46804A
4
Caliper Assembly (13” cap rotor)
46802A
5
Caliper Assembly - Stainless Steel (13” cap rotor)
46803A
6
Stainless Steel Bleeder Valve
11246SS
7
Brake Line Fitting
11242
8
Stainless Steel Slider Pins
12114
9
Bushing 1/2” Bronze
10010
10 Caliper Piston
42080AZ
11 Piston Seal
17447
12 Piston Rubber Boot
17472
13 Ceramic/Stainless Steel Brake Pads
11334/11335
13 Organic/GalvX Brake Pads
11330/11331
14 Adjustable Banjo Assembly
11341
14A
Stainless Steel Banjo Bolt
11338
14B
Brass Banjo Fitting
11348
14C
Copper Crush Washer
11339
14D
O-Ring
17473
•
Turbo Lube Cap Assembly for 1250/1350/1750# rotors
48399A
•
Turbo Lube Cap Assembly for 3000# rotors
48395A
•
Turbo Lube Cap for 1250/1350/1750# rotors
48399
•
Turbo Lube Cap for 3000# rotors
48395
•
Oil Filling Plug for Turbo Lube Cap
48395-1
•
Vortex Lube Cap for 1250/1350/1750# rotors
48355BV
•
O-Ring for Vortex/Turbo Lube 1250/1350/1750# Caps
17476
•
Vortex Lube Cap for 3000# rotors
48357BV
•
Vortex Cap O-Ring (3000#)
17457
15 Mounting Bracket (8” Rotor)
44686G
16 Mounting Bracket (9.6” Integral Rotor)
44676G
17 Mounting Bracket (9.6” Integral Rotor, Two Hole)
44681X
18 Mounting Bracket (10” Cap Style, Two Hole)
44678G
19 Mounting Bracket (10” Cap Style, Rotor)
44480G
20 Mounting Bracket (12” Cap Style or Integral Rotor)
44478X
21 Mounting Bracket (13” Cap Style or Integral Rotor)
44473X
Replacement Kits:
Organic Brake Pad Kit (boxed kit for 1 axle)
81148
Ceramic Brake Pad Kit (boxed kit for 1 axle)
81149
Caliper Rebuild Kit
46304RB
Caliper Rebuild Kit for 46802A & 46803A
46802RB
1
2
7
