6lcd display – ThermoWorks TR-73U 2 CHANNEL LOGGERS WITH USB User Manual
Page 15
6

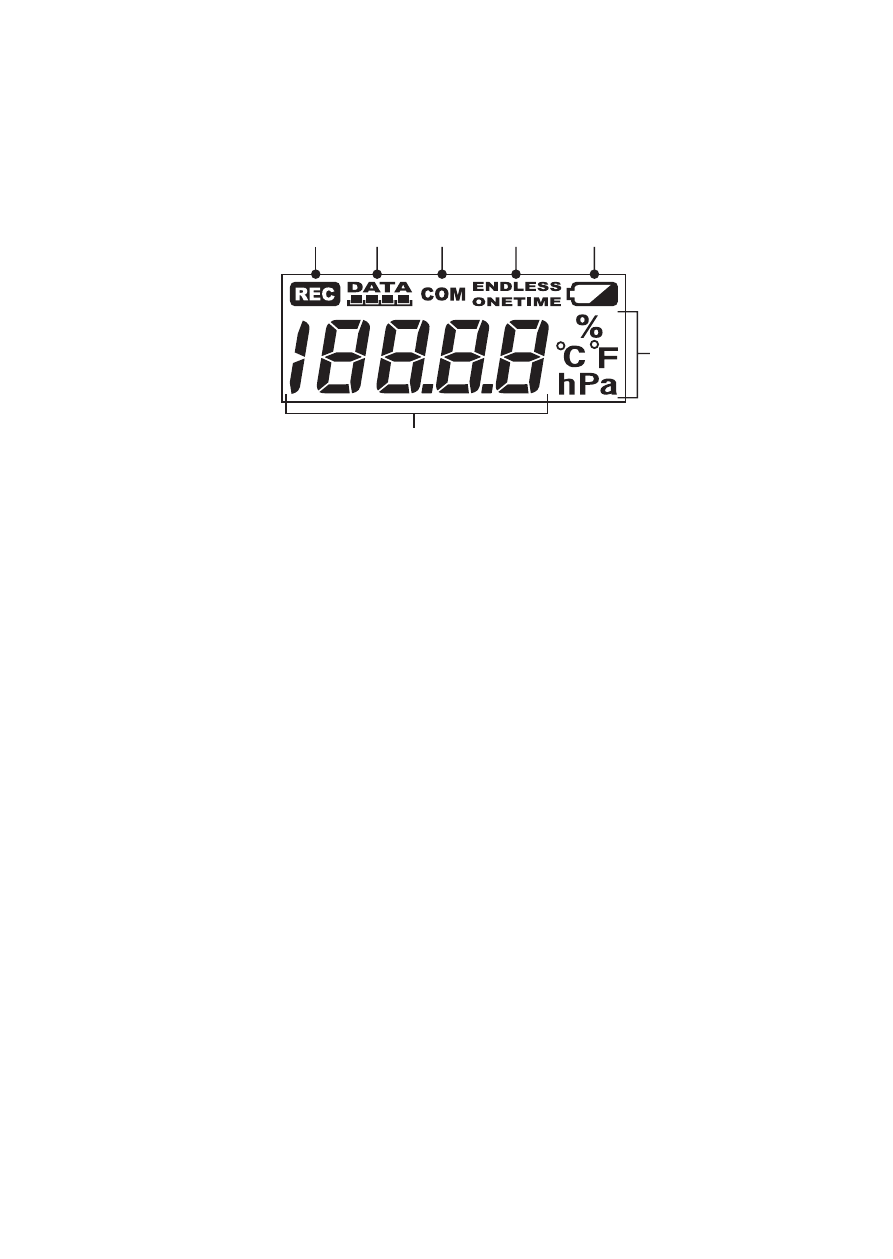

LCD Display
Ԙ
ԙ
Ԛ
ԛ
Ԝ
ԝ
Ԟ
ӱ Recording Mark
The recording condition will appear.
ON
ȇRecording in progress.ȁBLINKINGȇWaiting for programmed start.
Ӳ Data Capacity Scale
After every 2000 readings the scale will be marked from left to right.
ӳ COM Mark
This will appear when data is being sent or received.
ON
ȇUSB cable is connected.ȁ
BLINKING
ȇIn communication with computer.
Ӵ Recording Mode
One-time Mode
ȇ When the number of recorded readings reaches 8000, [FULL] will
appear in the unit's LCD display and recording will automatically stop.
Endless Mode
ȇ When the number of recorded readings reaches 8000, the oldest
data readings will be overwritten and recording will continue.
ӵ Battery Life Warning Signal
When the battery power becomes low, a mark will appear on the LCD of the main unit.
If the battery power becomes even lower, [SLP] will appear and normal operations will
stop.
Please change the battery as soon as the Battery Warning Mark appears.
Ӷ Unit of Measurement
The unit of the measurement for the display will appear.
ӷ Measurements and Messages Area
Current measurements or operational messages such as [FULL] or [SLP] will appear.
