www.teejet.com
14
FieldPilot
®
6. INSTALL TANK ADAPTER AND HOSE
Install tank hose
(S)
to T port on the FieldPilot valve and route up and over to left side of machine by radiator
fan. Remove original hose from tank fitting and install Tee adapter
(AA)
. Then connect hose
(S)
and
original hose to Tee adapter
(AA)
. Use caps and plugs as necessary to reduce amount of oil leakage during
installation.

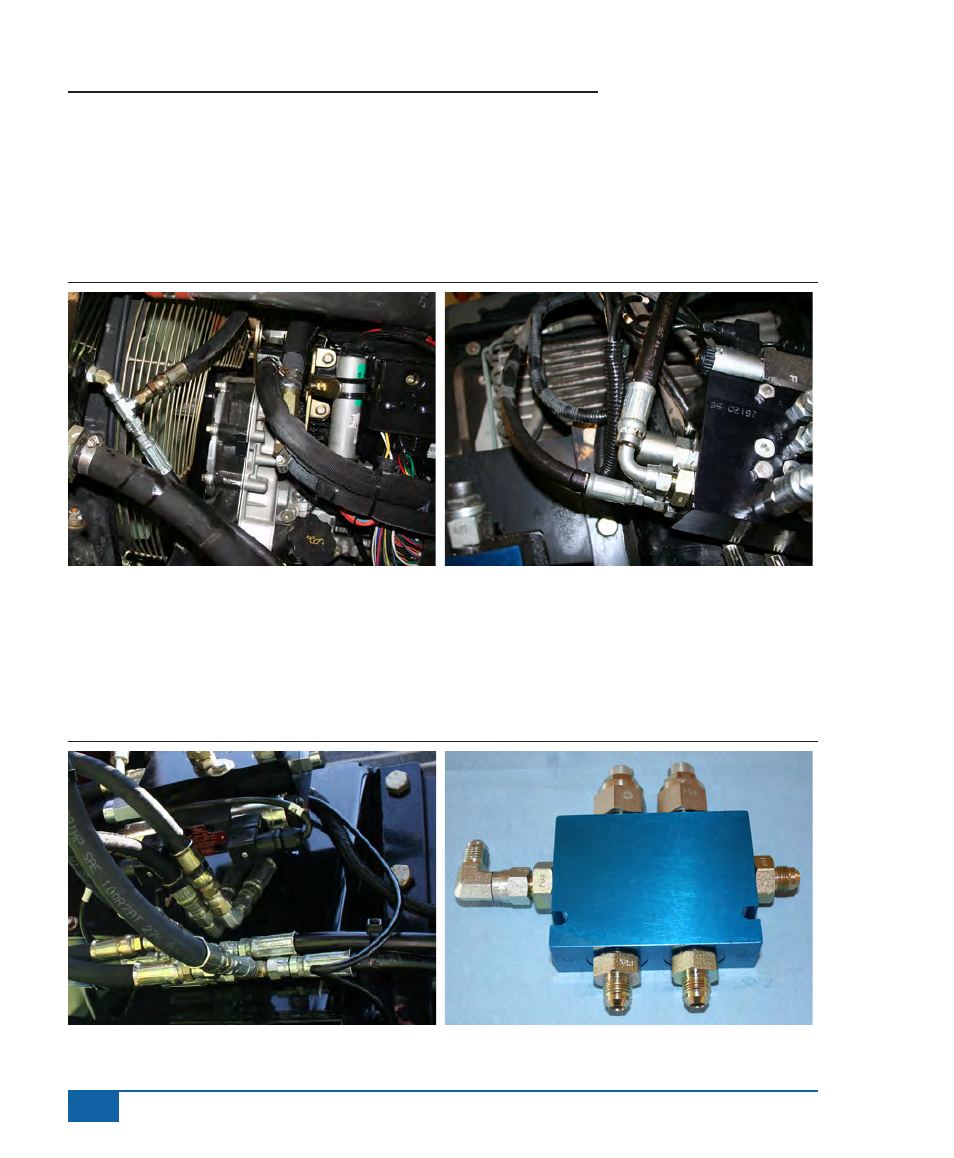

Figure 1-10: Install Tank Fitting and Hose
S
AA
S
6A. INSTALL COUNTERBALANCE VALVE HOSES
Install hose
(Y)
from port V1 to
(FF)
fitting on the left hose installed in Step 4. Install hose
(X)
from port
V2 to
(FF)
fitting on the right hose installed in Step 4. Install hose
(W)
from port C1 to branch of lower
Tee adapter
(AA)
installed in Step 4. Install hose
(W)
from port C2 to branch of upper Tee adapter
(AA)
installed in Step 4.
Figure 1-11: Install Counterbalance Valve Hoses
Y
X
W
W
C2 C1
V1
V2
