FieldPilot ®
4. INSTALL STEERING OUTPUT ADAPTERS
Locate the hoses that run just under the FieldPilot valve mounted in Step 3. Disconnect the two hoses
running up to the orbital from the Tees. Install adapters (FF) in these two hoses. Leave the Tee’s in the other
lines and install on them an additional Tee Adapter (AA) as illustrated.

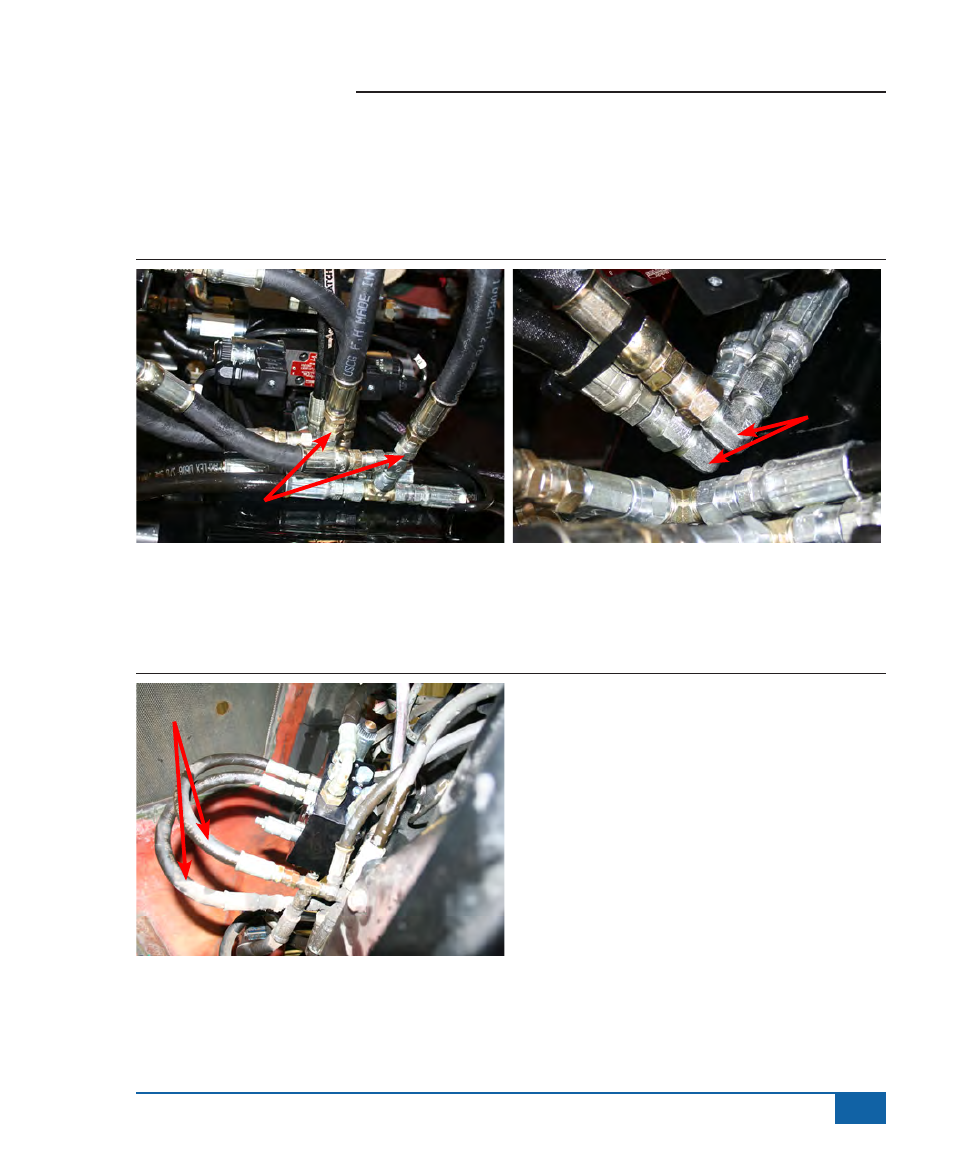

Figure 1-8: Installing Steering Output Fittings
AA
FF
5. INSTALL STEERING OUTPUT HOSES
Install hoses (V) to branches of the original Tees and route them to ports A and B of the hydraulic control
valve. Be sure hoses are secure and route them for problem free operation.
Figure 1-9: Install Steering Output Hoses
V
