www.teejet.com
9
FieldPilot ®
INSTALLATION
If there are questions concerning the installation of the FieldPilot system on this vehicle, or due to
the changes in component specifications the parts supplied in the kit are not exactly as presented
in this document, please contact your dealer or TeeJet Customer service representative for
clarification before installation. TeeJet Technologies is not responsible for misuse or incorrect installation of
the system.
NOTE: BE VERY CAREFUL TO ABSOLUTELY SECURE ALL CABLES AND HOSES SO THAT THEY
DON’T INTERFERE WITH THE MANY MOVING PARTS OF THE MACHINE!
1. PREPARE THE FIELDPILOT VALVE
Make sure the hydraulic control block is clean and free of dust. Remove the plastic plugs and install adapters
(CC) in the A, B and T ports. Install the larger elbow adapters (EE) in the EF and P ports.
NOTE: All references to left and right are stated as if the user is seated in the driver’s seat.

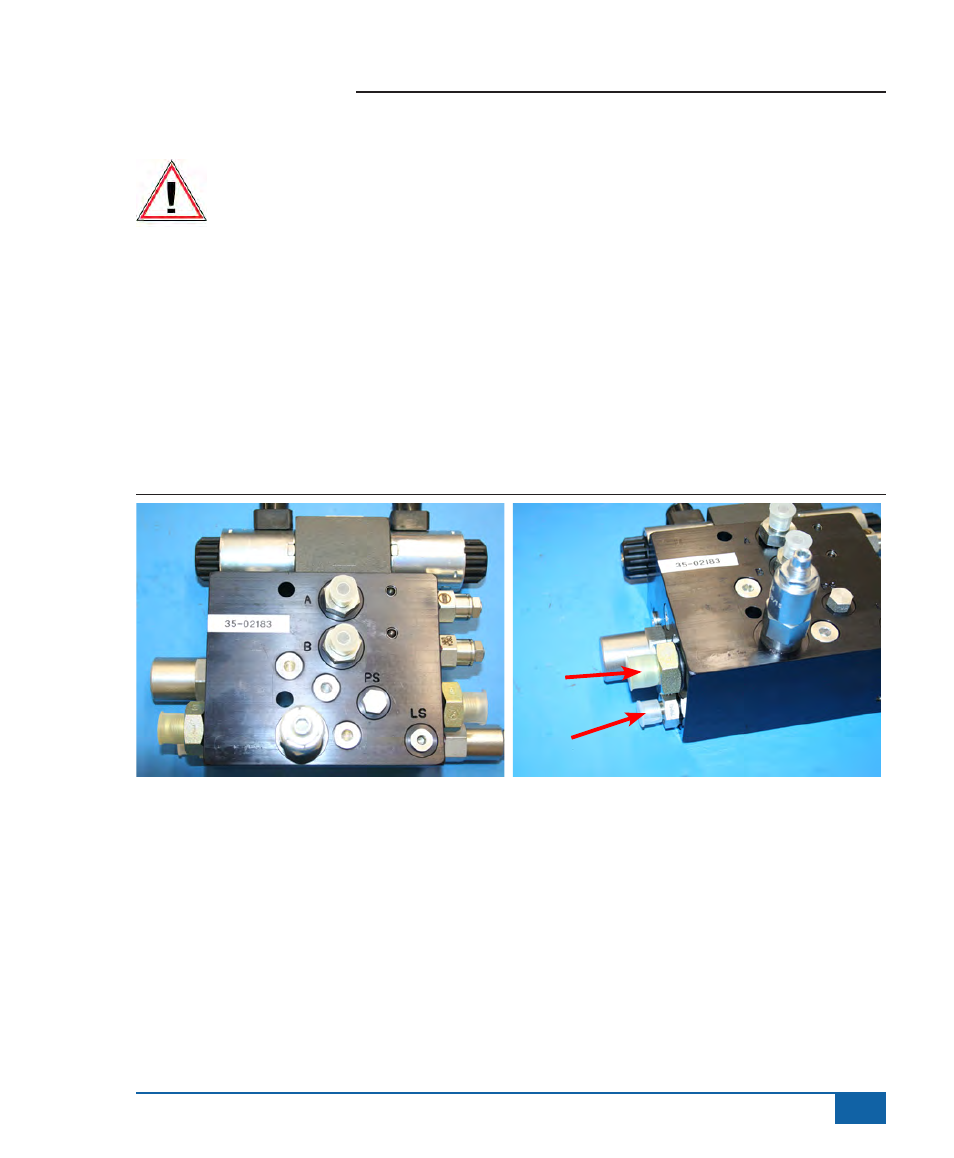

Figure 1-2: Preparing Hydraulic Control Block
CC
CC
EE
CC
CC
CC
EE
