FieldPilot
®
1A. PREPARE THE COUNTERBALANCE VALVE
Make sure the counterbalance valve block is clean and free of dust. Remove the plastic plugs and install
adapters
(CC)
in the four ports (V2, V1, C2, C1). Install adapter
(BB)
on the fitting in port V2.

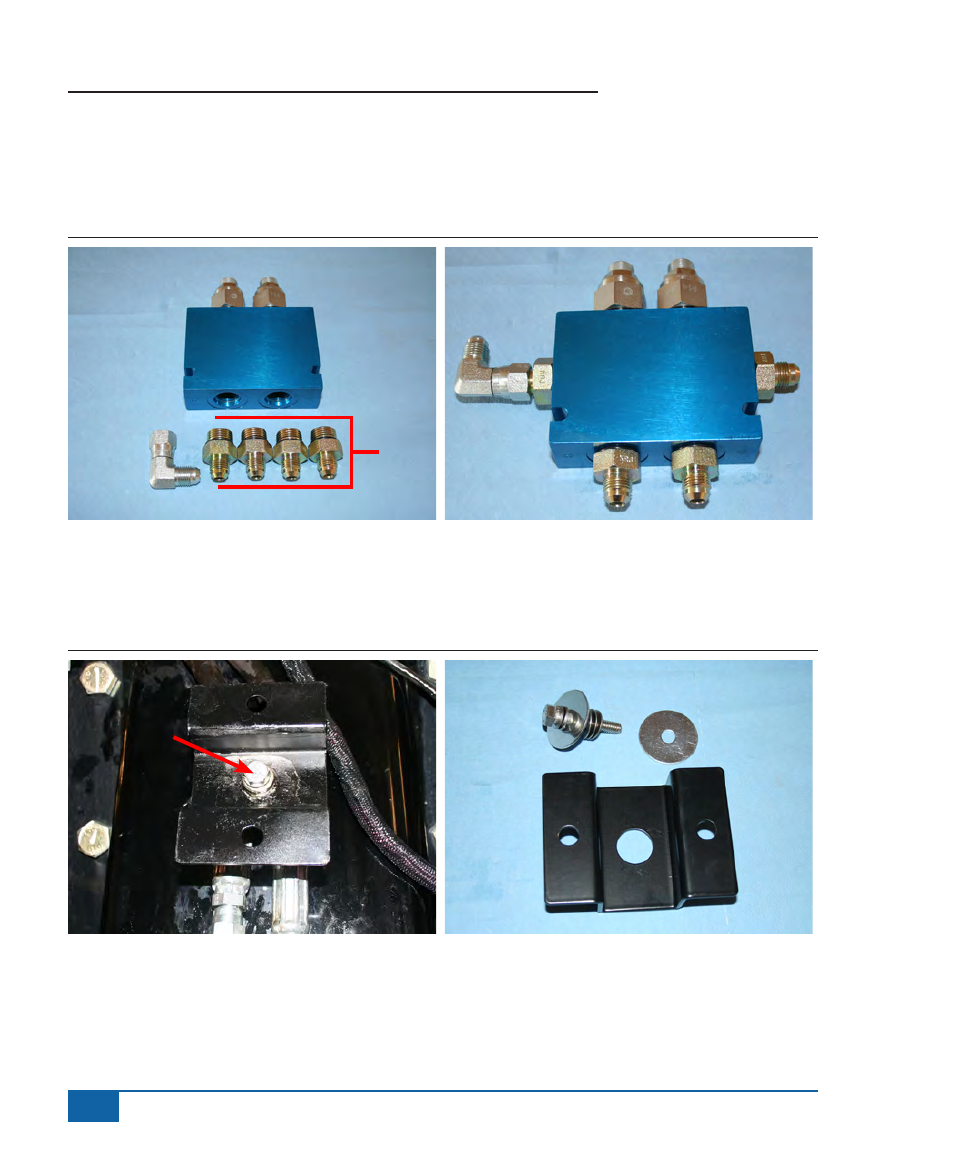

Figure 1-3: Preparing the Counterbalance Valve
BB
C2 C1
V1
V2
2. INSTALL MOUNTING BRACKETS FOR FIELDPILOT VALVE.
On the front of the machine, remove the bolt that holds the bracket and the steering hoses on the front cross
beam. Using parts
(C, E, K, N)
, mount the bracket
(Q)
on the cross beam.
Figure 1-4: Install Mounting Brackets for Hydraulic Control Valve
Q
C, E,
K, N
Q
C, E,
K, N
CC
