17
FieldPilot ®

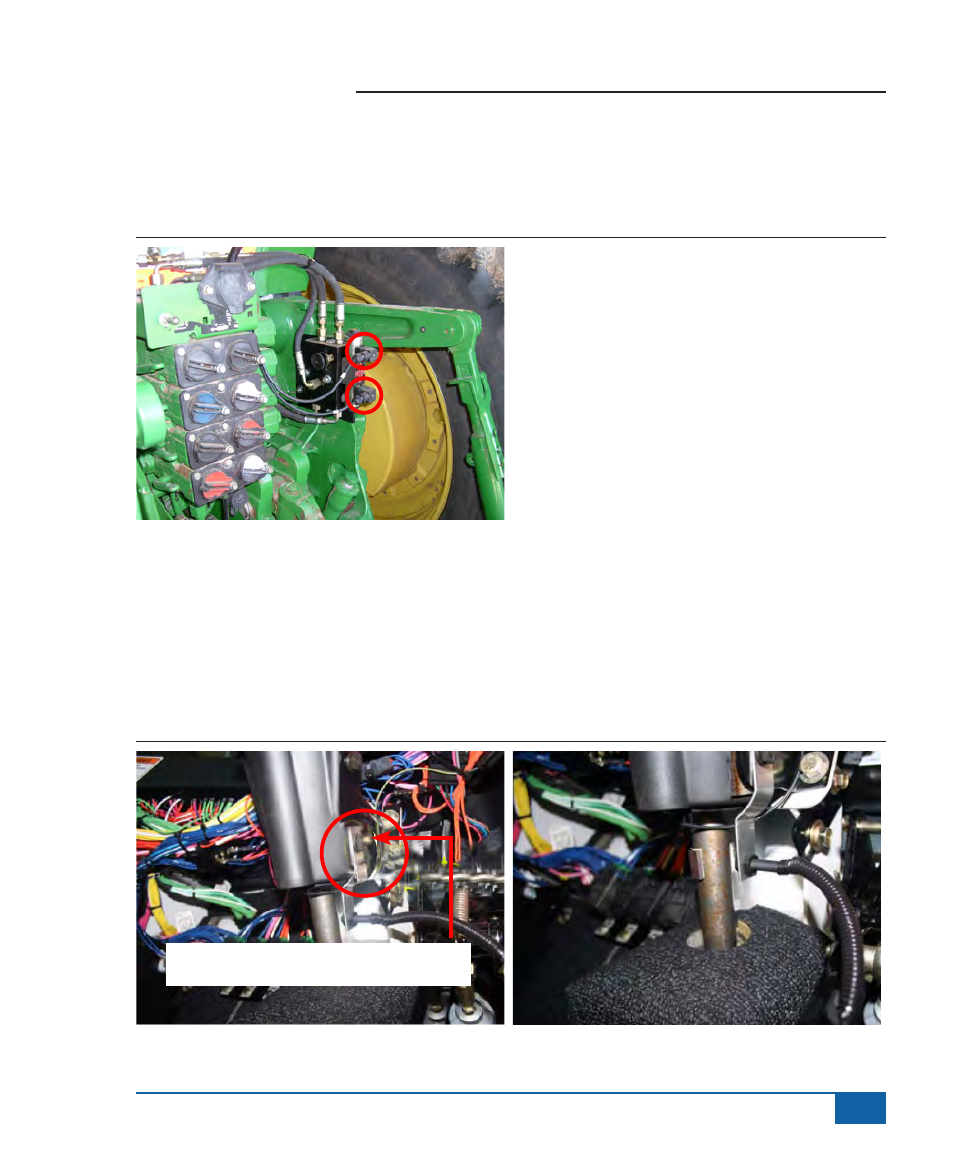

10. INSTALL THE VALVE CONTROL CABLE
The valve control cable (F) will connect to the solenoids on the FieldPilot valve and will route into the rear of
the cab.
Figure 1-15: Control Cable Location
11. INSTALL STEERING DISENGAGE SENSOR (KIT 91-07011)
On the right hand side of the steering column in the cab, remove the lower bolt as indicated. Drill a hole in
the aluminum bracket from Kit 91-07011 for the bolt to fit through. Install the aluminum bracket and bend it
as illustrated. Attach the magnets (included) to the steering shaft. The magnets may need to be cut in two.
If the magnets are labeled North and South, alternate between them. The more magnets installed, the more
sensitive the disengage feature. Install the sensor and adjust to 1/8″ clearance. Connect the sensor to the
cable labeled Steering Wheel Sense. Tie up the cable so it does not interfere with any moving parts.
Figure 1-16: Figure 1-16: Installing Steering Disengage Switch
Bolt to be removed
