6. TRACTORS NOT USING THE “POWER BEYOND” OPTION
If the tractor is not using the John Deere “Power Beyond” option, remove the plug from the load sense port
on the top of the rear tractor hydraulic valve block and install the John Deere shuttle disc R196840 (U) and
spacer RE58763 (T) into the port opening (threaded end up). Install one of the adapters (S) in the port.
Install the 90° adapter (O) on adapter (S) with the opening facing the right side of the tractor.
Remove the plug from the Tank port on top of the rear valve block and install an adapter (S) in this opening.
Remove the plug from the pressure port on top of the valve block and install an adapter (S) in this opening
as well.

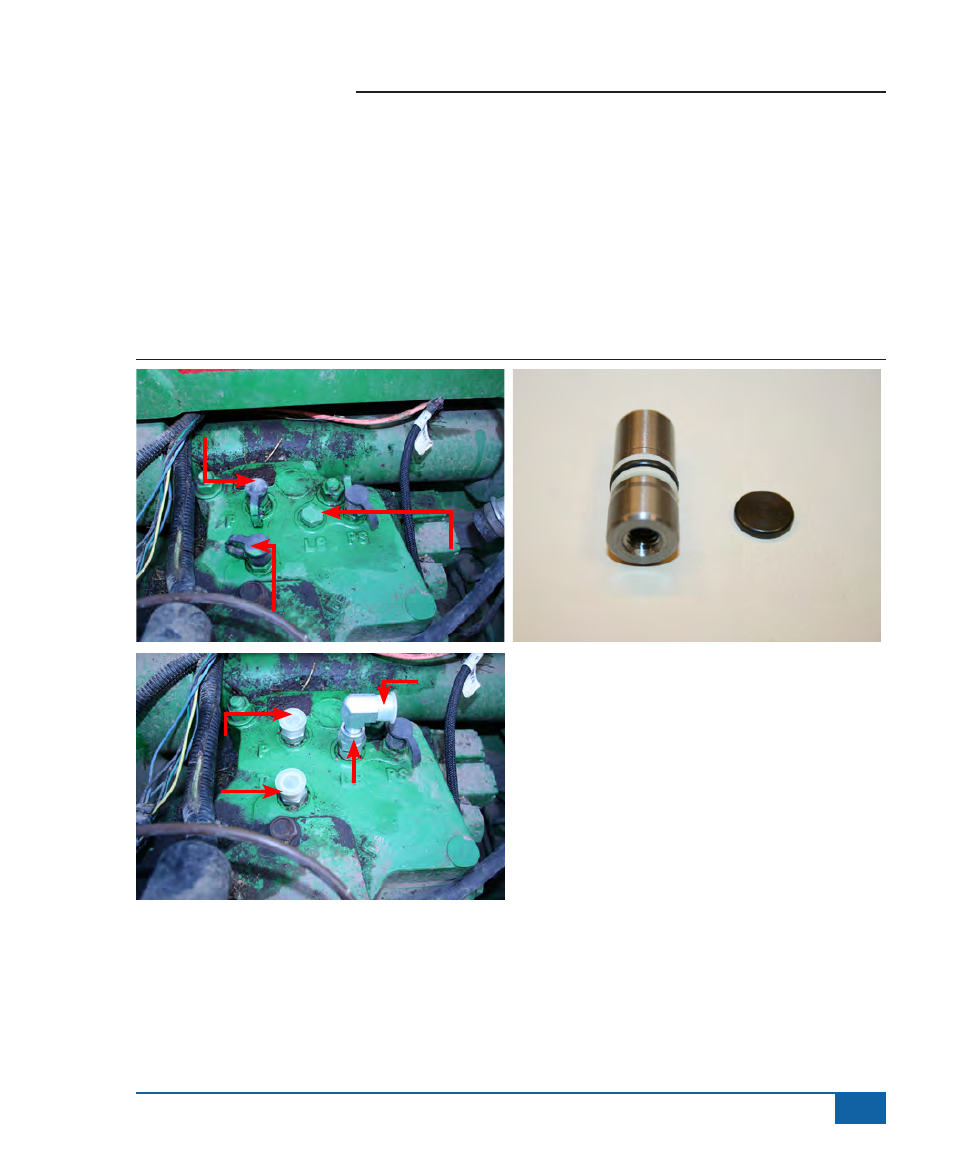

Figure 1-8: Modifying without Power Beyond Installation
P Port
T Port
LS Port
T
U
S
S
O
