2. MOUNT THE VALVE BRACKET ON THE VEHICLE

Find the two holes in the rear casting gusset plate on the right side of the tractor. Using the two bolts

(G)

with nuts

(H)

and washers

(B)

, attach the bracket

(I)

so that the mounting holes for the valve are up and to

the rear.

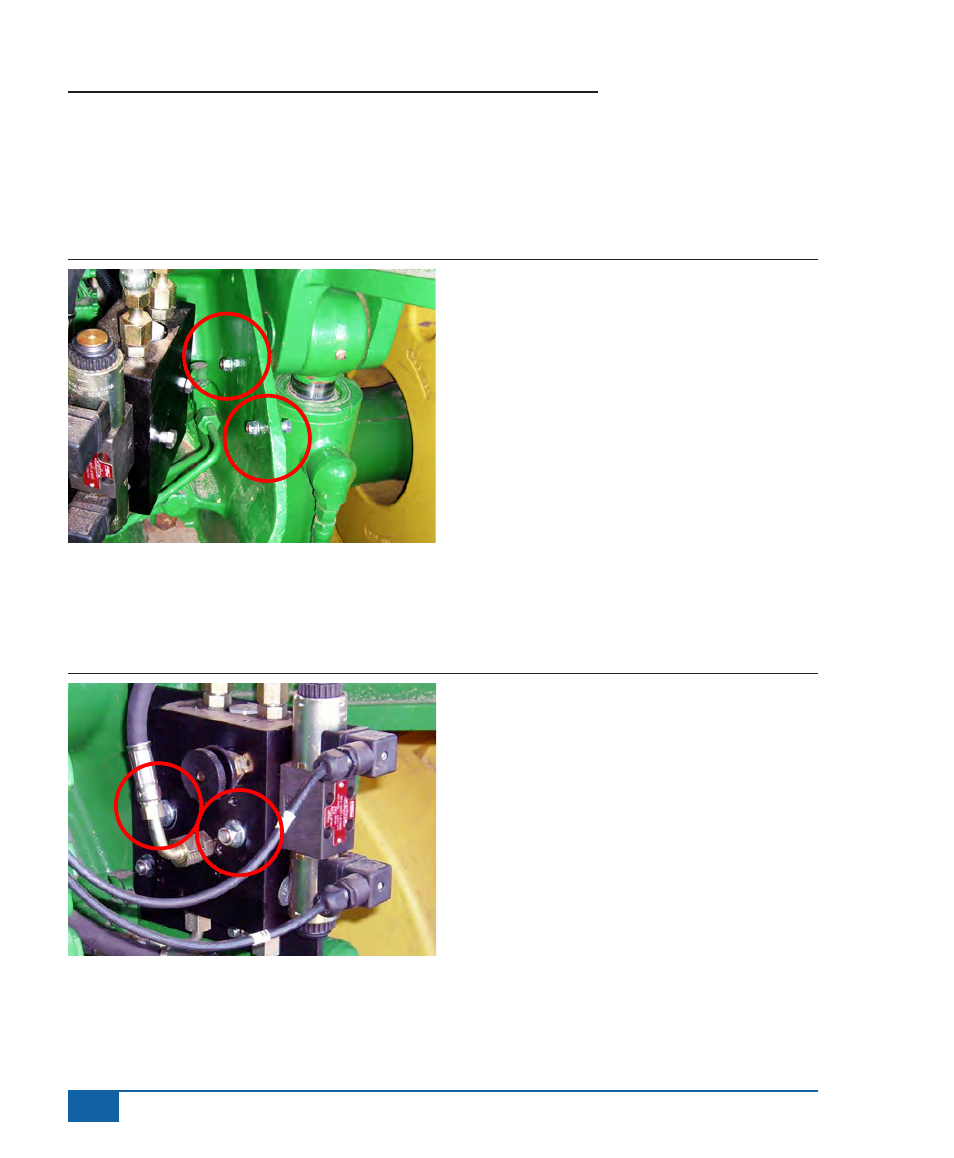

Figure 1-3: Mount the Valve Bracket

3. INSTALL FIELDPILOT VALVE ON MOUNTING BRACKET

Using the bolts and nuts

(G)

and

(C)

attach the FieldPilot valve to the bracket

(I)

so that Electronic actuator

is positioned to the rear and the manual adjust knob is positioned toward the center of the tractor.
Figure 1-4: Install Mounting Bracket on FieldPilot Valve
