8. FIELDPILOT VALVE HOSE CONNECTIONS
The Pressure port of the FieldPilot Valve (D) will be connected to the pressure port on top of the rear tractor
hydraulic block using one hose (K) . The T port from the FieldPilot Valve (D) will be connected to the open
fitting on the tank return port on the top of the rear tractor hydraulic block using the second hose (K) . The LS
port on the FieldPilot Valve (D) will be connected to the open fitting at the load sense port on the top of the
rear tractor hydraulic block using hose (L) . Refer to the hydraulic diagrams to understand how the FieldPilot
Valve (D) should fit in the system.

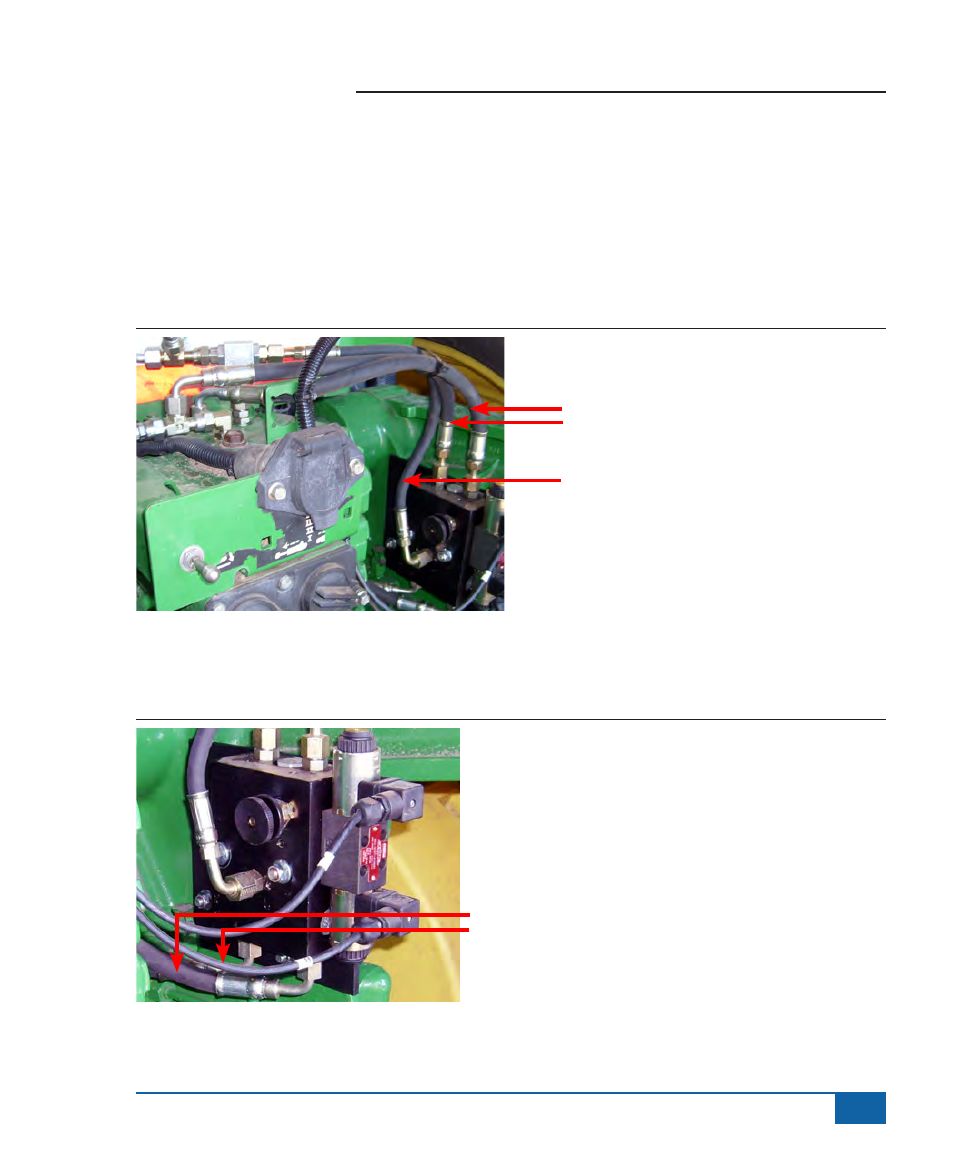

Figure 1-11: Install FieldPilot Valve Hoses
K
L
9. INSTALL STEERING OUTPUT HOSES
Kit hoses (J) are first connected to the A and B steering ports on the FieldPilot Valve (D) .
Figure 1-12: Install Steering Output Hoses
J
