14
FieldPilot ®
9. iNStall the ValVe CONtrOl CaBle
The valve control cable (F) will connect from the solenoids on the FieldPilot valve and will route into the rear
of the cab.

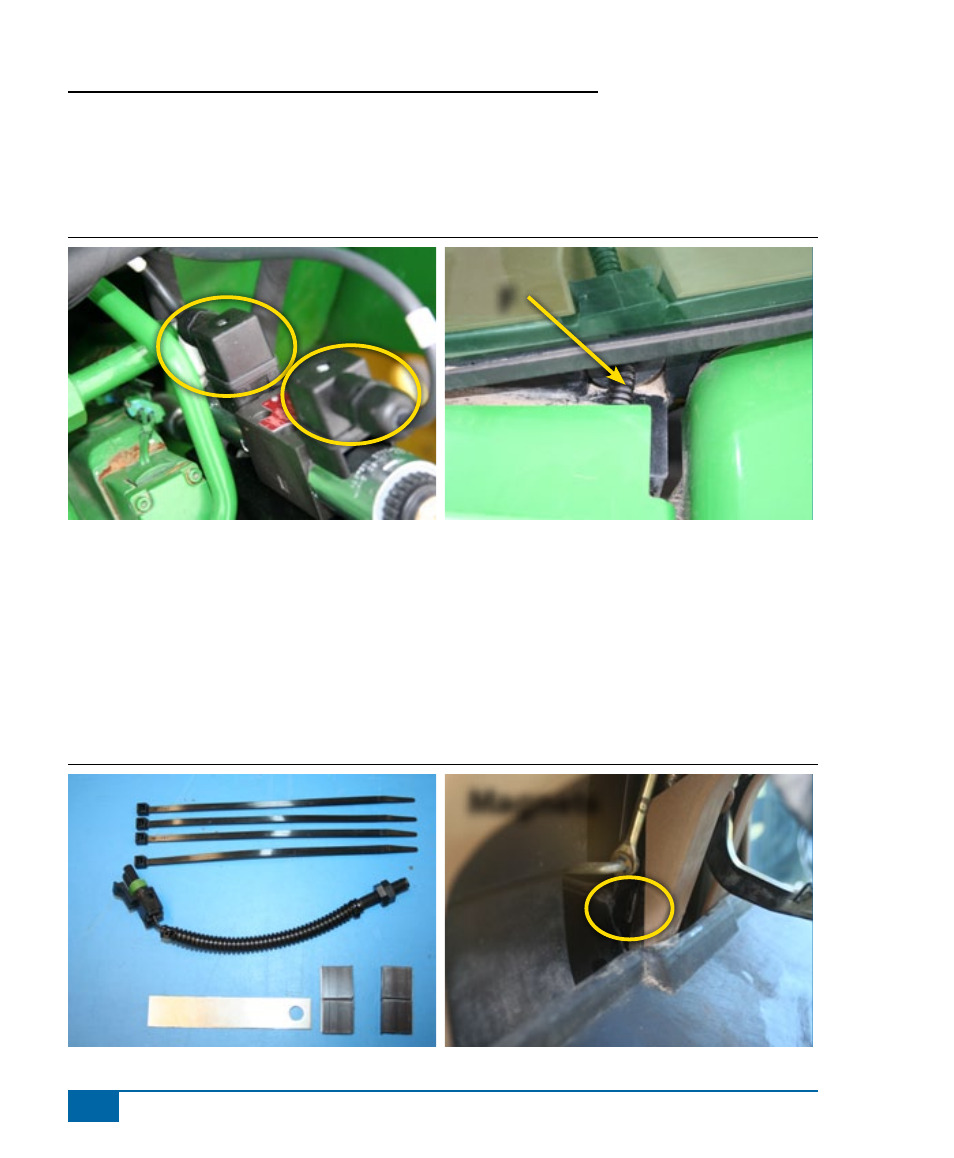

Figure 1-12: Install The Valve Control Cable
10. iNStall SteeriNG diSeNGaGe SeNSOr
The steering disengage sensor (V) will mount near the bottom of the steering shaft. Check clearance of the
clutch pedal before installing. Mount 3 or 4 magnets to the steering shaft. It may be best to cut the magnets
in half. Bend the aluminum mounting bracket as illustrated, and mount the disengage sensor as shown. Set
the clearance between the sensor and magnets to 1/8” and rotate the steering wheel in both directions to be
sure that the sensor does not contact the magnets or the shaft. Connect the sensor to the Steering Control
Module Cable labeled ‘Steering Wheel Sense’ and secure the cables in position so that they cannot interfere
with the rotation of the steering shaft.
Figure 1-13: Install Steering Disengage Switch (Kit 91-07011)
F
Magnets
