Page 12: Mount the fieldpilot valve
www.teejet.com
10
FieldPilot
®

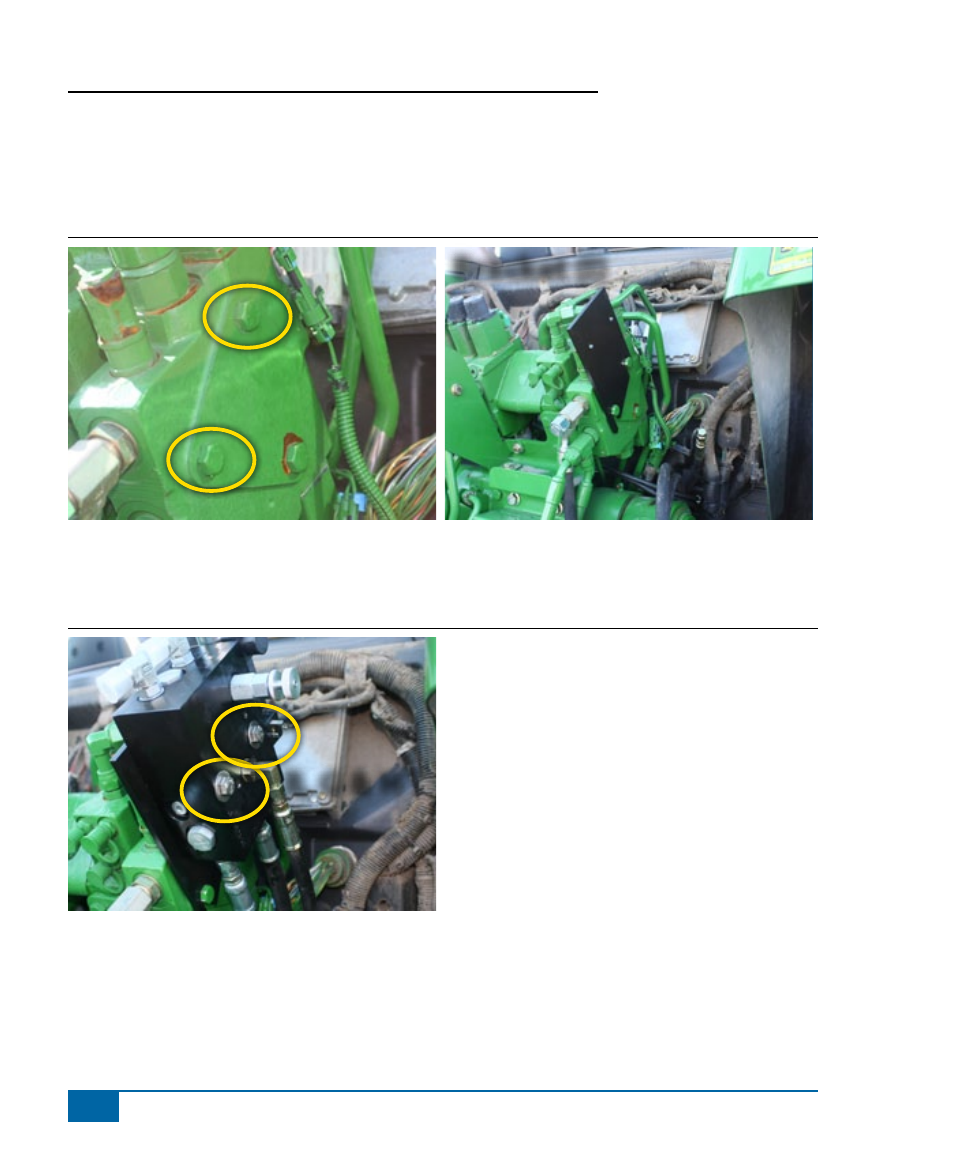

3. iNStall MOUNtiNG BraCKet
Locate the three bolts on the right side of the hydraulic block stack. Loosen the two bolts indicated and slide
bracket
(I)
under the head of the bolts and retighten them.
Figure 1-6: Install Mounting Bracket
4. MOUNt the FieldPilOt ValVe
Use parts
(B, G, & H)
mount the FieldPilot valve
(C)
to the bracket
(I)
as shown.
Figure 1-7: Mount The Fieldpilot Valve
Bracket (i)
B, G & H
