Page 14: Install the steering hoses and adapters
www.teejet.com
12
FieldPilot
®
7. iNStall the PreSSUre hOSe
Connect hose
(K)
from the P port of Power Beyond block to the P port of the FieldPilot valve.

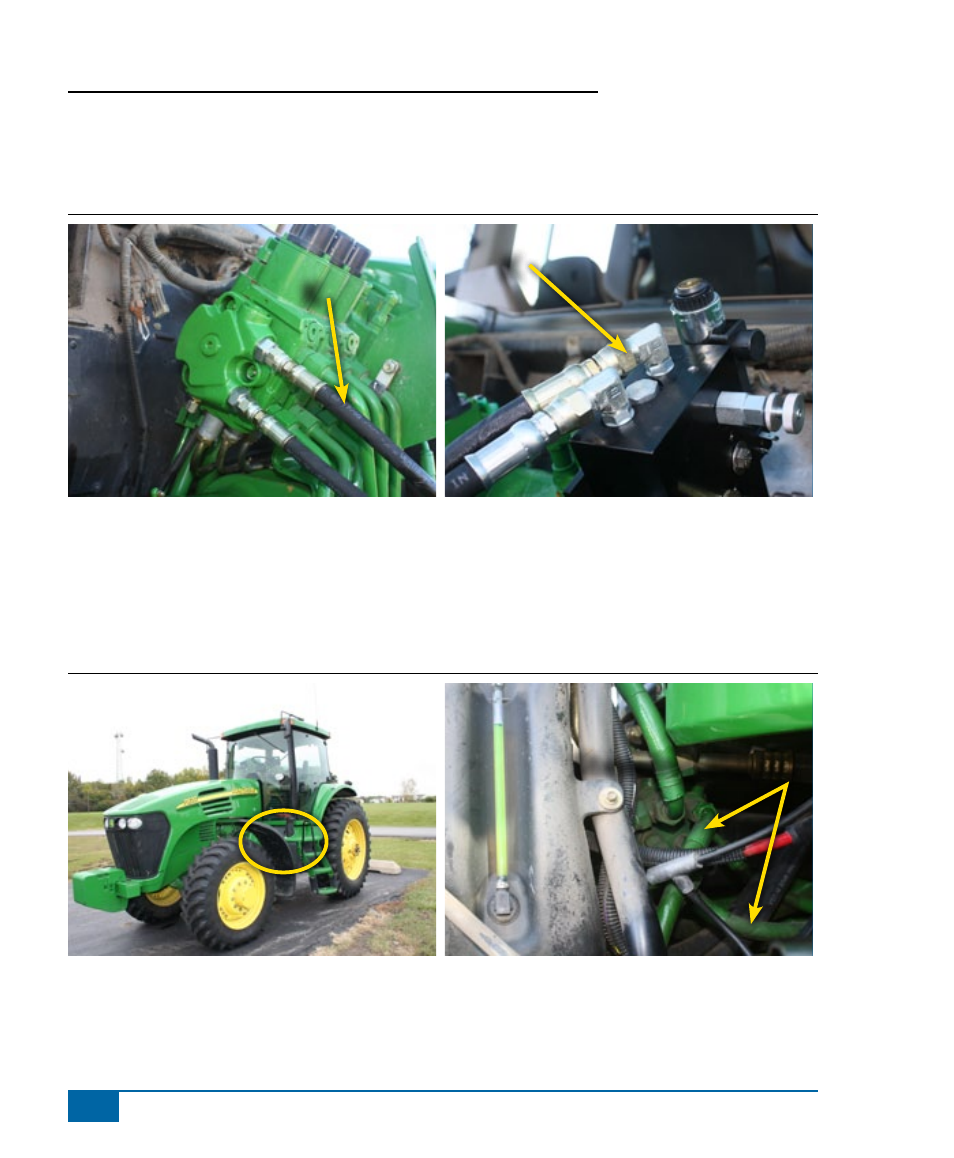

Figure 1-10: Install The Pressure Hose
8. iNStall the SteeriNG hOSeS aNd adaPterS
Locate the steering hose connections just under the front left side of the cab. Disconnect the two steering
hoses (make sure to label them first) and install run tees
(N)
. Reconnect original hoses to the run of the
tees. Then connect hoses
(J)
from the branch of the tees to the A & B ports of the FieldPilot valve. The
hoses will route underneath the cab.
Figure 1-11: Install The Steering Hoses And Adapters
K
K
steering Hoses
