www.teejet.com

FieldPilot

9. INSTALL STEERING DISENGAGE SENSOR

Remove the shields around the steering column in the cab. Mount the bracket from kit

(V)

as shown. Glue

magnets to the steering shaft (the magnets will need to be cut in half because the shaft is small). Install the

sensor in the bracket. Set the clearance between the magnet and the sensor as close to ⅛″ as possible.

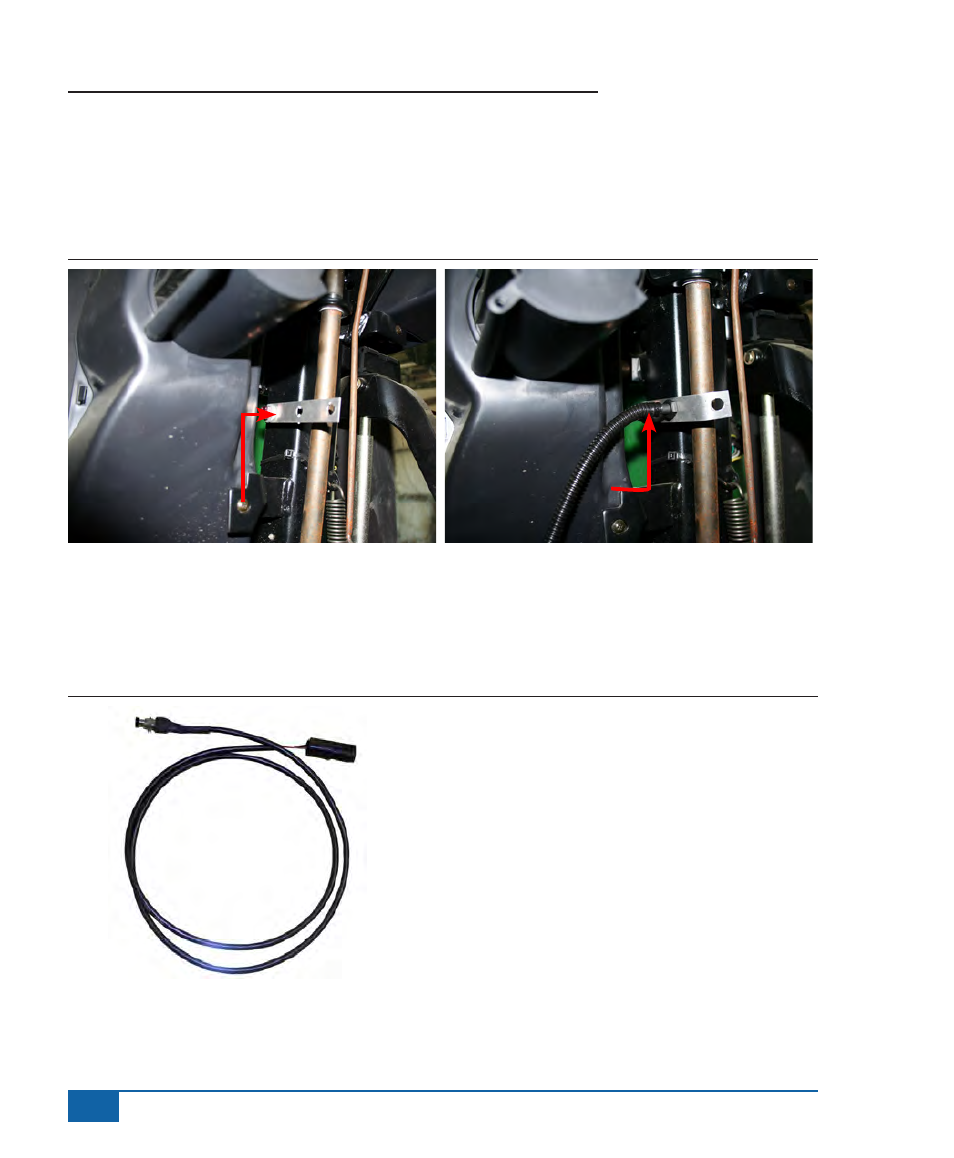

Figure 1-10: Install Steering Disengage Sensor

Bracket

Sensor

10. INSTALL STEERING ENGAGE/DISENGAGE SWITCH

Connect item

(A)

to the connector on the SCM harness labeled Remote Engage/Disengage. Install the push

button switch in a location that is easily accessible during operation of the machine. Optional foot switch 32-

04020 can be used in place of switch

(A)

if desired.

Figure 1-11: Install Steering Engage/Disengage Switch
