5. INSTALL PRESSURE HOSE AND ADAPTERS
Pressure will come from a valve in the middle underneath the machine. Locate this valve and disconnect the
hose as shown. Install the run tee
(P)
and reconnect the original hose to the run of the tee. Connect hose
(K)
from the branch of the tee to the P port of the FieldPilot valve.

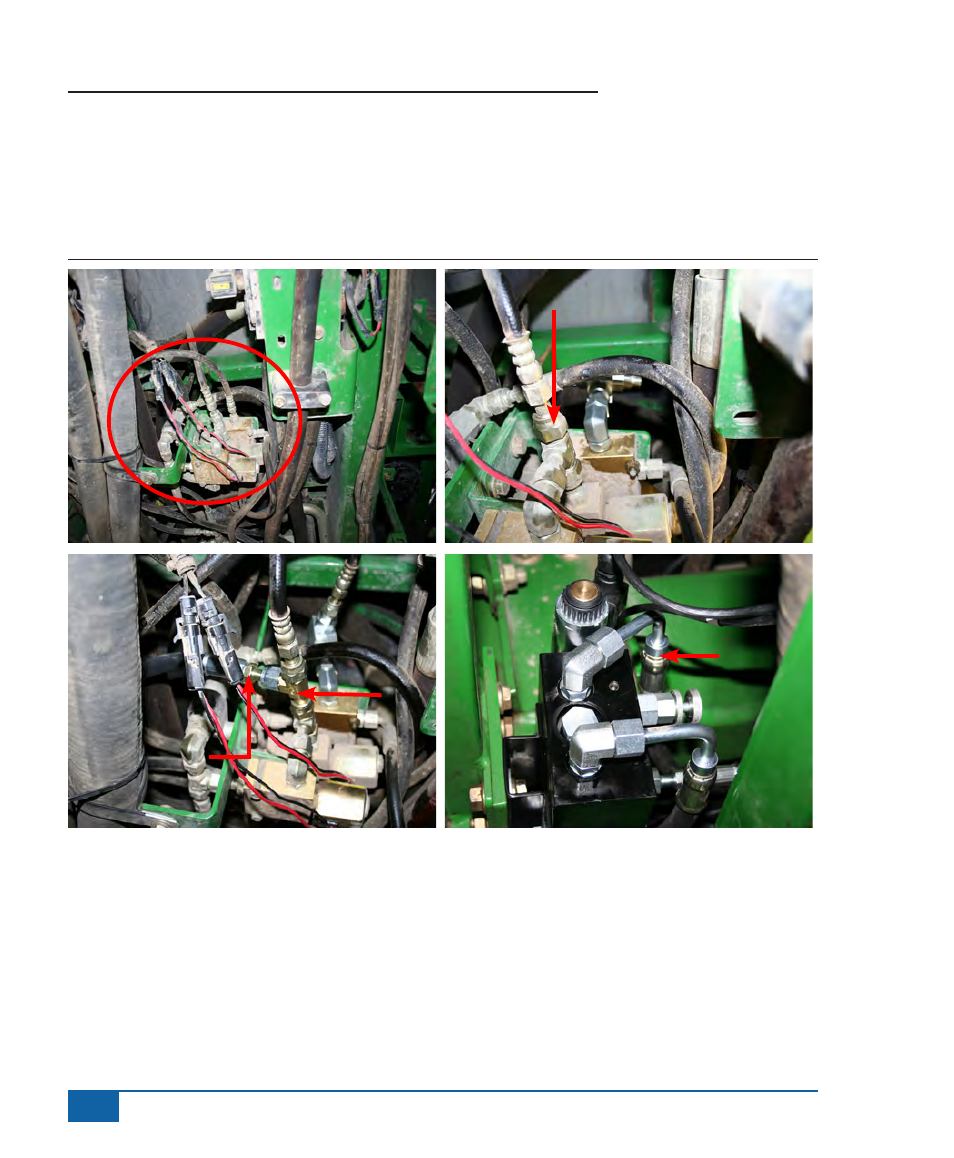

Figure 1-6: Install Pressure Hose and Adapters
Disconnect This Hose
K
P
K
