FieldPilot ®
4. INSTALL TANK HOSE AND ADAPTERS
Locate the Tank port on the boom valve bank on the boom. Disconnect the hose at the T port and install run
tee (P) . Reconnect the original hose to the run of the tee and install adapter (Q) onto the branch of the tee.
Connect hose (L) from adapter (Q) and route it along the left side frame to the T port of the FieldPilot valve.

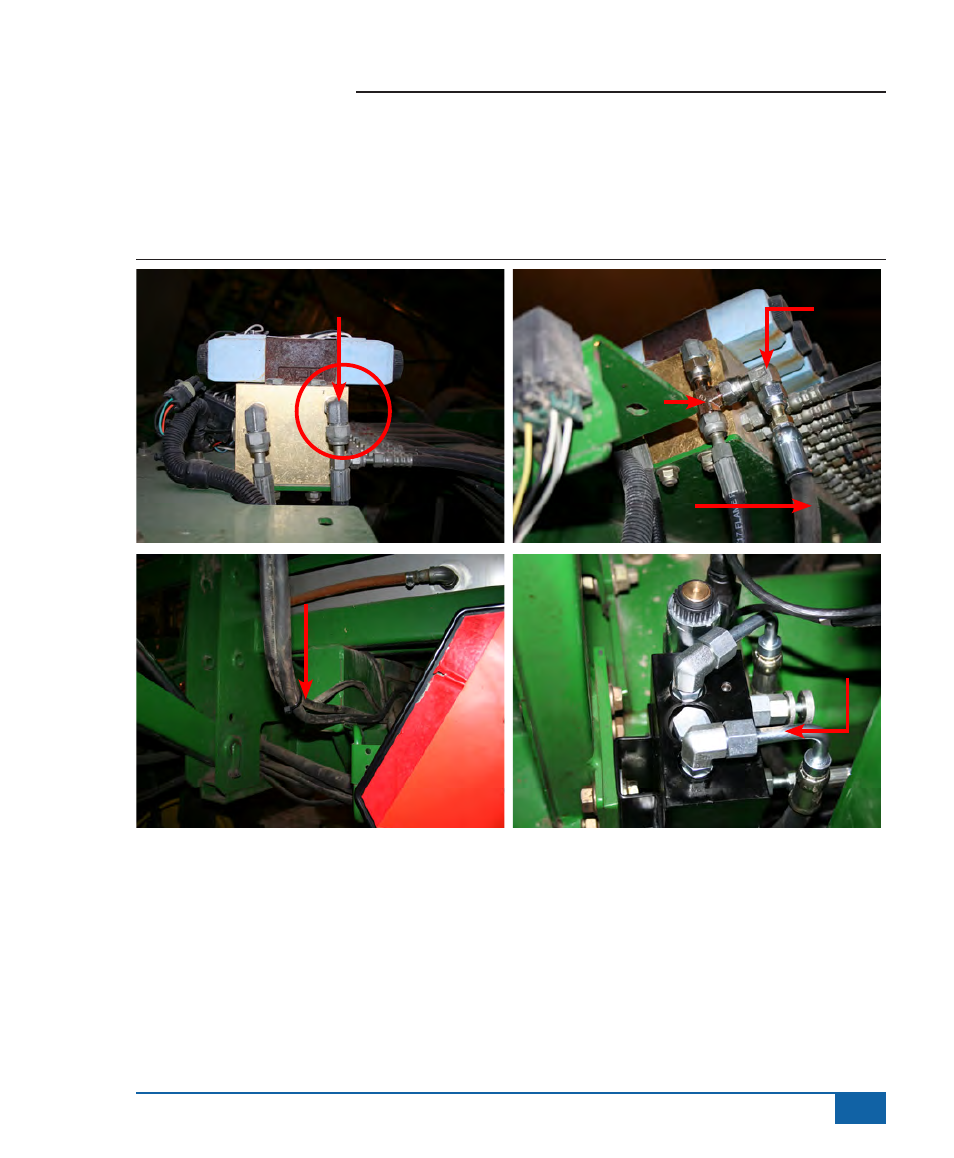

Figure 1-5: Install Tank Hose and Adapters
Disconnect Here
Q
P
L
L
L
