FieldPilot ®
2. install the FieldPilOt ValVe Bracket
The valve bracket will mount to the left fender of the vehicle. Drill a 13/32” hole 21” from outer edge of fender
and centered top to bottom. Mount the (I) bracket to the fender using (1) (G) 3/8” bolt, (1) (H) 3/8 nut and
(2) (B) 3/8” washers.

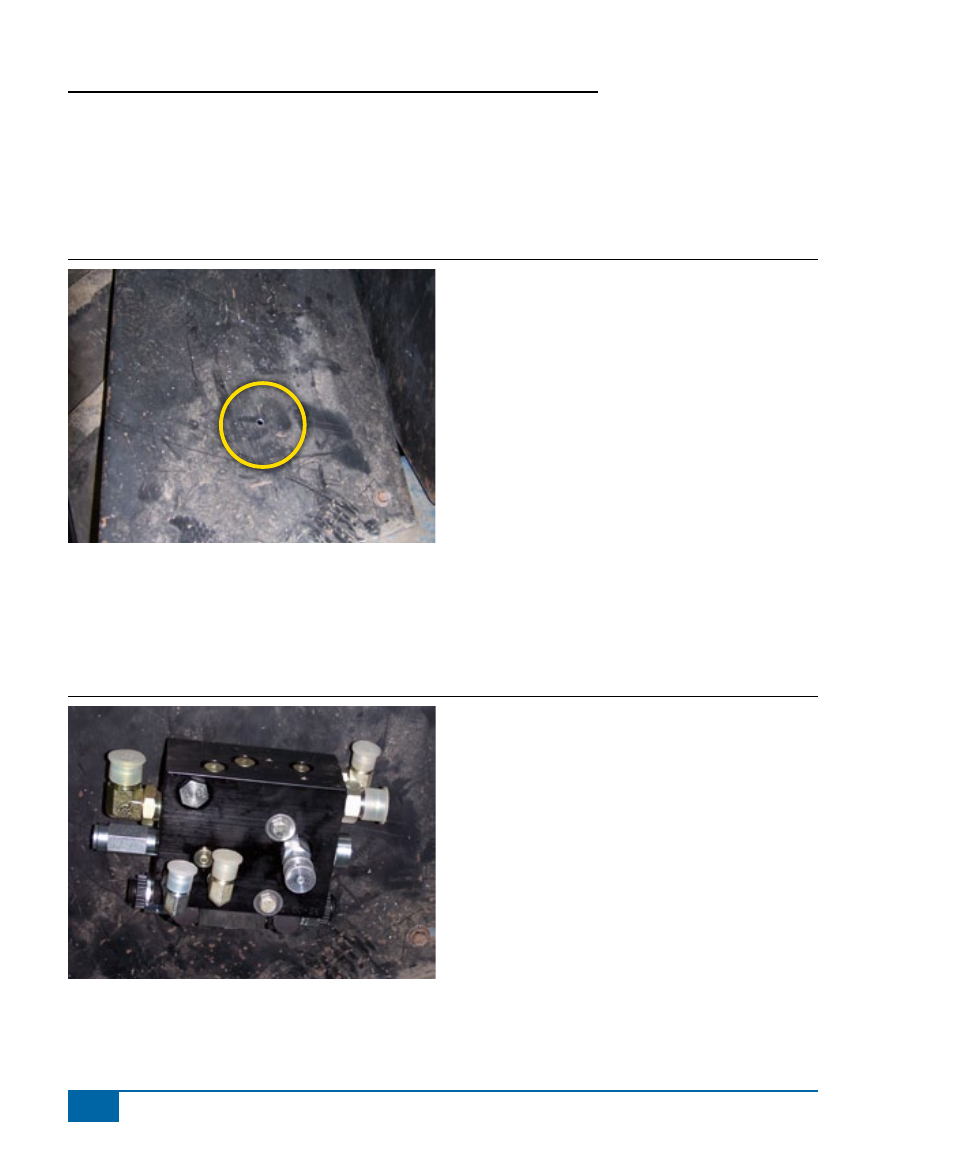

Figure 1-5: Install Mounting Bracket for FieldPilot Valve
3. MOunt the FieldPilOt ValVe
Mount the FieldPilot Valve to the (I) bracket using parts (B, F, & H) . Mount it so the P and T ports are
pointed at the cab and the EF port is pointed away from cab. The solenoids should be facing the back of the
tractor.
Figure 1-6: Mount the FieldPilot Valve
