www.teejet.com

10

FieldPilot

®

4. Mount the FieldPilot ValVe

Mount the FieldPilot Valve to the

(K)

bracket using parts

(B, G & I)

. Mount it so the P and T ports are

pointed toward the cab and the A and B ports point away from cab. The solenoids should be on the bottom.

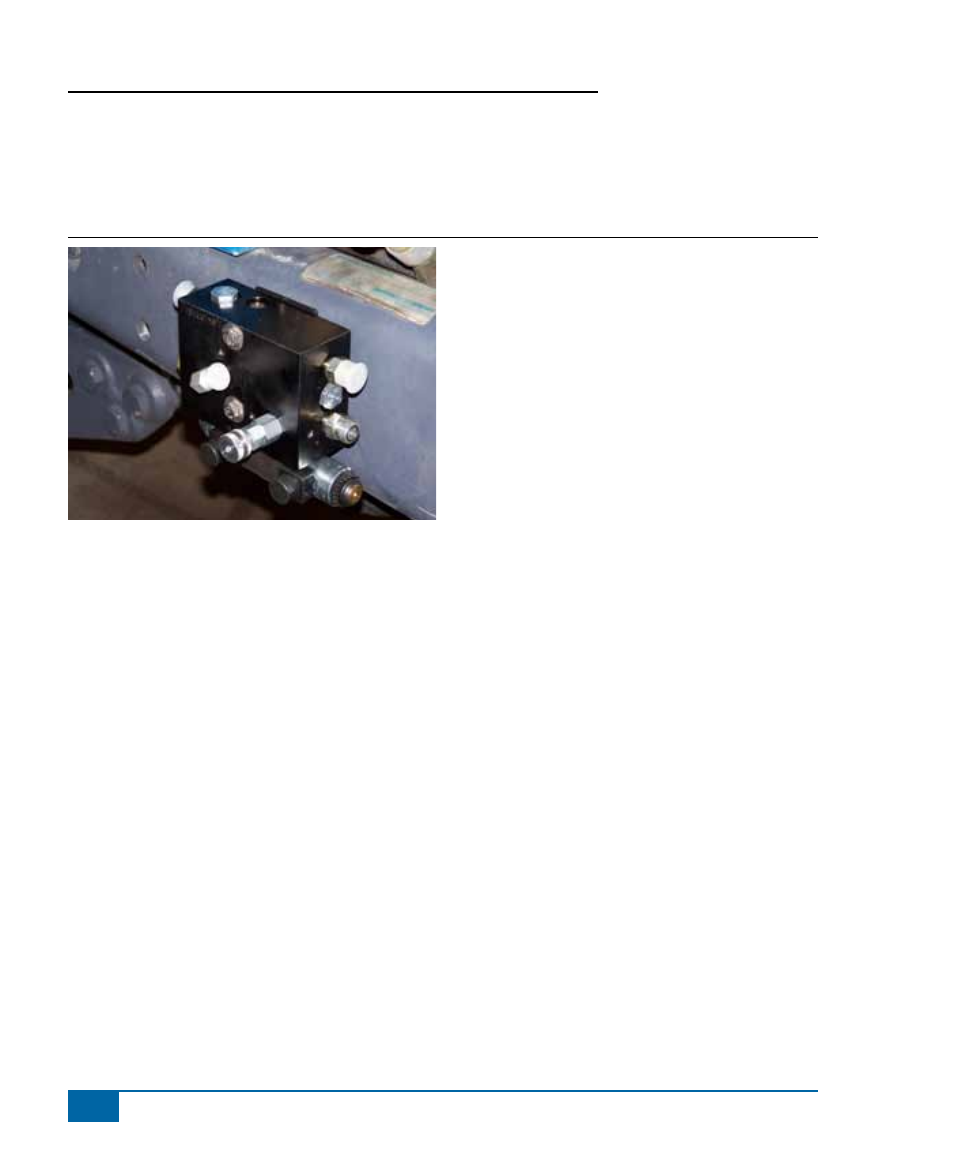

Figure 1-5: Mount the FieldPilot Valve

5. PrePare For connection to orBital ValVe

The connections to the orbital are done under the floor panel in the cab. Remove the rubber floor mat.

Remove the metal cover. For ease of visual identification, colored tape was used.
Blue = Left

Black = Right

Green = Tank

White = Load Sense

Red = Pressure.
Disconnect the pressure line and attach the

(U)

Run Tee to the steel line. Reconnect the pressure hose

to the end of the run. The branch of the tee should point to the left and down. Repeat the above steps

for the Tank line. It also uses a

(U)

Run Tee. Disconnect the Load Sense line. Connect the hose end to

the Branch of the Shuttle Tee. Connect one end of

(L)

hose to the adapter from the run of the Shuttle Tee

pointing to the rear of the tractor and the other end of

(L)

hose to the steel line.
