8
FieldPilot ®
iNstAllAtioN
If there are questions concerning the installation of the FieldPilot system on this vehicle, or due to
the changes in component specifications the parts supplied in the kit are not exactly as presented
in this document, please contact your dealer or TeeJet Customer service representative for
clarification before installation. TeeJet Technologies is not responsible for misuse or incorrect installation of
the system.
NOTE: BE VERY CAREFUL TO ABSOLUTELY SECURE ALL CABLES AND HOSES SO THAT THEY
DON’T INTERFERE WITH THE MANY MOVING PARTS OF THE MACHINE!
The Ford NH 8770 has a closed center steering with steel lines coming to and from the Orbital Valve. The
Pressure and Tank lines from the FieldPilot Valve ports will tee with the orbital under the Cab floor panel.
The LS line from the FieldPilot valve will Tee with the Orbital LS via shuttle tee where the branch of the tee
returns to the Priority Flow Control valve on the tractor. Again, this is under the cab floor panel. The A and B
lines from the FieldPilot valve will tee in the front of the tractor at the steering cylinders. The connections will
be as follows:
FieldPilot – Orbital
T – T
P – P
A – L
B – R
LS – LS
1. PrePare the FieldPilot ValVe
Install adapters (S) in the B and LS ports. Install adapters (T) in the A, P, and T ports. Attach fitting (X) to
the adapter (T) in the A port.

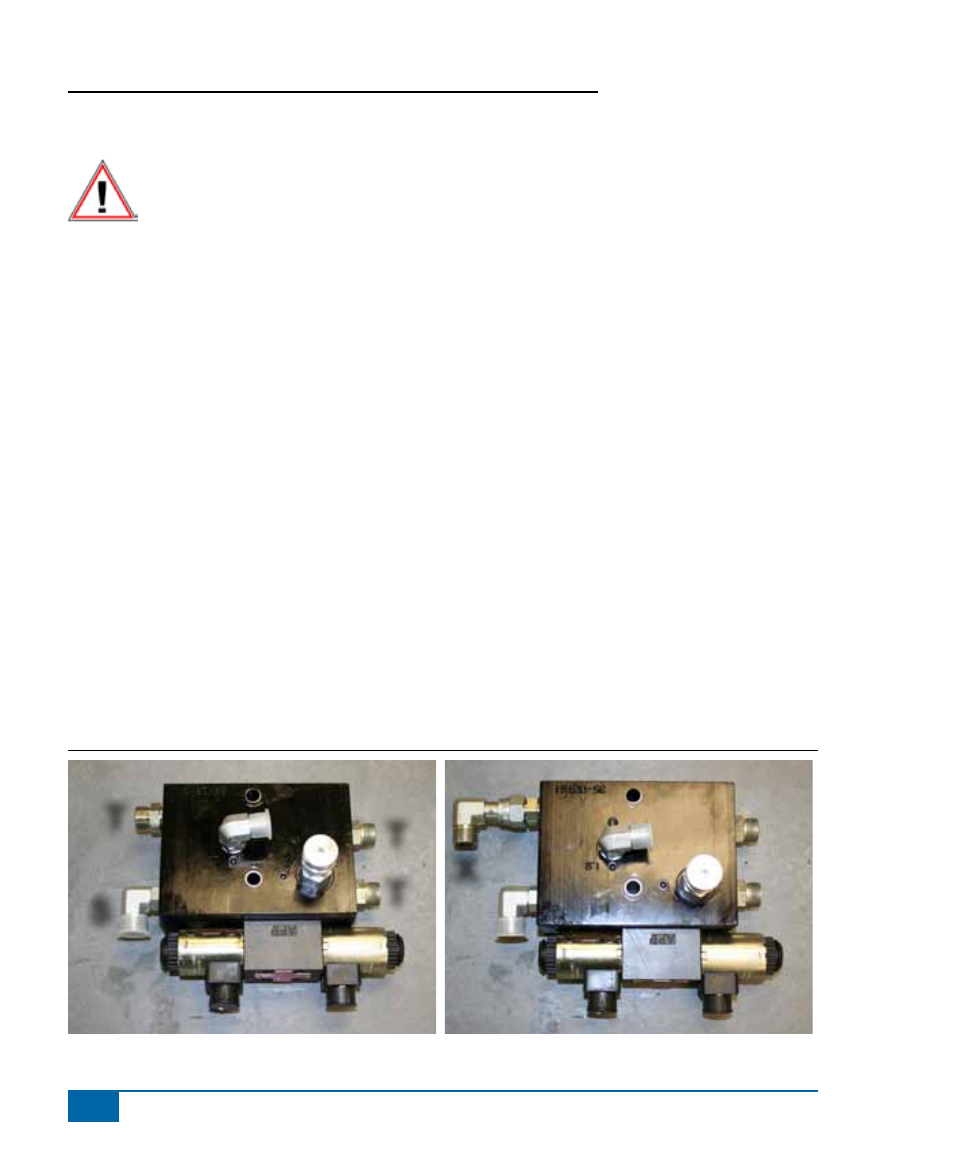

Figure 1-2: Prepare the FieldPilot Valve
T
T
T S
S
X
