Page 20: Installation of engage/disengage switch
www.teejet.com
18
FieldPilot
®
11. install the ValVe cOntrOl caBle
Connect the valve control cable
(G)
to the FieldPilot valve and route it to the bottom-right-rear of the cab and
into the cab.

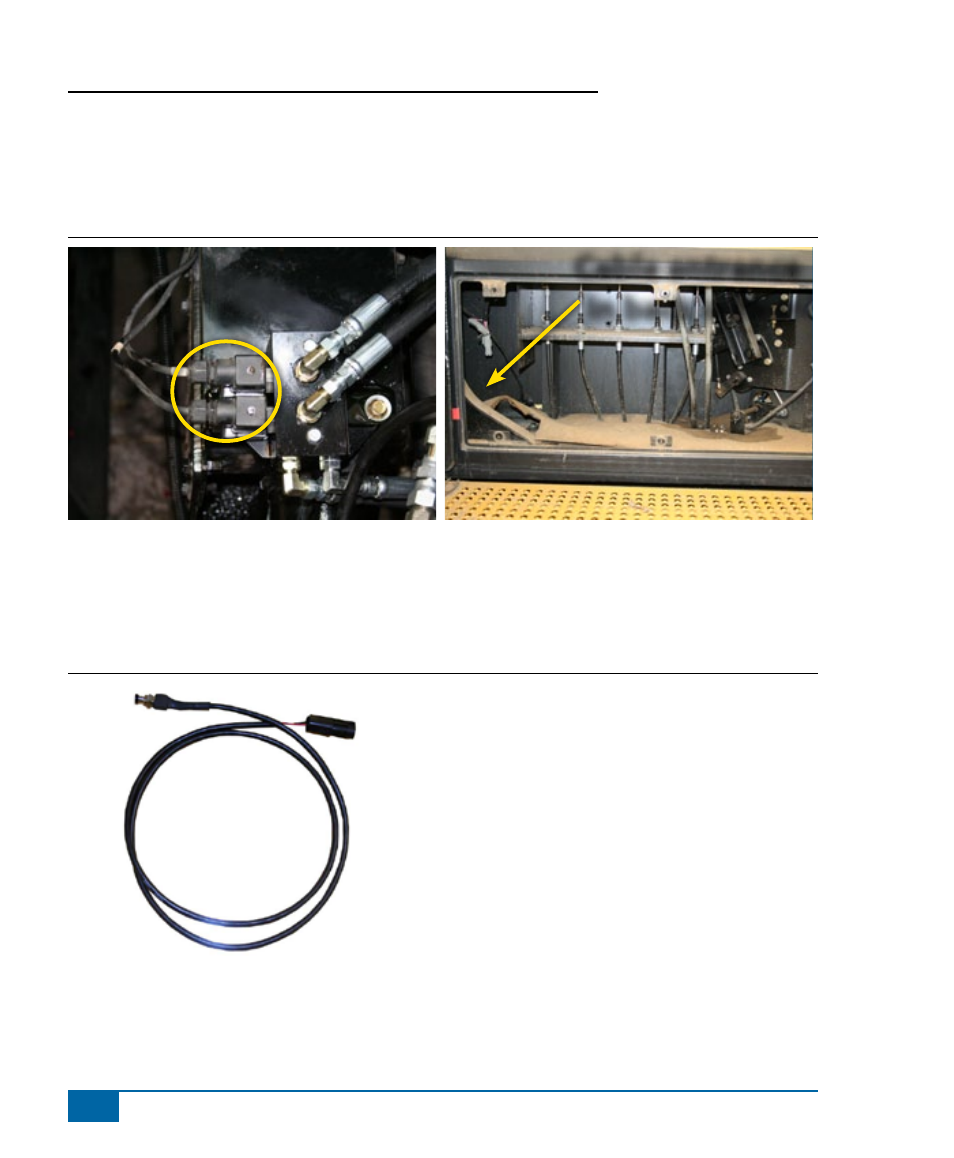

Figure 1-15: Install the Valve Control Cable
12. installatiOn OF engage/disengage switch
Connect item
(A)
to the connector on the SCM harness labeled Remote Engage/Disengage. Install the push
button in a location that is easily accessible during operation of the machine. This switch
(A)
is not required
if the optional foot switch 32-04020 is used.
Figure 1-16: Engage/Disengage Switch
Cable entrance
in back corner
G
