3. MOunt the FieldPilOt ValVe

Using parts

(B, G & H)

, mount the FieldPilot valve

(E)

to the bracket

(H)

.

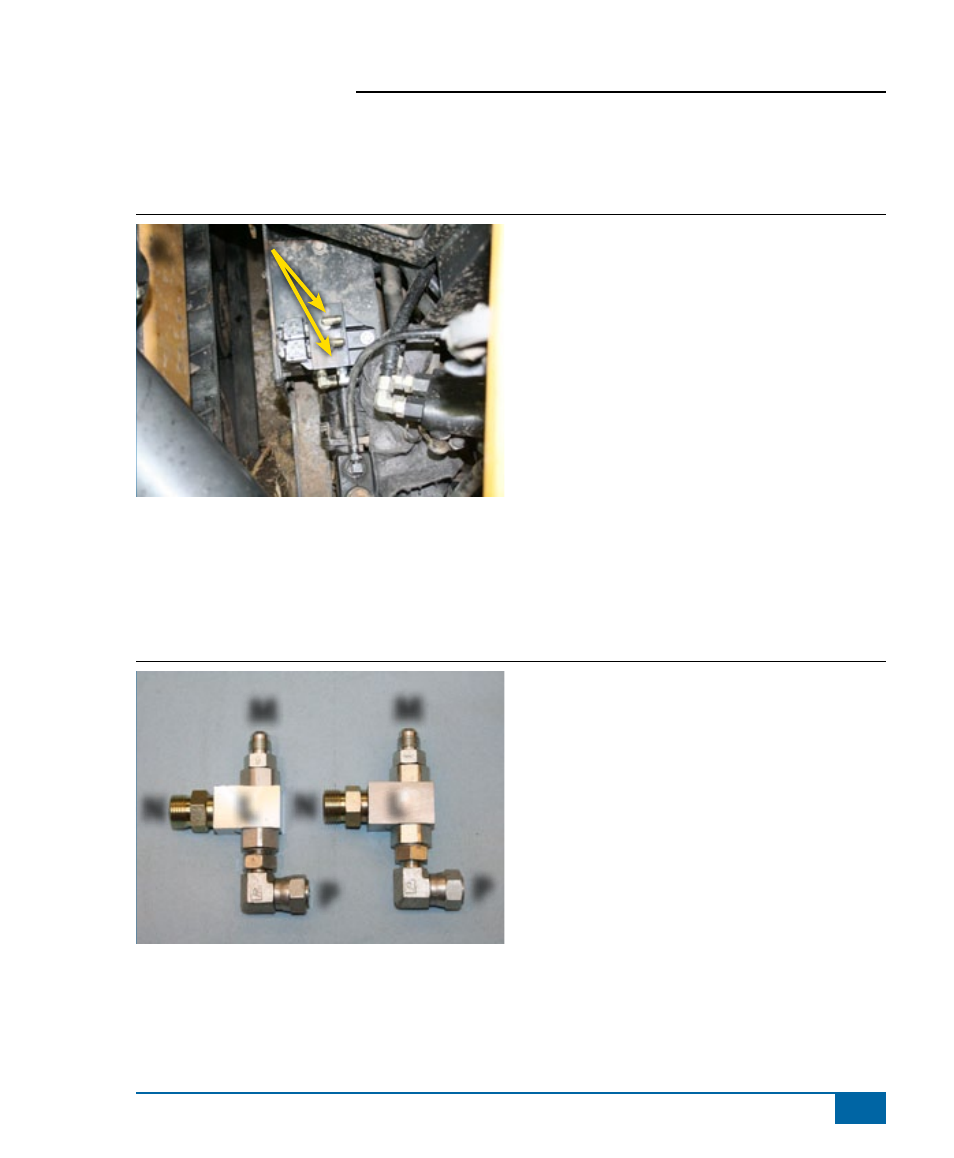

Figure 1-6: Mount the FieldPilot Valve

4. install the shuttle tee

C and D Series

A shuttle tee will be used on each of the steering lines. Using parts

(L, M, N & P)

assemble both shuttle

tees as shown.
Figure 1-7: Install the Shuttle Tee and Adapters

l

M

p

N

l

M

p

N

B, G & H
