FieldPilot ®
8. install the Pressure and tank adaPters
C & D Series
Label and disconnect the Pressure and Tank hoses from the machine’s steering valve. Install run tees (O)
on each port and reconnect the original pressure and tank hoses.
E Series
Label and disconnect the Pressure and Tank hoses from the machine’s steering valve. Install run tees (Q)
on each port and reconnect the original pressure and tank hoses. (E Series will look slightly different than
pictures.)

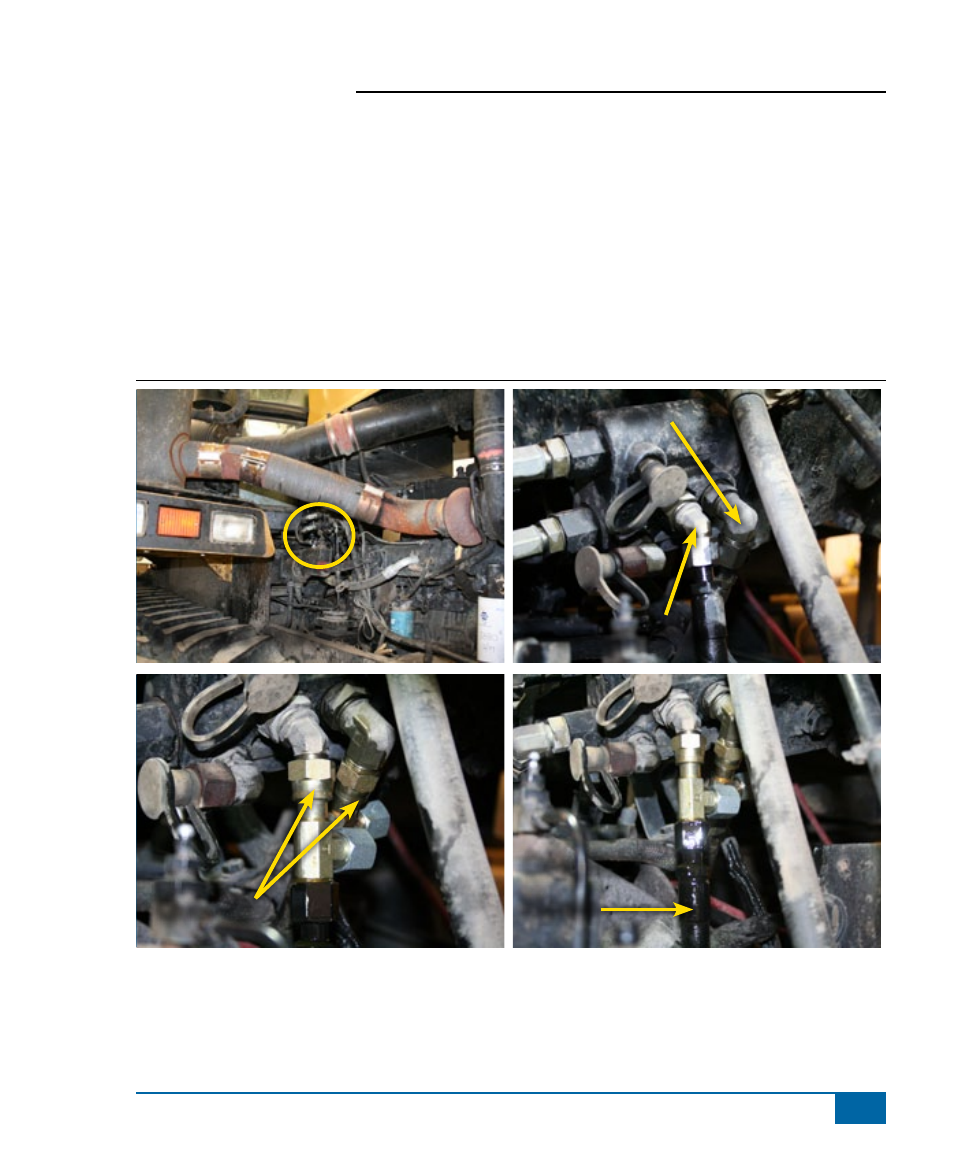

Figure 1-12: Install the Pressure and Tank Adapters
Valve location
tank port
pressure port
original
Hose o or Q
