15
FieldPilot ®
11. install ValVe control caBle
The valve control cable (E) will connect to the solenoids on the FieldPilot valve. Route it into the cab. Use
zip ties to secure it so that it doesn’t interfere with any moving parts.

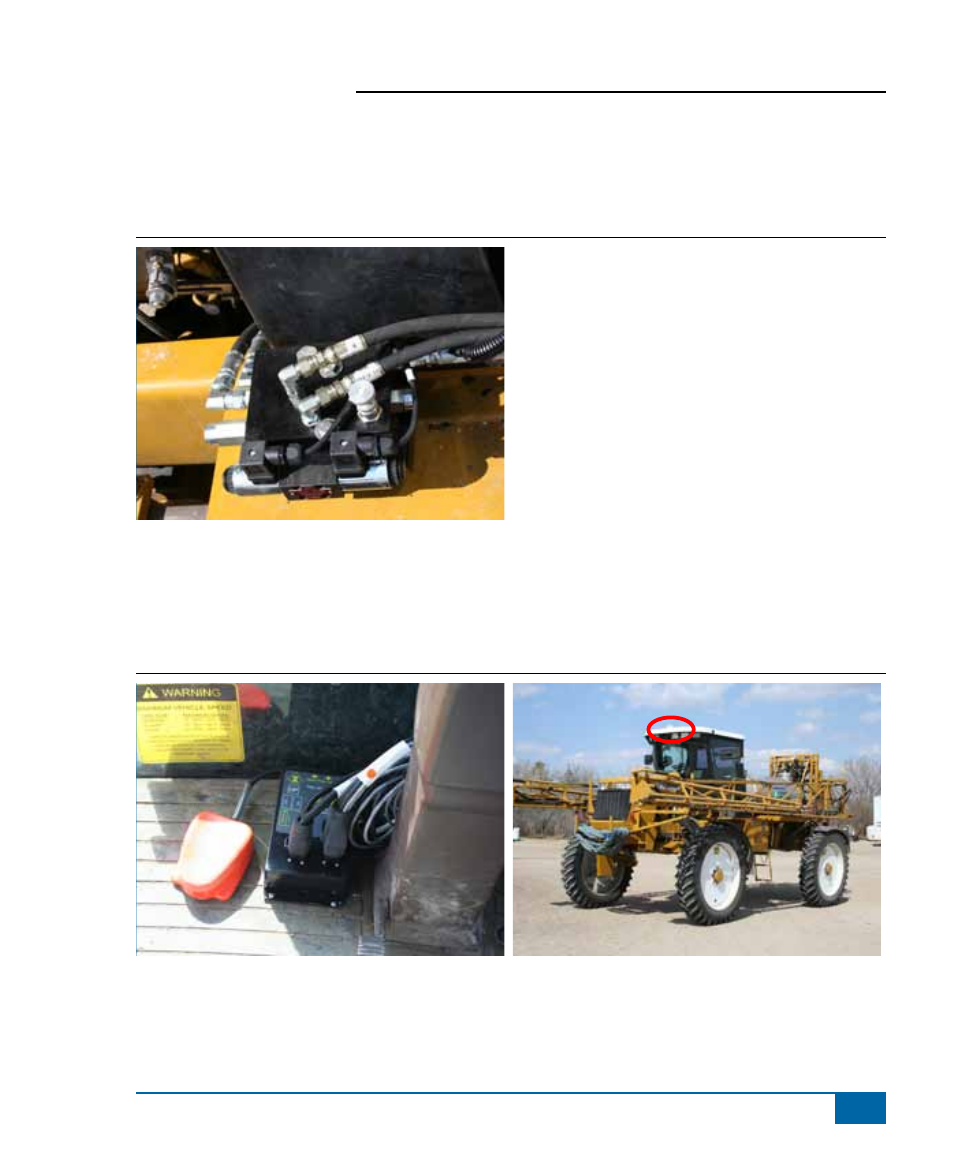

Figure 1-12: Valve Control Cable
12. recoMMended electronics installation
The Steering Control Module (SCM) should be mounted securely to the floor of the cab. The control console
can be mounted to the operator’s preference. The GPS antenna should be mounted as far forward as
possible on top of the cab on a metal surface of at least 4” square.
Figure 1-13: Recommended Electronics Installation
GPs
