FieldPilot
®
4. PrePare to install hoses
Before installing any hoses it is beneficial to disconnect the existing Left and Right steering hoses from the
orbital and tie them aside until later. Be sure to label them before disconnecting.

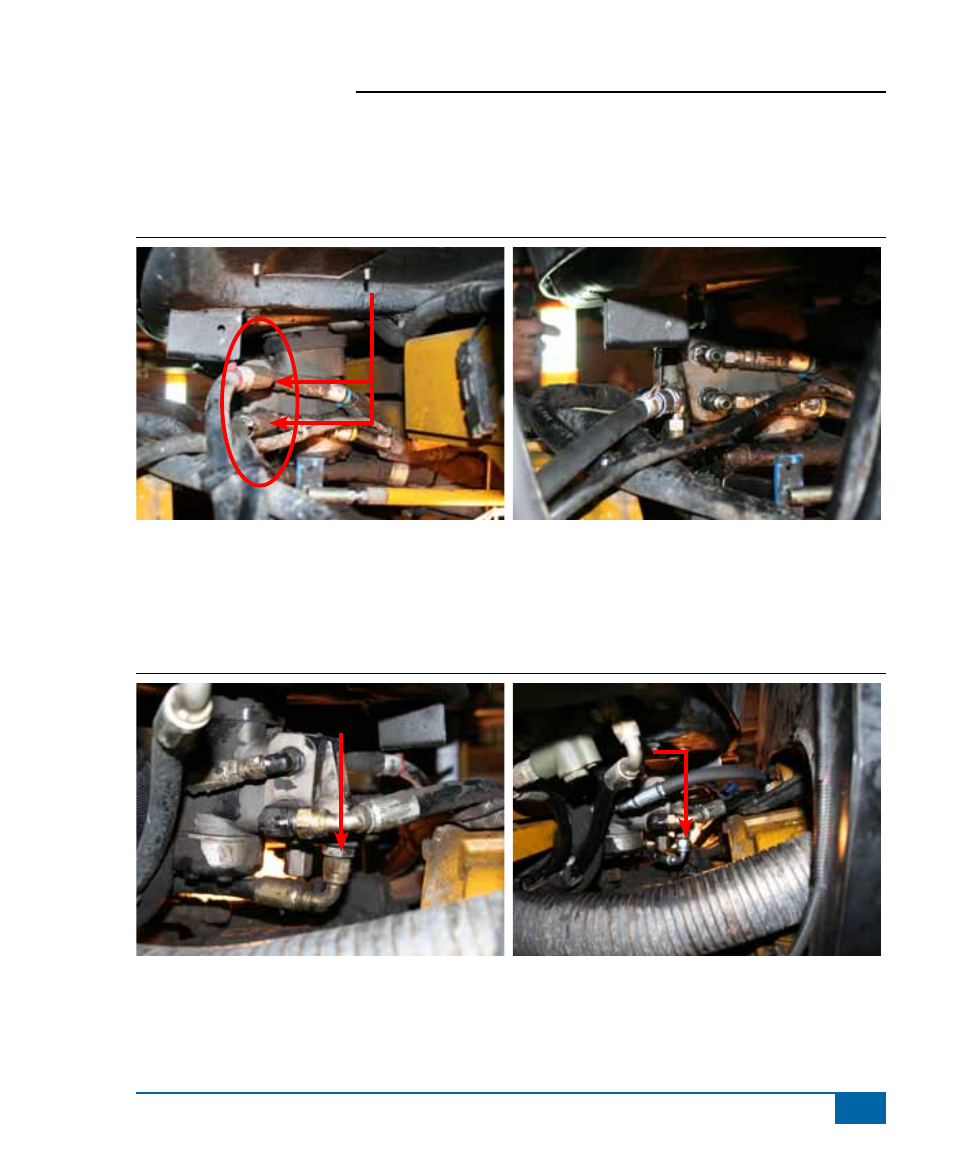

Figure 1-5: Removing Left and Right Steering Hoses
Remove steering Hoses
5. install Pressure hose
The FieldPilot Valve will get its pressure from the EF port on the orbital. Disconnect the hose from the EF
port on the orbital. Attach the 90° end of hose
(J)
to the EF port on the Orbital and route it to the P port of
the FieldPilot Valve.
Figure 1-6: Install Pressure Hose
original eF hose
90 degree end of
Hose K
