www.teejet.com

13

FieldPilot

®

8. install leFt and right steer hoses

The steer hoses will connect to run tees installed at the orbital. In step 4 the left and right steer hoses were

disconnected. Now, install run tees

(M)

on the open ports on the orbital. Connect the 90° end of hoses

(I)

to the branch of the run tees and route the hoses to the A and B ports of the FieldPilot Valve. Reconnect the

original steer hoses to the run of the tees.

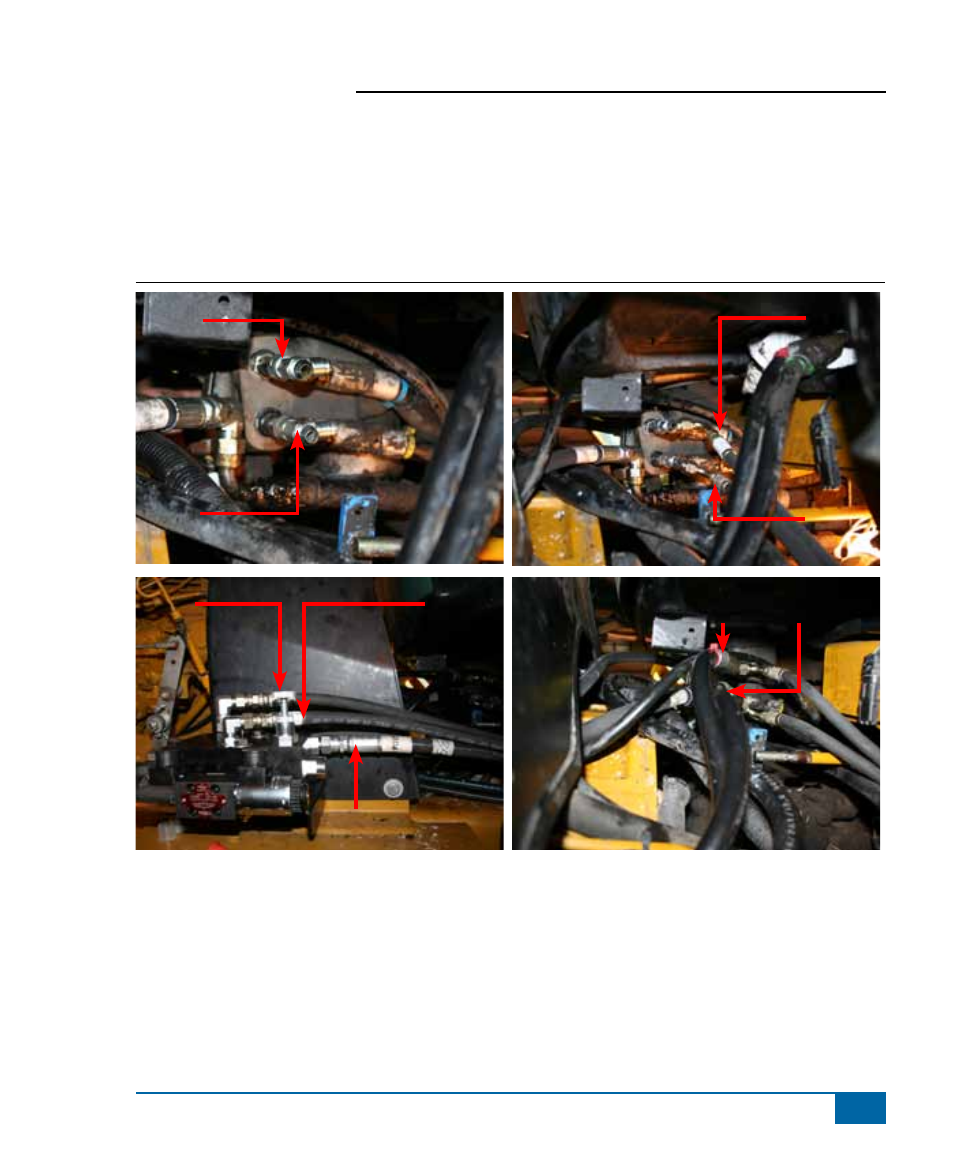

Figure 1-9: Install Left and Right Steer Hoses

M

M

i

i

J

J

Hose K

original steer Hose
