www.teejet.com

14

FieldPilot

®

9. install steering disengage sensor

The steering disengage kit

(S)

is used to automatically disengage FieldPilot when the steering wheel is

turned. The magnets mount on the steering shaft or other rotating part of the steering wheel and the sensor

mounts so that there is a 1/8” clearance between the sensor and magnet.

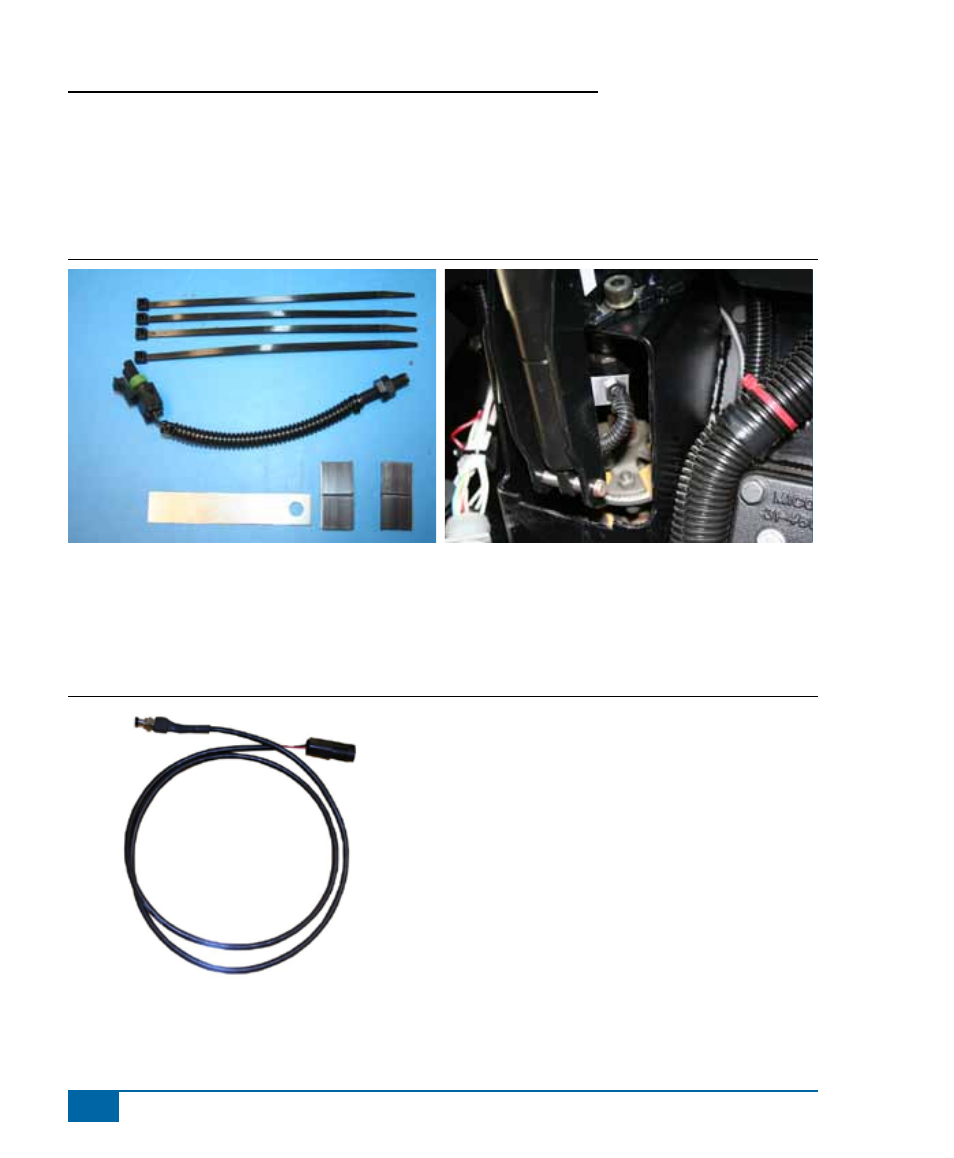

Figure 1-10: Steering Disengage Sensor

s

10. installation oF engage/disengage switch

Connect item

(A)

to the connector on the SCM harness labeled Remote Engage/Disengage. Install the push

button in a location that is easily accessible during operation of the machine. This switch

(A)

is not required

if the optional foot switch 32-04020 is used.
Figure 1-11: Engage/Disengage Switch
