1.Auto/Manual LEDs
Displays the communication between HarmonyControl
and your harmony processor. On power up, the unit will
search for Auto-compatible units. If your unit is Auto-
compatible, the Auto LED will light after a moment.
2.Tuner Pitch Display
This is primarily used to show tuning when Tuner mode
is active.When Tuner mode is off, the two center LEDs
above the “0 Cents” legend indicate that a chord has
been recognized and sent from the MIDI Out.
3. Note/Scale Display
When the Tuner is on, this shows the closest recognized
note. When the Key function is used, this displays your
current scale variation.
4. LED Bar
Displays active status of the Key,Tuner and On modes.

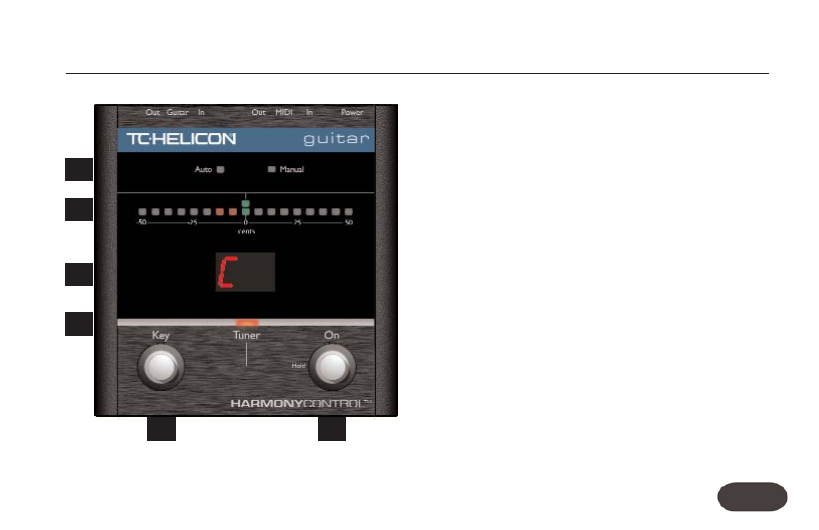

Front & Back Panel Descriptions
