12

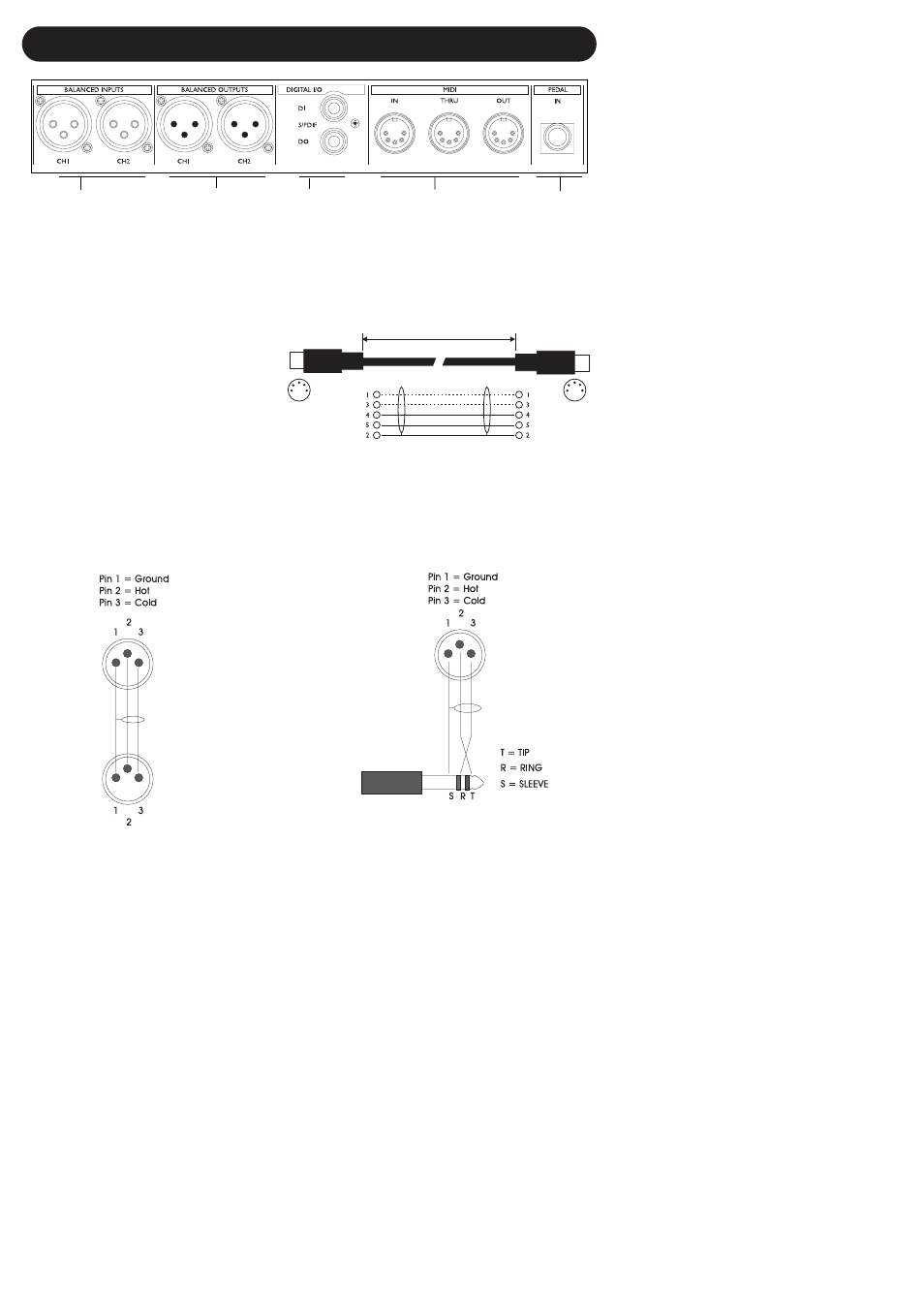

REAR PANEL
Balanced
XLR
Analog
Inputs Balanced
XLR
Analog
Outputs MIDI
In, Out, Thru Footswitch
Jack Digital
S/PDIF
Input/
Output
MIDI Cable
DIN CONNECTOR
5POLE - MALE
45 degrees DIN CONNECTOR
5POLE - MALE
45 degrees
max. 10m
SHIELDED CABLE (3 or 5 wires + screen)
Note!
The analog Input and Output
connectors on the VoiceOne are
balanced XLR jacks. Optimal
performance with balanced equipment
is achieved using balanced cables.
Balanced XLR to
Balanced 1/4” Cable Balanced XLR Cable
- 3 Pin Type
