TC-Helicon VoiceTone C1 Manual - Manual (Page 5)

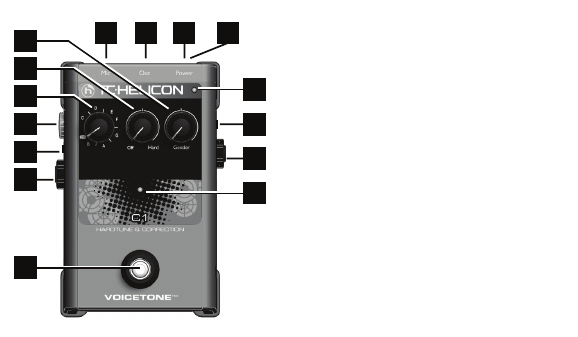

1 - Effect on/off footswitch
2 - Instrument Thru to amp/PA
3 - Instrument ground lift: in=lifted
4 - Mic input level control
5 - Key selector including Chromatic (CH)
6 - Attack speed control
7 - Gender control
8 - Balanced XLR mic input
9 - Balanced XLR mono output
10 - Power in
11 - USB connector to computer
12 - Input level LED; green=signal,red=clip
13 - Effect on/off via optional mic (MP-75): in=on
14 - Guide instrument input jack
15 - Effect active LED indicator
1
2
5
8 9 10 11
12
13 4
3
14
15
6
7
