Vermont Castings, Majestic Products RHEDV Direct Vent Insert
B5 Cast Trim Options
Cast Surround and Flat Face
HECBL
Cast Surround Black
HECBLUE
Cast Surround Blue
HECCG
Cast Surround Charcoal Grey
HECGR
Cast Surround Green
CSSP
Polished Brass Small Trim for
Cast Surround
CSLP
Polished Brass Large Trim for Cast
Surround (to be used with CSSP)
B6 Freestanding Kits
Convert Insert Into A Freestanding Stove
NOTE: 1. Requires Bay Window Face Kit
2. Vent starter kit FSHEDVSK must be in
stalled to use any of the freestanding shells.
FSNVCSKB Classic Black Freestanding Cast Shell
FSNVCSKM Midnight Black Enamel Freestanding
Cast Shell
FSNVCSKG Green Enamel Freestanding Cast Shell
B7 Riser Kits
1. Install the unit according to Homeowner’s Manual.
2. Install the trim according to Installation Instructions.
3. Remove the two (2) screws at the bottom of the
trim.
4. Install the riser at the bottom of the trim. (Fig. 55)
5. Fasten the trim with the same two (2) screws
removed on step 3.
NOTE: The riser kit should only be used with the
RHEBSL & RHEBXL trim.
B
C
A
Trim Kit
Riser Trim
Decorative
FP1276

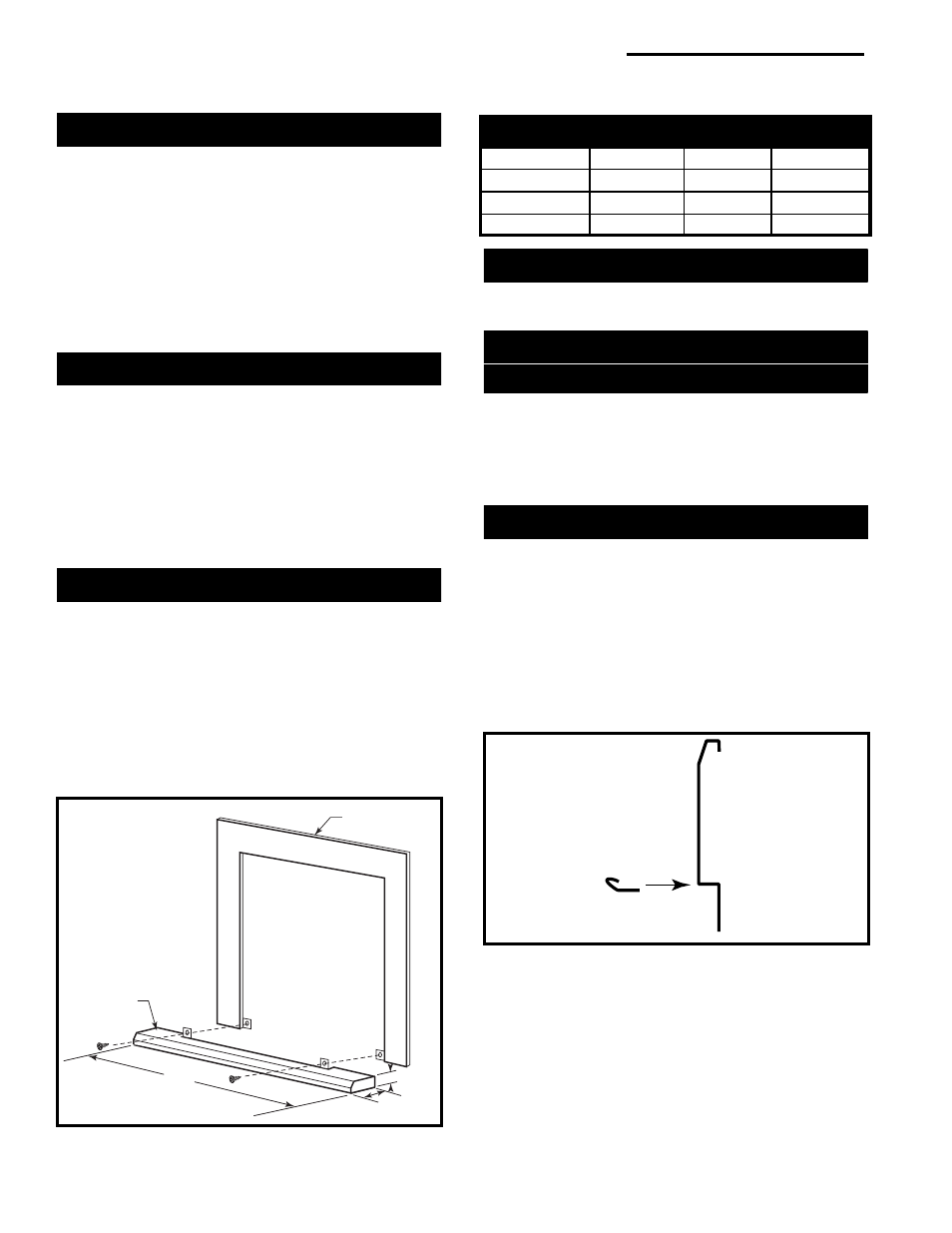

Fig. 55 RHEBSL, RHEBXL trim kit.
Riser Trim Dimensions
Length A
Height B
Depth C
RHER1-Riser 1" 42" (1067mm) 1" (25.6mm) 2.55" (64.8mm)
RHER2-Riser 2" 42" (1067mm) 2" (50.9mm) 2.58" (65.6mm)
RHER5-Riser 5" 42" (1067mm) 5" (127.9mm) 2.58" (65.6mm)
B8 Arch Door Kits
HEADKA
Antique Brass Arch Door
HEADKP
Polished Brass Arch Door
C Trim Options for RHEDV42
C1 RHE42SSP and RHE42LP Trims
For use with RHEDV42
RHE42SSP
Small surround, black with thin polished
brass edge
RHE42LP
Large polished brass edge (to be used
with RHE42SSP)
Trim Assembly
RHE42SSP
1. Install trim channels (left and right sides). Use two
screws to assemble each piece.
2. Slide on the trim top channel and fasten it from the
back side.
3. Install the trim top deflector and use two screws to
fasten it. (Fig. 56)
4. Remove ALL plastic protective covering from brass
trim.
Trim Top Deflector
Trim Frame Top
Section
Side View
FP1261a
Fig. 56 Trim top deflector.
RHE42LP
To install the kit you do not have to remove any piece
of brass, you just add the external pieces.
Remove the frame trim from the unit if it is already
installed.
